Bosch Rexroth R911424148

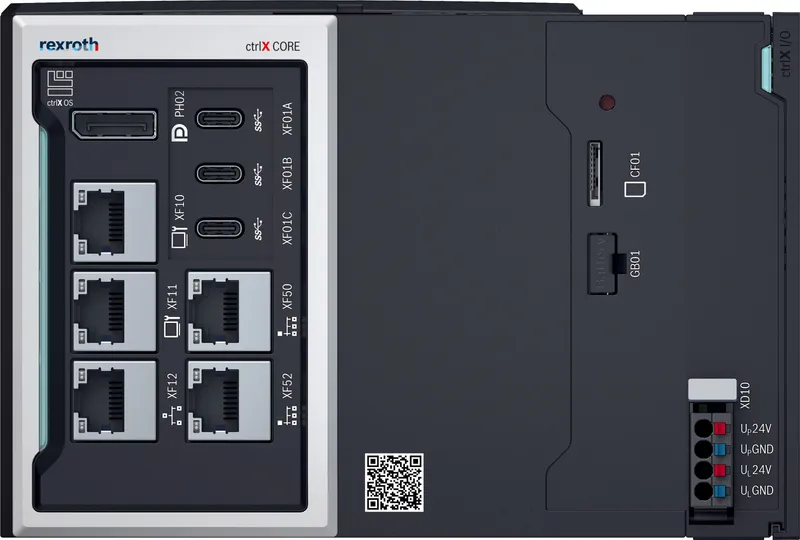

CONTROL COREX-M-X5-21-BNNN-21.01-02RS-NN-NN

MPN: R911424148
Category: ctrlX COREplus X5 modular control

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R911424148?

The ctrlX COREplus X5 offers an optimum price-performance ratio.

The main features are:

- Intel Atom X6425RE with 4 cores

- Maintenance-free due to fanless cooling

- 16GB eMMc memory and 8GB RAM

- 2Mbyte retain memory for saving persistent application data

- Modularly expandable with function interfaces

- Display port

Specifications

Functions ctrlX CORE	ctrlX OS License - Bosch Rexroth - Runtime License
Processor	Intel ATOM X6425RE Quad Core
Width [mm]	160
Height [mm]	107.5
Depth [mm]	87
International protection code	IP20
Protection class	III
Mass memory	16 GB eMMc
RAM	8 GB
Type of battery	CR1025
Vibration resistance	Oscillations, sinusoidal in all three axes 5 Hz - 8.4 Hz with 3.5 mm amplitude 8.4 Hz -150 Hz with 1 g peak acceleration
Shock test	Shock stress: Shock resistance in all three axes, 11 ms semi-sinusoidal 15 g
Maximum permitted voltage range [V DC]	19.2-30
Broadband noise	20-500 Hz with 1.22 g RMS (‪Root-Mean-Square‬), 30 min in all three axes
Extension option 1	without extension
Extension option 2	without extension
Extension option 3	without extension
Type of interface	1 x slot for SD card; 1 × display port; 3 × USB host, TYPE C (USB3.1), maximum cable length of 3 m; Engineering port (RJ45) 5 × Ethernet connection (10 Mbit, 100 Mbit, 1 Gbit)
Rated voltage DC [V]	24
COREX design	Modular
Remanent memory	2 MB
Power input UP	Typ. 0.12 W (without I/O modules), 192 W max., at UP = 24 V
Power input UL	31.2 W
Current requirement UL	1.3 A
Permissible air humidity (during operation) [%]	5-85
Permissible air humidity (storage) [%]	5-85
Permissible air humidity (transport) [%]	5-85
Ambient temperature (storage and transport) [°C]	-40-70
Ambient temperature during operation	2,000 m to 3,000 m: -25 °C to +50 °C; 3,000 m to 4,000 m: -25 °C to +45 °C; 4,000 m to 5,000 m: -25 °C to +40 °C; Up to 2,000 m: -25 °C to +55 °C
Maximum operating altitude [m]	5000
Weight [kg]	1.43
