Bosch Rexroth R911423344

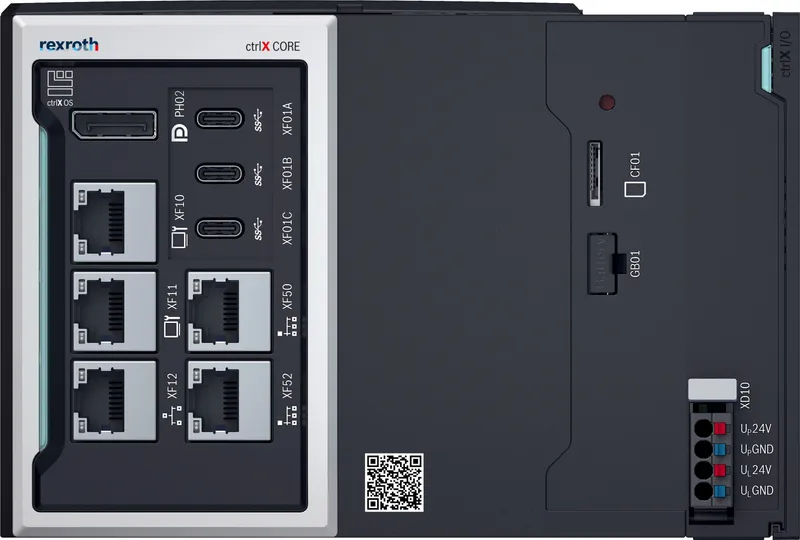

CONTROL COREX-M-X5-21-B2NN-21.01-02RS-NN-NN

MPN: R911423344
Category: ctrlX COREplus X5 modular control

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R911423344?

The ctrlX COREplus X5 industrial controller is based on the latest generation Intel Atom processor. As an addition between the ctrlX COREplus X3 with ARM processor and the powerful ctrlX COREplus X7 with Intel i7 processor, the ctrlX COREplus X5 offers an optimal price-performance ratio.

The main features are:

- Intel Atom X6425RE with 4 cores

- Maintenance-free due to fanless cooling

- 16GB eMMc memory and 8GB RAM

- 2Mbyte retain memory for saving persistent application data

- Modular expandable with function interfaces

- Display port

The ctrlX COREplus X5 has a robust, fanless and compact design. With extensive interfaces such as five independent 1 Gbit Ethernet ports, three USB 3.0 ports, a DP port and a µSD card slot, the controller can be flexibly integrated and expanded.

The flexibility and computing power of an industrial PC are available in a compact embedded controller. The ctrlX COREplus X5 is therefore the perfect platform for factory automation, motion applications, automated guided vehicles or Industry 4.0 and IoT applications.

Translated with DeepL.com (free version)

Specifications

Functions ctrlX CORE	ctrlX OS License - Bosch Rexroth - Runtime License
Processor	Intel ATOM X6425RE Quad Core
Width [mm]	180
Height [mm]	107.5
Depth [mm]	87
International protection code	IP20
Protection class	III
Mass memory	16 GB eMMc
RAM	8 GB
Type of battery	CR1025
Vibration resistance	Oscillations, sinusoidal in all three axes 5 Hz - 8.4 Hz with 3.5 mm amplitude 8.4 Hz -150 Hz with 1 g peak acceleration
Shock test	Shock stress: Shock resistance in all three axes, 11 ms semi-sinusoidal 15 g
Maximum permitted voltage range [V DC]	19.2-30
Broadband noise	20-500 Hz with 1.22 g RMS (‪Root-Mean-Square‬), 30 min in all three axes
Extension option 1	MultiEthernet M/S 4xRJ45
Extension option 2	without extension
Extension option 3	without extension
Type of interface	1 x slot for SD card; 1 × display port; 3 × USB host, TYPE C (USB3.1), maximum cable length of 3 m; Engineering port (RJ45) 5 × Ethernet connection (10 Mbit, 100 Mbit, 1 Gbit)
Rated voltage DC [V]	24
COREX design	Modular
Remanent memory	2 MB
Power input UP	Typ. 0.12 W (without I/O modules), 192 W max., at UP = 24 V
Power input UL	31.2 W
Current requirement UL	1.3 A
Permissible air humidity (during operation) [%]	5-85
Permissible air humidity (storage) [%]	5-85
Permissible air humidity (transport) [%]	5-85
Ambient temperature (storage and transport) [°C]	-40-70
Ambient temperature during operation	2,000 m to 3,000 m: -25 °C to +50 °C; 3,000 m to 4,000 m: -25 °C to +45 °C; 4,000 m to 5,000 m: -25 °C to +40 °C; Up to 2,000 m: -25 °C to +55 °C
Maximum operating altitude [m]	5000
Weight [kg]	1.53
