Bosch Rexroth R911404284

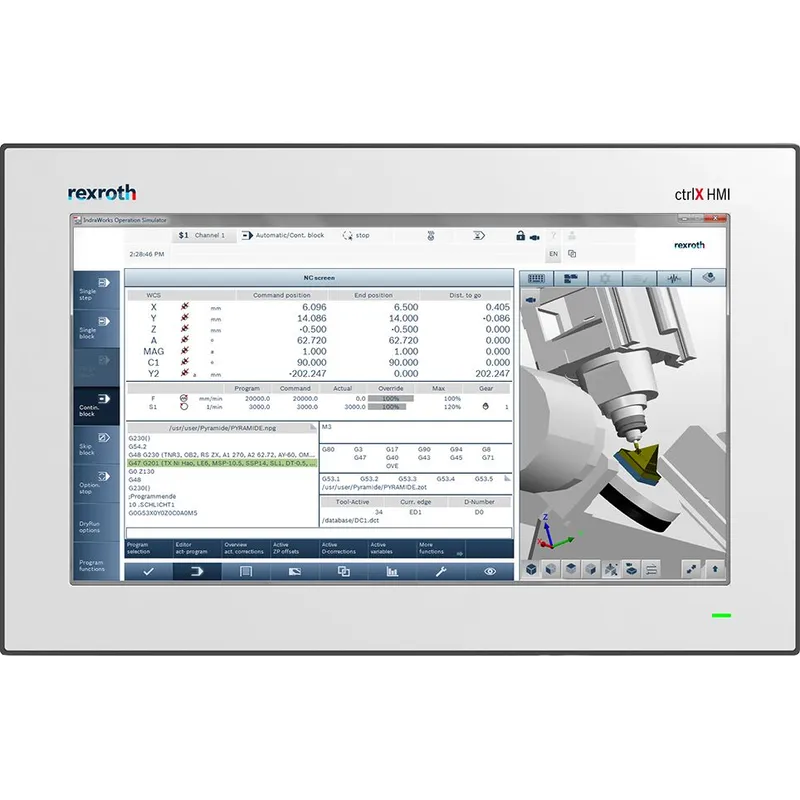

CONTROL PANEL VR3112.1-1A1-AA-N0N-NN-D1-NNNNNNNNNNNN-H
- MPN
- R911404284
- Category
- ctrlX HMI VR3 Mid Range
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R911404284?
The Panel PC product line combines the features of the Box PC and remote displays and terminals into a compact PC solution. The extremely versatile display format scalability, in addition to a wide range of expansion options and standard interfaces make the Panel PC the ideal platform solution for all HMI-based applications.
CPU: Intel ATOM E3940
Extension slots: 1 x Mini PCIe
Multi-touch gesture control
Horizontal and vertical assembly
Operating system: Windows 10 IoT Enterprise
Upgrade options via extension slots
Specifications
Specifications
| Screen size | 12" display / 16:9 |
| Processor | Intel ATOM E3940 1.6 GHz |
| Width [mm] | 329 |
| Height [mm] | 231 |
| Depth [mm] | 75 |
| Orientation | Horizontal |
| International protection code | Front IP66/ back IP20 |
| Mass memory | 1x min. 32GB SSD |
| RAM | 8 GB |
| Supply voltage | 24 V DC |
| Type of interface | 2 x USB 2.0; 2 x USB 3.0 |
| Display resolution | 1280 x 800 Pixel |
| Operating system | Windows 10 IoT 2019 |
| PCI/PCIe slots | 1x Full-size mPCIe |
| Safety | TPM 2.0 |
| Permissible air humidity (storage) [%] | 5-85 |
| Permissible air humidity (transport) [%] | 5-85 |
| Ambient temperature (storage and transport) [°C] | -20-60 |
| Ambient temperature (during operation) [°C] | 0-55 |
| Weight [kg] | 6.5 |
