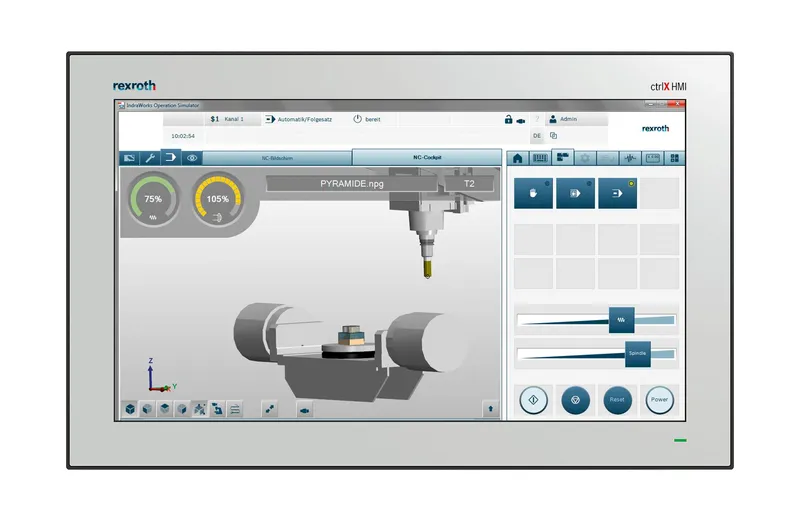

CONTROL PANEL VR4115.1-1A1-AA-000-NN-C1-NNNNNNNNNNNN-H
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ctrlX HMI VR4 Hight End |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R911404278 be shipped?
R911404278 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R911404278 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R911404278 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911404278, subject to availability and destination.
The Panel PC product line combines the features of the Box PC and remote displays and terminals into a compact PC solution. The extremely versatile display format scalability, in addition to a wide range of expansion options and standard interfaces make the Panel PC the ideal platform solution for all HMI-based applications.
CPU: Intel Core i3/i5/i7
Extension slots: 2 x mini PCIe, 1 x half size PCIe
Multi-touch gesture control
Horizontal and vertical assembly
Operating system: Windows 10 IoT Enterprise
Upgrade options via extension slots
Specifications
Specifications
| Screen size | 15.6" display / 16:9 |
| Processor | Intel CoreTM I3 6100U 2.3 GHz |
| Width [mm] | 420 |
| Height [mm] | 269 |
| Depth [mm] | 108 |
| International protection code | IP66 |
| Mass memory | 1x min. 64GB SSD |
| RAM | 8 GB |
| Type of interface | 2 x USB 2.0; 2 x USB 3.0 |
| Display resolution | 1366 x 768 Pixel |
| Operating system | Windows 10 IoT 2019 |
| Safety | TPM 2.0 |
| Permissible air humidity (storage) [%] | 5-85 |
| Permissible air humidity (transport) [%] | 5-85 |
| Ambient temperature (storage and transport) [°C] | -20-60 |
| Ambient temperature (during operation) [°C] | 0-55 |
| Weight [kg] | 10 |
More Bosch Rexroth parts
Available on requestCONTROL/DISPLAY UNIT DE0015.1-11-AAN-AAAvailable on requestCONTROL/DISPLAY UNIT DE0021.1-11-AAN-AA
Available on requestHOLDER VAS09.1-001-NNN-NN
Available on requestHOLDER VAS09.1-002-NNN-NN
Available on requestCONTROL PANEL VR3112.1-1A1-AA-N0N-NN-D1-NNNNNNNNNNNN-HAvailable on requestSERVOMOTOR MAD160C-0050-SA-C0-BP0-05-V1

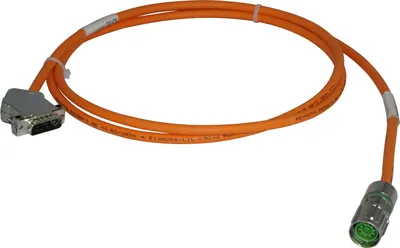

Available on requestENCODER CABLE RKG0063/004,5 (RGS1781-REG0012-RGS1782)Available on requestSERVOMOTOR MAD130C-0100-SA-M2-AH0-05-N1
