Bosch Rexroth R911175243

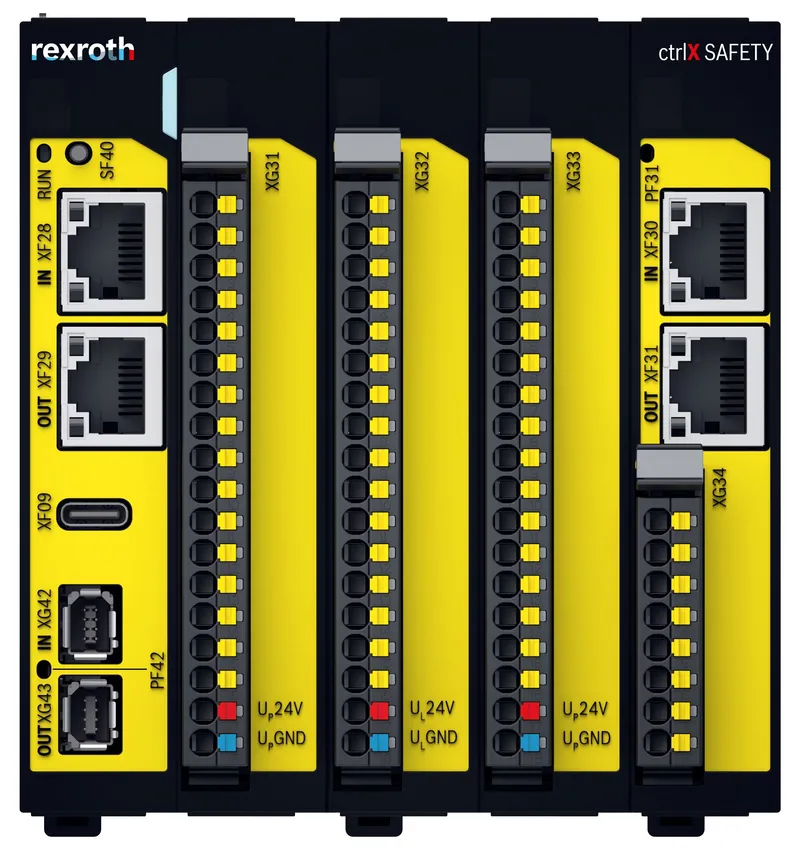

CONTROL SAFEX-C.15-1121-2N.01-NN-NN

MPN: R911175243
Category: ctrlX SAFETY Controller

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R911175243?

ctrlX SAFETY – SAFEX-C.15 – Compact safety controller (32 inputs, 20 outputs, 2 relay outputs) optimized for the smallest installation space in the control cabinet, compact machinery by rapid response via local I/O with reliable control of ctrlX DRIVE via ctrlX SAFETYlink, safe integration into any EtherCAT network (FSoE-Master and slave) as well as a second Ethernet interface into more safe Ethernet-based field buses (slave)

Specifications

Number of channels	32
Width [mm]	61
Height [mm]	105
Depth [mm]	85
International protection code	IP20
Protection class	III
Maximum permitted voltage range [V DC]	18-31.2
Power consumption	Idle: Max. 400 mA (DC 24 V); full load: Max. 400 mA + 12 A (outputs) (DC 24 V)
Type of interface	1 × USB host, TYPE C (USB 2.0); ProfiNet (ProfiSafe); RJ45 (IN XF28, OUT XF29): EtherCAT (CoE, EoE, FSoE), SMMC; RJ45 (OUT XF29/XF31): EtherCAT (CoE, EoE, FSoE), SMMC
Number of pulse sources	2
Pulse length (input test)	Typisch 0,25 ms (max. 0,5 ms)
Pulse length (external, tolerated)	Max. 0,5 ms
Number of safe relay outputs (single-channel)	2 (x2 Kontakte)
Maximum number of FSoE slave devices	Bis zu 32 (max. 256 Bytes pro Richtung); Max. 12 Achsen
Safety integrity level	SIL 3 (IEC 61508)
Proof test interval	20 years= max. service life
PFH / architecture	Category 4
Performance level	PL e (EN ISO 13849-1)
Fuse protection (UP)	12 A (4 A in the cULus scope)
Fuse protection (UL)	5 A
Current requirement UL	400 mA
Current requirement Up	12 A (4 A in the cULus scope)
Nominal voltage (UL/UP)	24 V DC
Permissible air humidity (storage) [%]	8-95
Permissible air humidity (transport) [%]	5-95
Ambient temperature for transport [°C]	-25-70
Ambient temperature storage [°C]	-40-70
Ambient temperature during operation	Up to 3,000 m: 0 °C to +50 °C; for UL compliance 0° to +45°C
Maximum operating altitude [m]	3000
Contamination level	2 according to DIN EN 60664-1:2007
Weight [kg]	0.68
