Bosch Rexroth R911171944

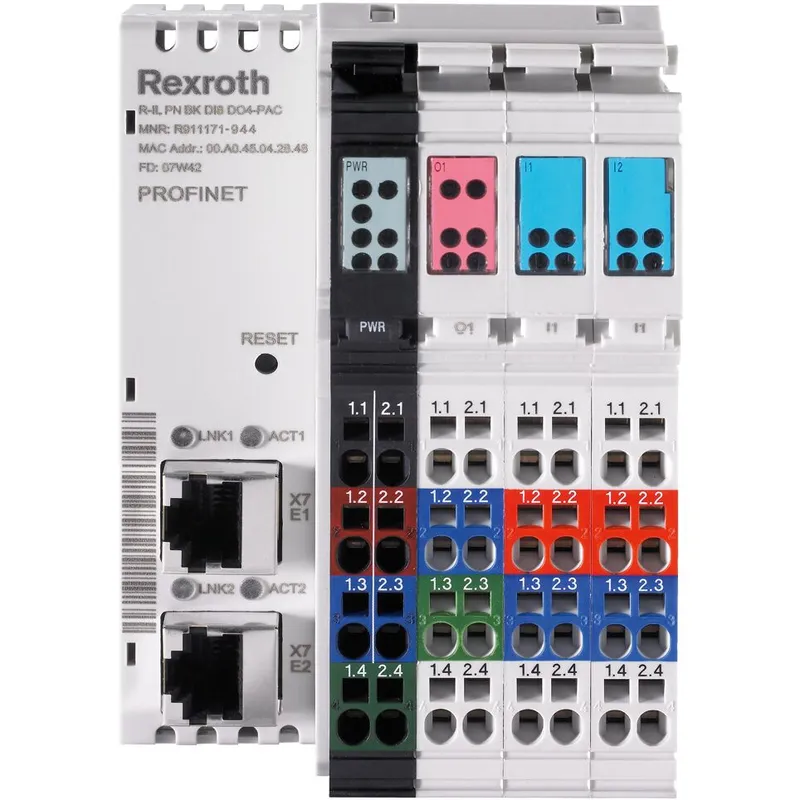

INTERFACE MODULE R-IL PN BK DI8 DO4-PAC

MPN: R911171944
Category: R-IB IL Bus Couplers

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R911171944?

The modular, compact equipment configuration of the I/O systems from Rexroth offers you maximum flexibility for the cost-effective implementation of your individual machine concepts. The I/O modules have robust design and mechanics, are easy to use, have a quick reaction time and are quick to install – both in the control cabinet and in the field. Open communication standards allow you perfect integration of the I/O modules with maximum availability.

Specifications

Communication	Profinet
Connection type	Tension spring connection
Connectivity technology	2-wire, 3-wire technique
Number of channels	12
Width [mm]	80
Height [mm]	120
Depth [mm]	71.5
International protection code	IP20
Short circuit protection, overload protection of the outputs	Free-wheeling circuit in the output driver
Total current [A]	2
Conductor cross-section	AWG: 28 ... 16; Flexible: 0.08-0.5 mm²; rigid: 0.08-0.5 mm²
Permissible air humidity (storage) [%]	10-95
Permissible air humidity (transport) [%]	10-95
Ambient temperature (storage and transport) [°C]	-40-85
Ambient temperature (during operation) [°C]	-25-55
Air pressure (operation)	70-106 kPa (up to 3,000 m above sea level)
Weight [kg]	0.35
