R-IB IL Bus Couplers Parts





Compare R-IB IL Bus Couplers
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Communication | Width [mm] | Permissible air humidity (storage) [%] | Ambient temperature (storage and transport) [°C] | Weight [kg] |
|---|---|---|---|---|---|

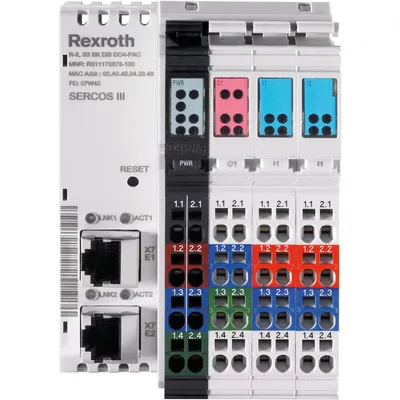

| R911170875 | Sercos slave | 80 | 10-95 | -45-85 | 0.34 |

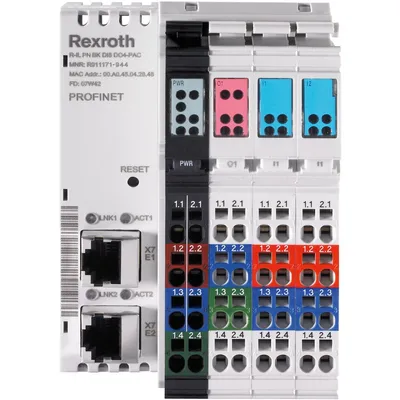

| R911171944 | Profinet | 80 | 10-95 | -40-85 | 0.35 |

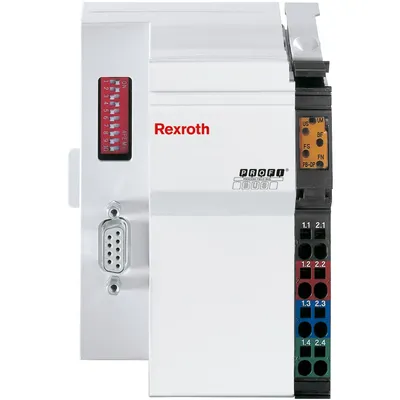

| R911170971 | PROFIBUS DP | 85 | 10-95 | -25-85 | 0.29 |

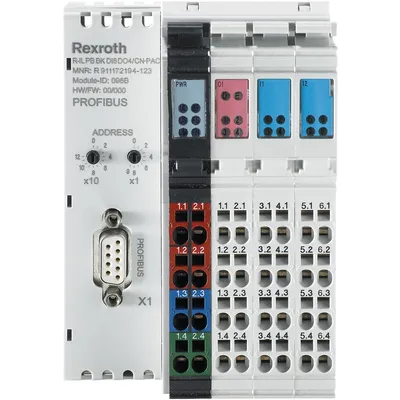

| R911172194 | PROFIBUS DP | 80 | 95 | -45-85 | 0.34 |

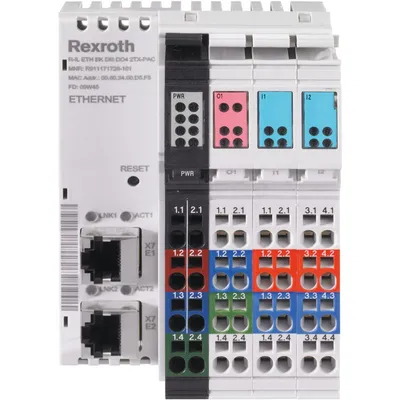

| R911171726 | Ethernet | 80 | 10-95 | -25-85 | 0.35 |
Common to all listed parts
| Connection type | Tension spring connection |
| Height [mm] | 120 |
| Depth [mm] | 71.5 |
| International protection code | IP20 |
| Conductor cross-section | AWG: 28 ... 16; Flexible: 0.08-0.5 mm²; rigid: 0.08-0.5 mm² |
| Air pressure (operation) | 70-106 kPa (up to 3,000 m above sea level) |
