Bosch Rexroth R902406027

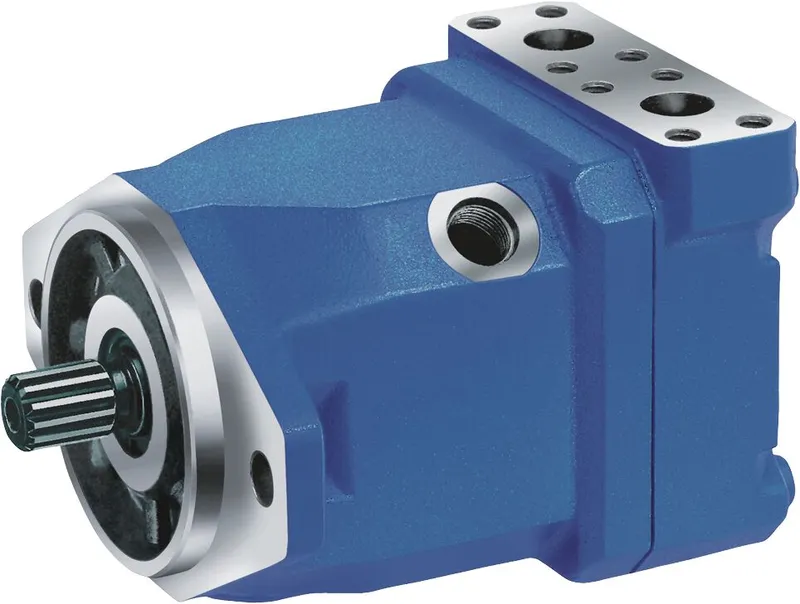

AXIAL-PISTON MOTOR A A10F M 45 /52W-VRC66N000-SO481

MPN: R902406027
Category: Axial piston fixed motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R902406027?

The A10FM is a fixed motor with an axial piston rotary group with a swashplate design for hydrostatic drives in open and closed circuits. For axial piston units with swashplate design, the pistons are arranged axially relative to the drive shaft. The pistons rest on the swashplate and transfer the torque depending on the pressure via the cylinder to the drive shaft

Well-tried A10 rotary group technology

Approved for high speeds

Long service life

High power density

Low operating noise

Specifications

Version_1	A
Version_2	WITHOUT
Product family	A10F
Type of actuation	M
Size (displacement) [cm³]	45
Series	52
Direction of rotation	W
Sealing material	V
Shaft end	R
Mounting flange	C
Working ports	66
High-pressure valves - setting range	0
Speed sensing	WITHOUT
SO number	SO481
Rotational speed [rpm]	1500.0
Displacement [cm³]	45.0
Working pressure [bar]	250.0
Flushing flow [l/min]	0
Classification society (external)	NO
Test certificate	WITHOUT
Test certificate language code	WITHOUT
Paint/base coat	WITHOUT
Paint/top coat	WITHOUT
Weight [kg]	17.3

R902406027: frequently asked questions

When can R902406027 be shipped?

R902406027 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R902406027 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R902406027 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R902406027, subject to availability and destination.
