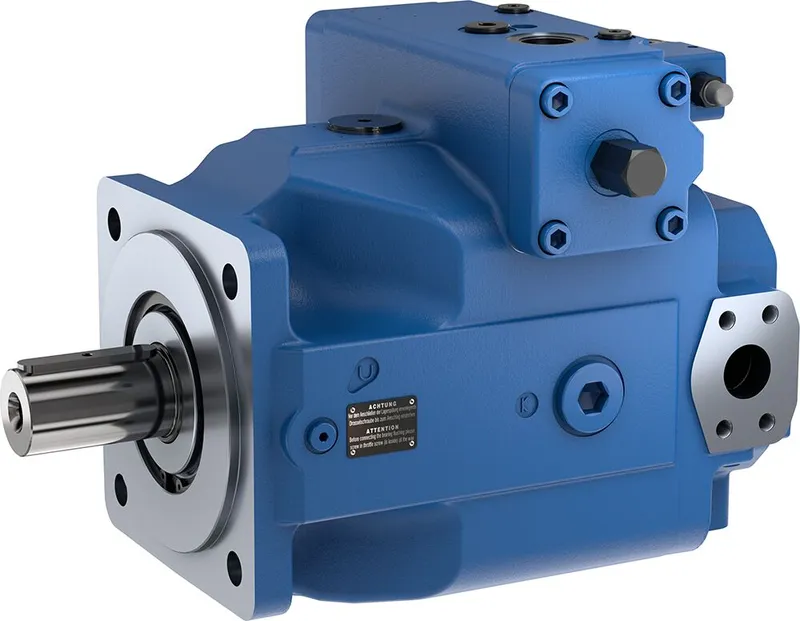

AXIAL-PISTON PUMP A A4VSO 180 DRG /30R-VPB13N00
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Axial piston variable pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R902405410 be shipped?
R902405410 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R902405410 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R902405410 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R902405410, subject to availability and destination.
Bosch Rexroth AXIAL-PISTON PUMP A A4VSO 180 DRG /30R-VPB13N00, manufacturer part number R902405410. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Product family | A4VS |
| Charge pump (impeller) | Without charge pump |
| Type of actuation | Pump, open circuit |
| Size (displacement) [cm³] | 180 |
| Control device | Pressure controller, remote-controlled |
| Series | Series 3, index 0 |
| Direction of rotation | clockwise |
| Sealing material | FKM (fluorocarbon rubber) |
| Shaft end | Parallel keyed shaft DIN 6885 |
| Mounting flange | based on ISO 3019-2 metric, 4-hole |
| Working ports | Port B and S: SAE flange lateral, offset 90°, metric fastening thread |
| Through drive | Without through drive |
| Rotational speed [rpm] | 1500.0 |
| Max. displacement [cm³] | 180.0 |
| Max. flow [l/min] | 270.0 |
| Pressure differential FR [bar] | 0 |
| Drive power [kW] | 45.0 |
| Pressure controller setting [bar] | 369 |
| DRG differential pressure [bar] | 20 |
| Painting | unpainted |
| Hydraulic fluid | Mineral oil and HFD hydraulic fluids |
| Filtration | without filter |
| Weight [kg] | 107.31 |
More Bosch Rexroth parts
Available on requestAXIAL-PISTON PUMP A AA10VSO 71
Available on requestAXIAL-PISTON PUMP A A4VSO 180 DRG /30R-PPB13N00
Available on requestAXIAL-PISTON PUMP A A4VSO 180 DR /30R-VPB13N00
Available on requestAXIAL-PISTON PUMP A A4VSO 250 DRG /30R-VPB13N00
Available on requestAXIAL-PISTON PUMP A A4VSO 355

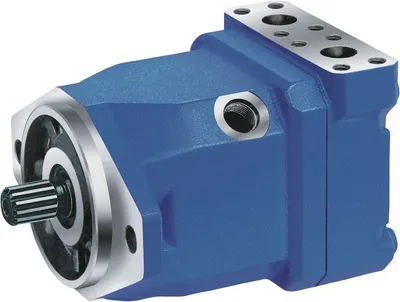

Available on requestAXIAL-PISTON MOTOR A A10F M 45 /52W-VRC66N000-SO481
