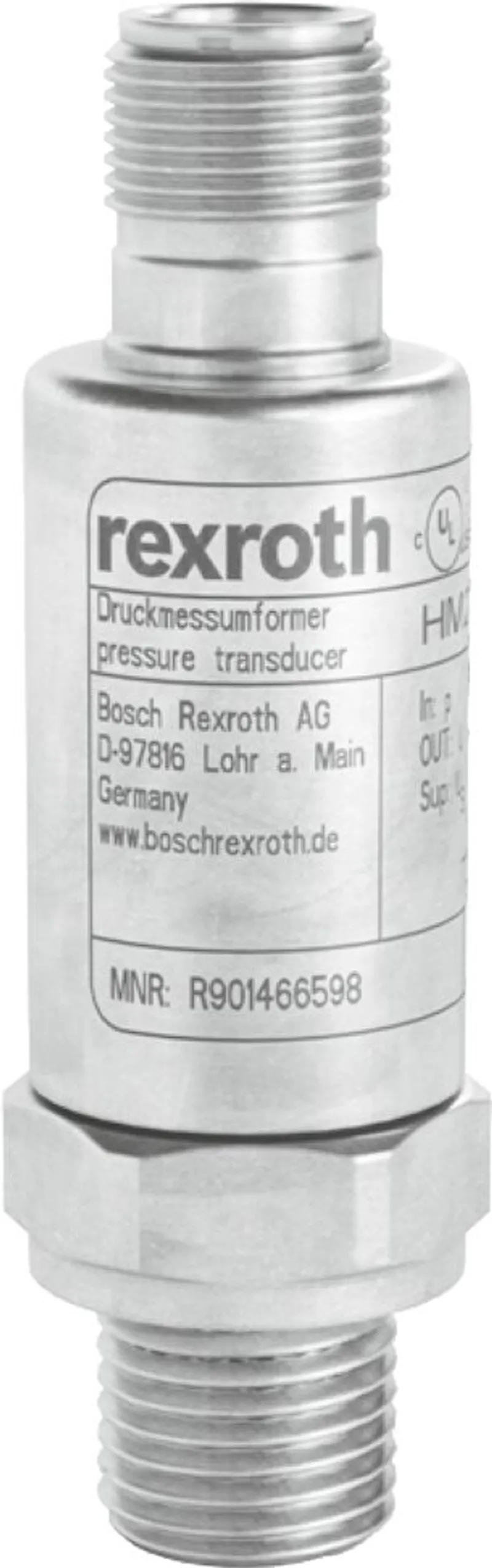

PRESSURE TRANSDUCER HM 20-2X/400-C-K35-N

Name: Bosch Rexroth R901456334 – PRESSURE TRANSDUCER HM 20-2X/400-C-K35-N
Brand: Bosch Rexroth
SKU: R901456334

MPN: R901456334 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Power unit accessories, pressure sensors
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R901456334 be shipped?

R901456334 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R901456334 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R901456334 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R901456334, subject to availability and destination.

Short signal rise time < 1 ms for dynamic pressure control. All components in contact with the media are made of stainless steel. High degree of measurement accuracy of < 0.5% FS. Excellent overload and bursting behavior.

Thin film measuring cell

Output 4 ... 20 mA

Analog output: 4 … 20 mA

Hydraulic connection G1/4

Throttle element in the pressure tube

Throttle element in the pressure channel

Connector 4-pole, M12x1, A-coded

Specifications

Connection diagram	Male thread G1/4
Product family	HM20
Operating pressure, max. [bar]	400.0
Output signal	4…20 mA
Supply voltage	24 VDC
Electrical connector	Connector, 4-pole, M12 x 1, coding A
Display	No
Electrical connection description	Connector, 4-pole, M12 x 1, coding A according to EN 61076-2-101
Conformity description	CE – Electromagnetic compatibility (EMC) directive 2014/30/EU; CE – RoHS Directive 2011/65/EU; UKCA – Electromagnetic compatibility (EMC) SI2016/1091; UKCA – RoHS Directive SI2012/3032
Conformity	CE; RoHS; UKCA
Hydraulic fluid	HFC; HL; HLP; Nitrogen (up to 300 bar)
Seals	NBR
Weight [kg]	0.07
