Bosch Rexroth R901456333

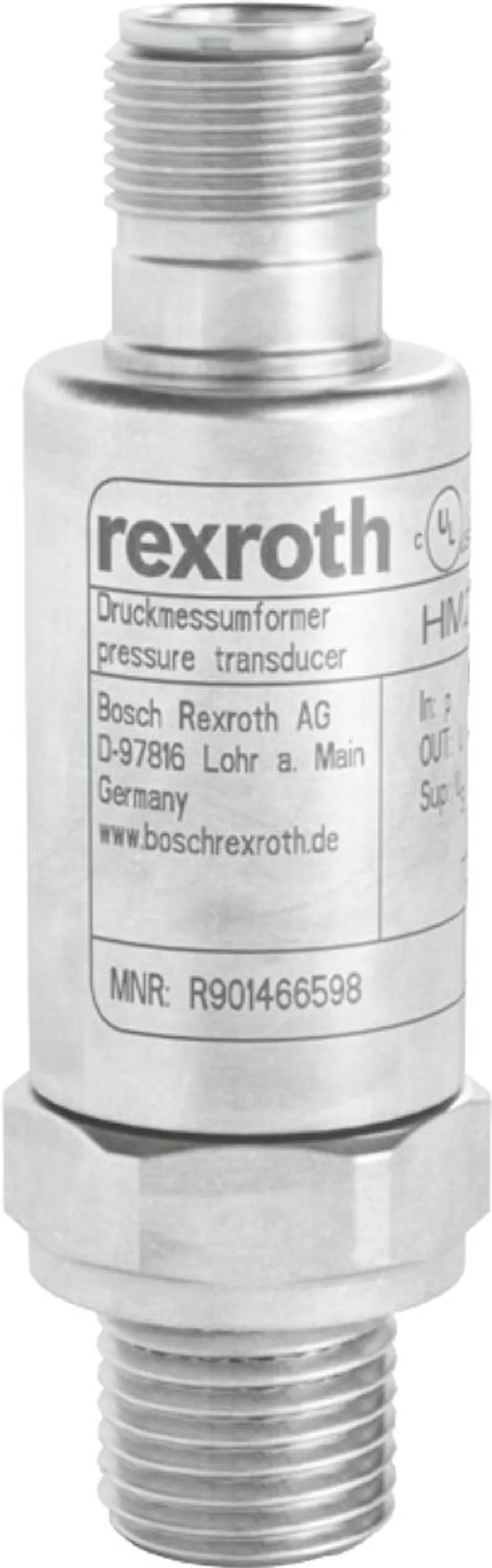

PRESSURE TRANSDUCER HM 20-2X/250-H-K35-N
- MPN
- R901456333
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R901456333?
Short signal rise time < 1 ms for dynamic pressure control. All components in contact with the media are made of stainless steel. High degree of measurement accuracy of < 0.5% FS. Excellent overload and bursting behavior.
Thin film measuring cell
Analog output 0.1 … 10 V
Hydraulic connection G1/4
Throttle element in the pressure tube
Throttle element in the pressure channel
Connector 4-pole, M12x1, A-coded
Specifications
Specifications
| Connection diagram | Male thread G1/4 |
| Product family | HM20 |
| Operating pressure, max. [bar] | 250.0 |
| Output signal | 0.1…10 V |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 4-pole, M12 x 1, coding A |
| Display | No |
| Electrical connection description | Connector, 4-pole, M12 x 1, coding A according to EN 61076-2-101 |
| Conformity description | CE – Electromagnetic compatibility (EMC) directive 2014/30/EU; CE – RoHS Directive 2011/65/EU; UKCA – Electromagnetic compatibility (EMC) SI2016/1091; UKCA – RoHS Directive SI2012/3032 |
| Conformity | CE; RoHS; UKCA |
| Hydraulic fluid | HFC; HL; HLP; Nitrogen (up to 300 bar) |
| Seals | NBR |
| Weight [kg] | 0.07 |
R901456333: frequently asked questions
When can R901456333 be shipped?
R901456333 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R901456333 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R901456333 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R901456333, subject to availability and destination.
