Bosch Rexroth R901431176

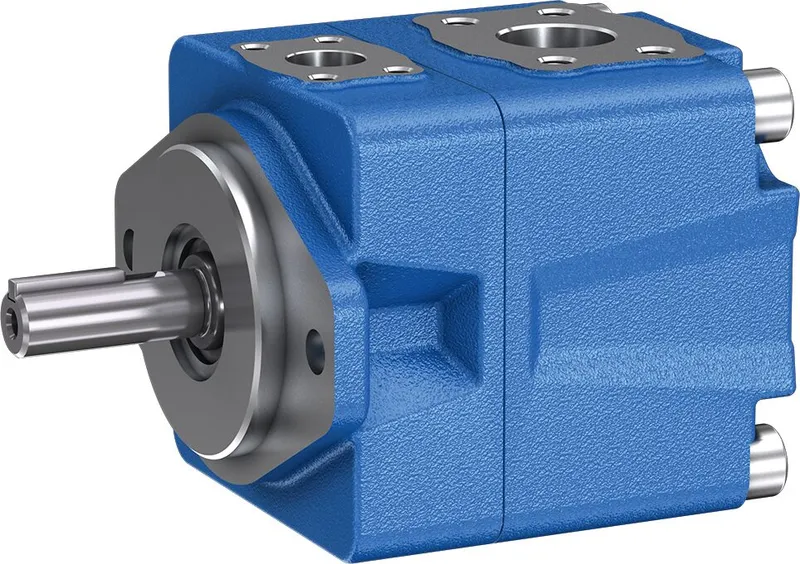

VANE PUMP PVH1-1X/020RA15DMB
- MPN
- R901431176
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R901431176?
Double-stroke vane pump, internally force compensated without hydraulic bearing load allows for a long life cycle.
Rotary vane fixed displacement pump
For industrial applications in open circuit
With NBR seals
Specifications
Specifications
| Displacement type | constant |
| Size [cm³] | 20 |
| Product family | Set PVH |
| Operating pressure, max. [bar] | 320.0 |
| Max. flow [l/min] | 29.3 |
| Through-drive | without |
| Direction of rotation | clockwise rotation |
| Shaft end | Cylindrical Ø 22.2 mm with fitting key |
| Mounting flange | 2-hole mounting flange 101-2 according to ISO 3019-1 |
| Hydraulic fluid | HFC; HLP |
| Seals | NBR |
| Weight [kg] | 23.5 |
R901431176: frequently asked questions
When can R901431176 be shipped?
R901431176 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R901431176 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R901431176 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R901431176, subject to availability and destination.
