Bosch Rexroth R901431135

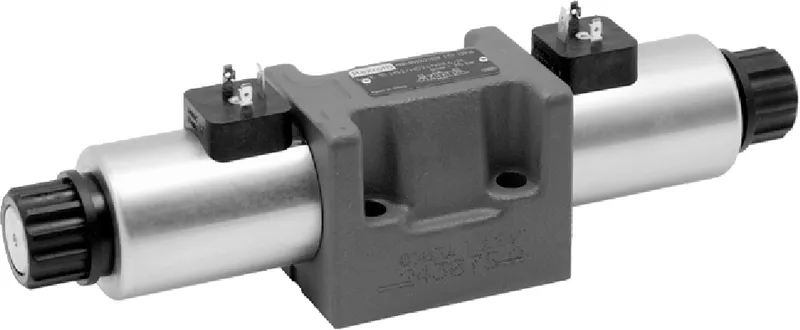

DIRECTIONAL SPOOL VALVE 4WE10J2B5X/HG24N9K4/M
- MPN
- R901431135
- Category
- Directional on/off valve
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R901431135?
Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol
Direct actuated
Spool valve
With concealed auxiliary actuation
Specifications
Specifications
| Connection diagram | ISO 4401-05-04-0-05 |
| Product family | WE10../H |
| Operating pressure, max. [bar] | 315.0 |
| Max. flow [l/min] | 135.0 |
| Spool symbol | Symbol J2B |
| Type of connection | Subplate mounting |
| Size | 10 |
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 3-pole (2 + PE) |
| Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
| Hydraulic fluid | HFC; HL; HLP; HLPD; HVLP; HVLPD |
| Seals | NBR |
| Weight [kg] | 4.4 |
R901431135: frequently asked questions
When can R901431135 be shipped?
R901431135 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R901431135 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R901431135 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R901431135, subject to availability and destination.
