Home / Bosch Rexroth / Directional on/off valve / Bosch Rexroth R901042519

Bosch Rexroth R901042519

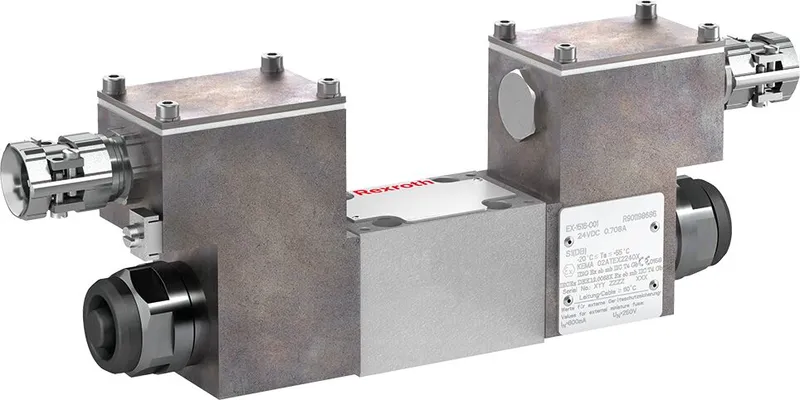

DIRECTIONAL SPOOL VALVE 4WE6Y6X/EG48NXEZ2/V

MPN: R901042519
Category: Directional on/off valve

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R901042519?

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol

Spool valve

Direct actuated

with manual override

Specifications

Connection diagram	ISO 4401-03-02-0-05
Product family	WE 6…E..XE
Operating pressure, max. [bar]	350.0
Max. flow [l/min]	50.0
Spool symbol	Symbol Y
Type of connection	Subplate mounting
Size	6
Type of actuation	with solenoid actuation
Number of ports	4
Number of switching positions	2
Supply voltage	48 VDC
Electrical connector	Cable gland
Electrical connection description	Connector 3-pole (2 + PE) according to EN 175301-803
Conformity description	ATEX – Directive 2014/34/EC conformity assessment (in-house); ATEX – Directive 2014/34/EU; ATEX – Directive 2014/34/EU storage at a notified body; CCC – Ex QAR (QM system); CCC – Ex TR type examination certificate
Conformity	ATEX; CCC-Ex
Hydraulic fluid	HEES; HEPG; HETG; HFDR; HFDU; HL; HLP; HLPD; HVLP; HVLPD
Seals	FKM
Weight [kg]	2.34

R901042519: frequently asked questions

When can R901042519 be shipped?

R901042519 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R901042519 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R901042519 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R901042519, subject to availability and destination.
