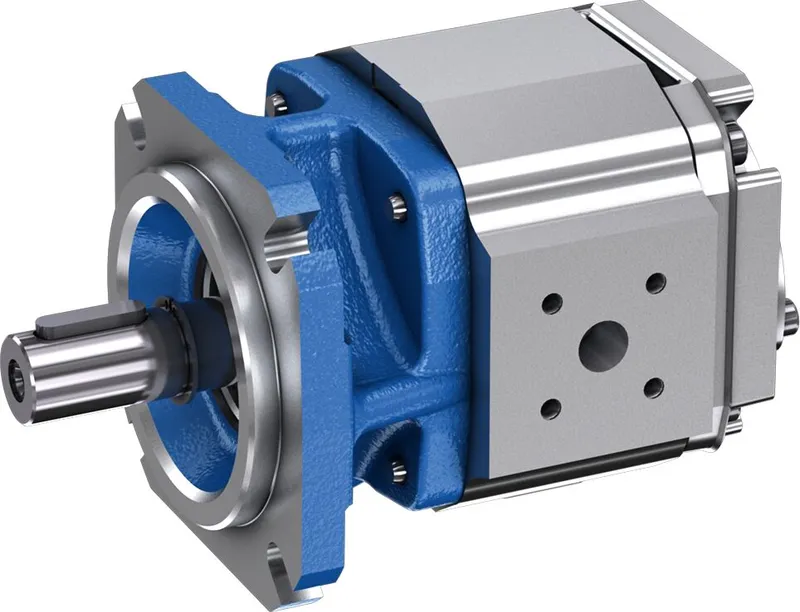

Bosch Rexroth R901041571
INTERNAL GEAR PUMP PGF3-3X/020LO20VK4
- MPN
- R901041571
- Category
- Internal gear pumps
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R901041571?
Suitable for variable-speed drives, low noise and low pulsation, high efficiency thanks to gap compensation, suitable for two million load cycles at maximum pressure
Internal gear pump with constant displacement
For industrial and mobile applications in the open circuit
With FKM seals
Aluminum housing
Specifications
Specifications
| Displacement type | constant |
| Product family | PGF |
| Operating pressure, max. [bar] | 210.0 |
| Max. flow [l/min] | 74.16 |
| Size | 20 |
| Through-drive | with |
| Direction of rotation | counterclockwise rotation |
| Shaft end | Conical 1:5 |
| Mounting flange | 4-hole mounting flange according to ISO 7653-1985 |
| Hydraulic fluid | HEES; HEPG; HETG; HFDR; HFDU; HLP; HLPD; HVLP; HVLPD |
| Seals | FKM |
| Operating pressure max. special fluids [bar] | 210 |
| Weight [kg] | 4.34 |
R901041571: frequently asked questions
When can R901041571 be shipped?
R901041571 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R901041571 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R901041571 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R901041571, subject to availability and destination.
