Bosch Rexroth R900086168

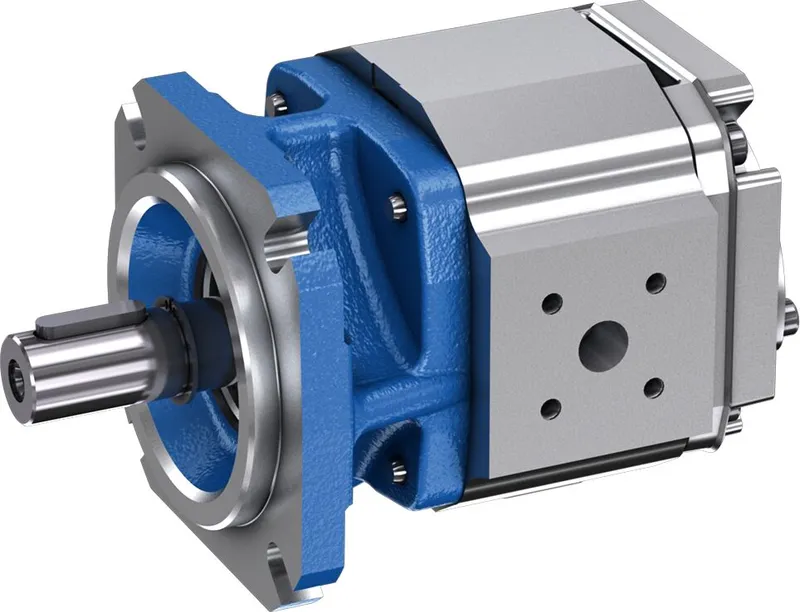

INTERNAL GEAR PUMP PGF1-2X/3,2RL01VM

MPN: R900086168
Category: Internal gear pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R900086168?

Suitable for variable-speed drives, low noise and low pulsation, high efficiency thanks to gap compensation, suitable for two million load cycles at maximum pressure

Internal gear pump with constant displacement

For industrial and mobile applications in the open circuit

With FKM seals

Aluminum housing

Specifications

Displacement type	constant
Product family	PGF
Operating pressure, max. [bar]	210.0
Max. flow [l/min]	11.52
Size	3.2
Through-drive	with
Direction of rotation	clockwise rotation
Shaft end	Dihedral for claw coupling 5 mm
Mounting flange	2-hole fastening centering 32 mm
Hydraulic fluid	HEES; HEPG; HETG; HFDR; HFDU; HLP; HLPD; HVLP; HVLPD
Seals	FKM
Operating pressure max. special fluids [bar]	210
Weight [kg]	0.98
