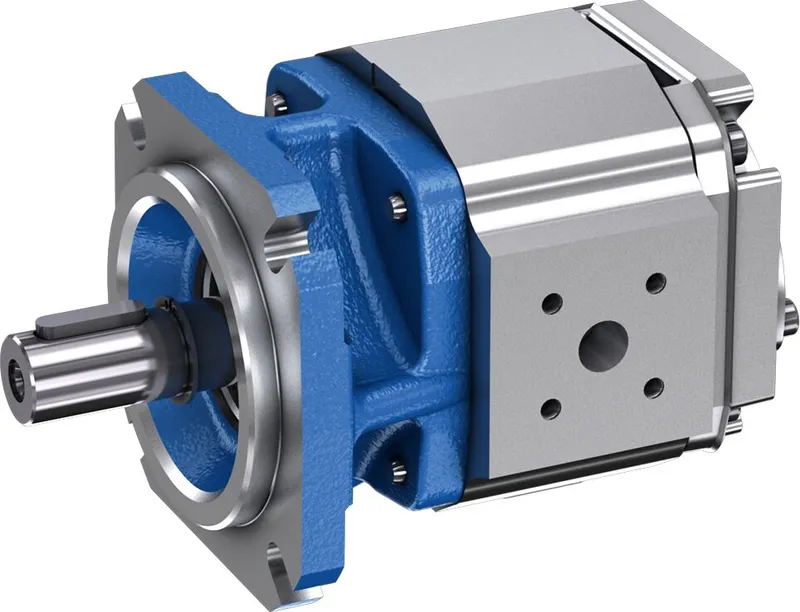

INTERNAL GEAR PUMP PGF1-2X/5,0RE01VU2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Internal gear pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R900086164 be shipped?
R900086164 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R900086164 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R900086164 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R900086164, subject to availability and destination.
Suitable for variable-speed drives, low noise and low pulsation, high efficiency thanks to gap compensation, suitable for two million load cycles at maximum pressure
Internal gear pump with constant displacement
For industrial and mobile applications in the open circuit
With FKM seals
Aluminum housing
Specifications
Specifications
| Displacement type | constant |
| Product family | PGF |
| Operating pressure, max. [bar] | 180.0 |
| Max. flow [l/min] | 18.0 |
| Size | 5 |
| Through-drive | with |
| Direction of rotation | clockwise rotation |
| Shaft end | Cylindrical Ø 12 mm with fitting key, ISO 3019-2 |
| Mounting flange | 2-hole mounting flange 82-2 according to ISO 3019-1 |
| Hydraulic fluid | HEES; HEPG; HETG; HFDR; HFDU; HLP; HLPD; HVLP; HVLPD |
| Seals | FKM |
| Operating pressure max. special fluids [bar] | 180 |
| Weight [kg] | 2.05 |
