BRAKING ELEMENT KBH 6505 BS1A &
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for roller rail systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R181064021 be shipped?
R181064021 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R181064021 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R181064021 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R181064021, subject to availability and destination.

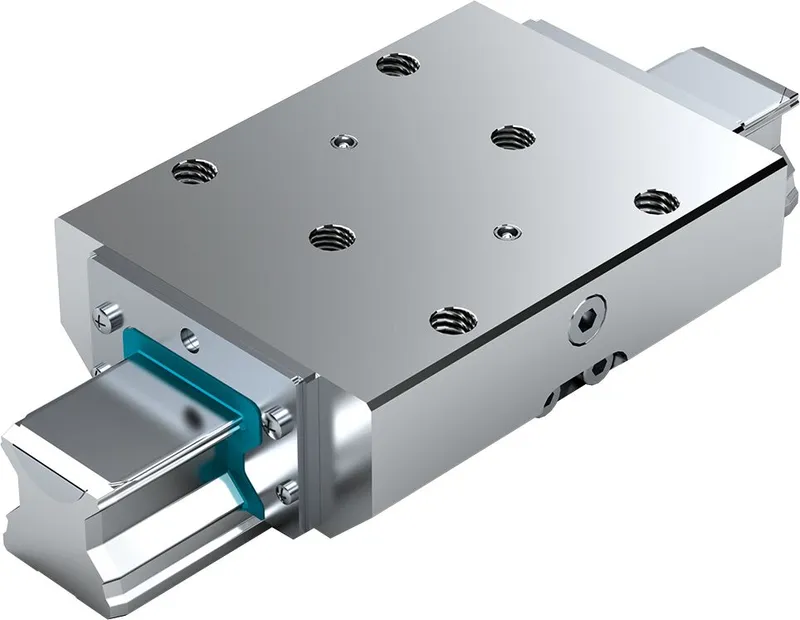

Hydraulic braking unit KBH (hydraulic clamping and braking units) *) , FLS for roller rail systems
Size = 65
Can be used on all SNS roller guide rails
*) Zimmer GmbH
Very high axial holding forces
Dynamic and static stabilization in the axial direction
Heavy-duty brake
Compact design, compatible with DIN 645
Clamps and brakes with pressure
Can be used on all SNS roller guide rails
Up to 1 million clamping cycles
Up to 2,000 emergency braking operations
Threaded on both sides for the hydraulic connection
Solid, rigid steel housing, chemically nickel-plated
High positioning accuracy
Release pressure 150 bar
Integrated all-round sealing
Special pressure diaphragm technology for maximum functional reliability without pressure losses or leakage
Brake shoes with integrated positive-locking, large-surface contact profiles for maximum axial rigidity
Super heavy-duty model
Low displacement
10 million clamping cycles (B10d value)
Specifications
Specifications
| Accessories for | Runner block |
| Nominal size [mm] | 65 |
| Holding force [N] | 22700 |
| Permissible ambient temperature (min. ... max.) | 0 °C ... +70 °C |
| Weight [kg] | 17.82 |
| Footnote 1 holding force | The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). |
| Note: holding force 2 | At 150 bar |
| Displacement footnote | Per clamping |
| Displacement [cm³] | 3.8 |

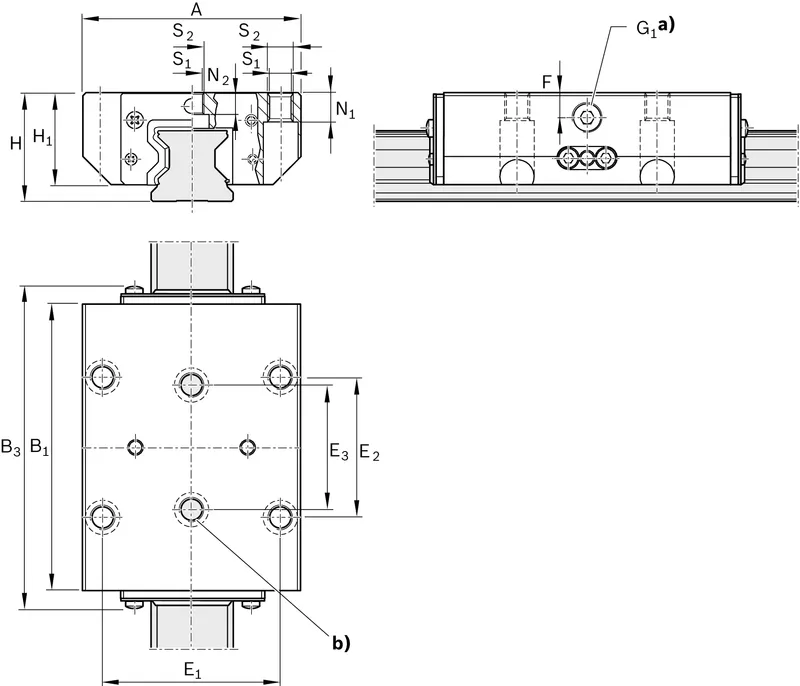

| Dimension A (profiled rail systems) [mm] | 170 |
| Dimension B1 [mm] | 227 |
| Dimension B3 [mm] | 245 |
| Dimension E1 [mm] | 142 |
| Dimension E2 (profiled rail systems) [mm] | 110 |
| Dimension E3 (profiled rail systems) [mm] | 82 |
| Dimension F [mm] | 20 |
| Dimension H [mm] | 90.0 |
| Dimension H1 (profiled rail systems) [mm] | 76 |
| Dimension N1 (profiled rail systems) [mm] | 23 |
| Dimension N2 (profiled rail systems) [mm] | 21.5 |
| Dimension S1 (profiled rail systems) [mm] | 14.5 |
| Dimension S2 thread diameter (profiled rail systems) [mm] | M16 |
More Bosch Rexroth parts

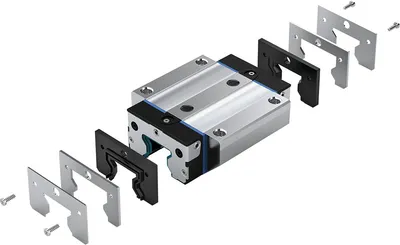

Available on requestSEAL KIT 65 (FKM) BG
Available on requestLUBRICATING UNIT 65

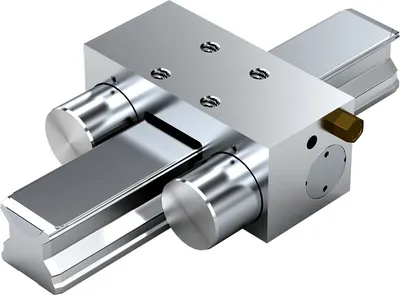

Available on requestCLAMPING ELEMENT MKS 6505 AR &

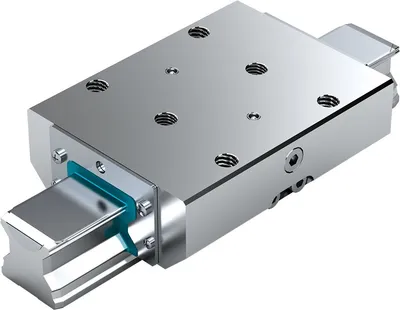

Available on requestCLAMPING ELEMENT KWH 6505 BS1A

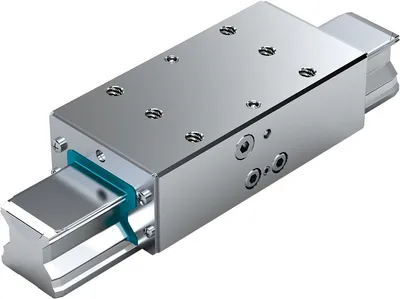

Available on requestCLAMPING ELEMENT KWH 6505 BS2A &

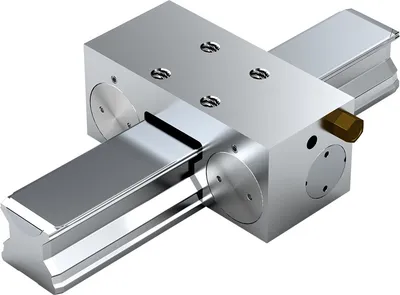

Available on requestCLAMPING ELEMENT MK 6505 AR &
