Bosch Rexroth R181062500

LUBRICATING UNIT 65

MPN: R181062500
Category: Accessories for roller rail systems

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R181062500?

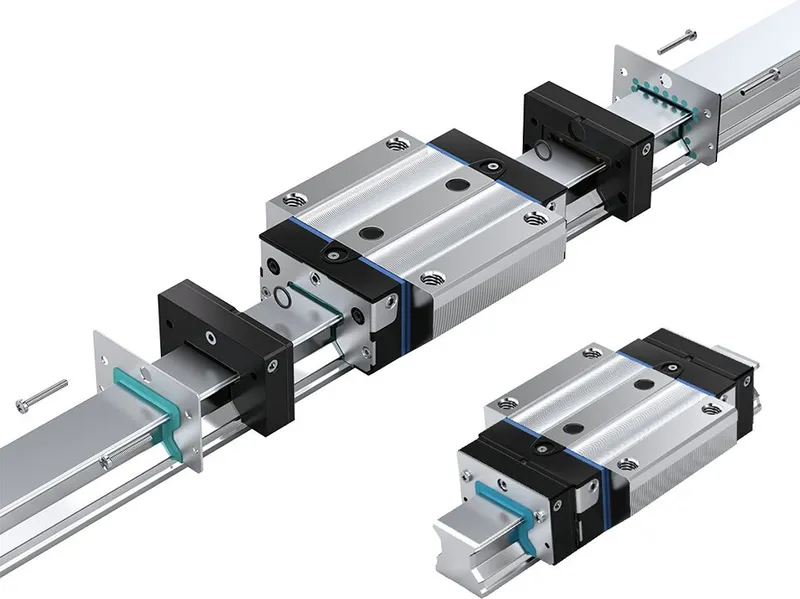

Front lube unit for roller rail systems

Size 65

Front lube units suitable for RSHP roller runner blocks and roller runner block generation 1

For a travel distance of up to 5,000 km without re-lubrication

Roller Runner Block only needs initial lubrication with grease

Front lube units on both sides of the Roller Runner Block

Low lubricant loss

Reduced oil consumption

No lubrication lines

Front lube unit can be refilled using the lube nipple on the end-face or at the side.

Size 25: Lube connection on the end-face of the front lube unit is suitable for the grease lubrication of the Roller Runner Block. For this purpose, a lube pin is attached. For a detailed instruction for mounting with size 25, please refer to the Roller Rail System instruction.

Specifications

Accessories for	Runner block
Nominal size [mm]	65
Tightening torque [Nm]	1
Height runner block with guide rail [mm]	90.0
Operating temperature (min. … max.)	+60 °C
Permissible ambient temperature (min. ... max.)	-10 °C ... +40 °C
Weight [kg]	0.34
Maximum operating temperature [°C]	+60
Possible travel distance s with front lube units	1000

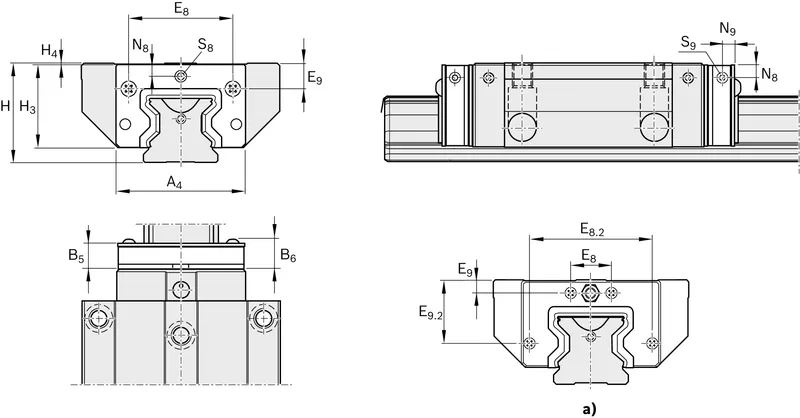

Dimension A4 (profiled rail system) [mm]	119
Dimension B5 (profiled rail systems) [mm]	21
Dimension E8 (profiled rail systems) [mm]	35
Dimension E9 (profiled rail systems) [mm]	9.3
Dimension H [mm]	90.0
Dimension H3 [mm]	74.8
Dimension H4 [mm]	0.75
Dimension N8 (profiled rail systems) [mm]	8.55
Dimension N9 (profiled rail systems) [mm]	8.5
Dimension S8 thread diameter (profiled rail systems) [mm]	M6
Dimension S9 thread diameter (profiled rail systems)	M6
Footnote Dimension H	Dimension with regard to mounting surface of the roller runner block for a standard higher version
