Bosch Rexroth R181034211

CLAMPING ELEMENT KWH 3505 BS1A

MPN: R181034211
Category: Accessories for roller rail systems

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

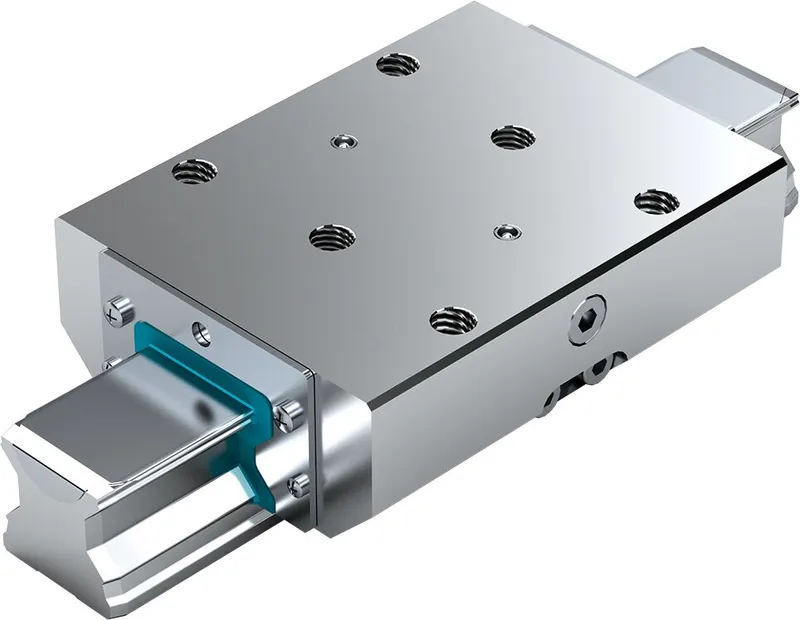

What is the Bosch Rexroth R181034211?

Hydraulic clamping unit KWH *) , FLS for roller rail systems

Size = 35

Can be used on all SNS roller guide rails

*) Zimmer GmbH

Very high axial holding forces

Dynamic and static stabilization in the axial direction

Compact design, compatible with DIN 645

Clamps and brakes with pressure

Can be used on all SNS roller guide rails

Threaded on both sides for the hydraulic connection

Solid, rigid steel housing, chemically nickel-plated

High positioning accuracy

Integrated all-round sealing

Special pressure diaphragm technology for maximum functional reliability without pressure losses or leakage

Integrated positive-locking, large-surface contact profiles for maximum axial rigidity

10 million clamping cycles (B10d value)

Specifications

Accessories for	Runner block
Nominal size [mm]	35
Holding force [N]	5700
Note: holding force 3	At 150 bar
Permissible ambient temperature (min. ... max.)	0 °C ... +70 °C
Weight [kg]	2.7
Footnote 1 holding force	The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). For permissible holding forces see "Technical data and calculations".
Displacement footnote	Per clamping
Displacement [cm³]	1.1

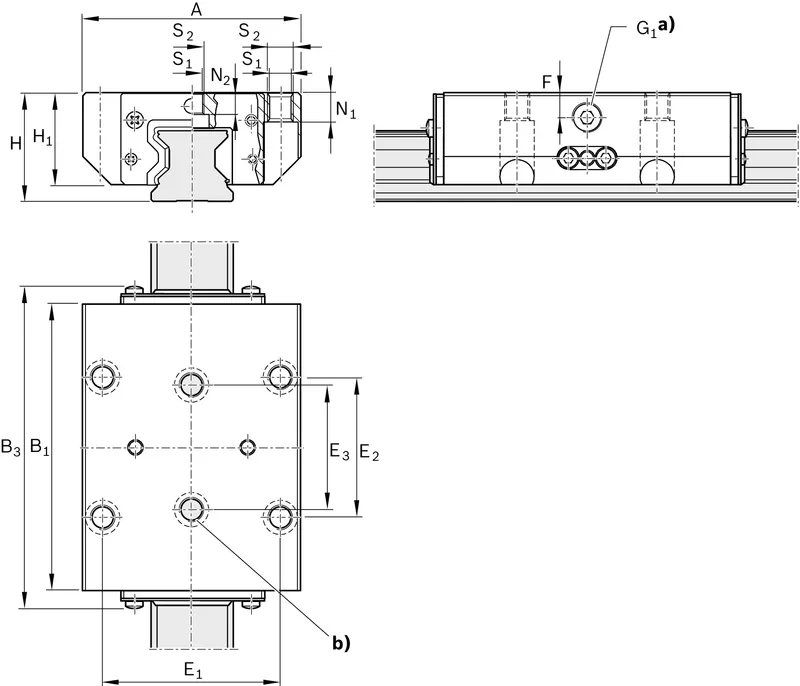

Dimension A (profiled rail systems) [mm]	100
Dimension B1 [mm]	120.5
Dimension B3 [mm]	135.2
Dimension E1 [mm]	82
Dimension E2 (profiled rail systems) [mm]	62
Dimension E3 (profiled rail systems) [mm]	52
Dimension F [mm]	12
Dimension H [mm]	48.0
Dimension H1 (profiled rail systems) [mm]	41
Dimension N1 (profiled rail systems) [mm]	12
Dimension N2 (profiled rail systems) [mm]	11
Dimension S1 (profiled rail systems) [mm]	8.6
Dimension S2 thread diameter (profiled rail systems) [mm]	M10
