Bosch Rexroth R181034060

CLAMPING ELEMENT MKS 3505 AR &

MPN: R181034060
Category: Accessories for roller rail systems

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R181034060?

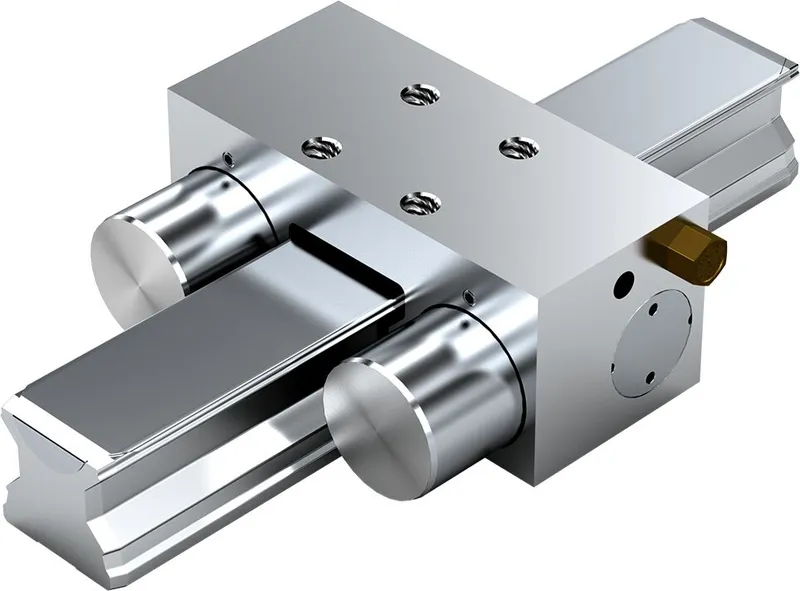

Pneumatic clamping unit MKS *) for roller rail systems

Size = 35

Can be used on all SNS roller guide rails

*) Zimmer GmbH

High axial holding forces with short format

Dynamic and static stabilization in the axial direction

Easy mounting

Clamps without pressurization (spring energy). In the event of a pressure drop, it clamps via the dual-action gate valve gear mechanism with two spring assemblies.

Chemically nickel-plated steel housing

High axial and horizontal rigidity

Precise positioning

Higher holding force due to the air-plus port

Can be used on all SNS roller guide rails

5 million clamping cycles (B10d value) – the B10d value is not attained with the PLUS connection

Specifications

Accessories for	Runner block
Nominal size [mm]	35
Note: spring energy holding force with standard air port	Holding force achieved by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
Permissible ambient temperature (min. ... max.)	0 °C ... +70 °C
Weight [kg]	1.02
Footnote for spring energy holding force with air-plus port	Holding force achieved by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
Air consumption (normal liter) standard air port [dm³/stroke]	0.031

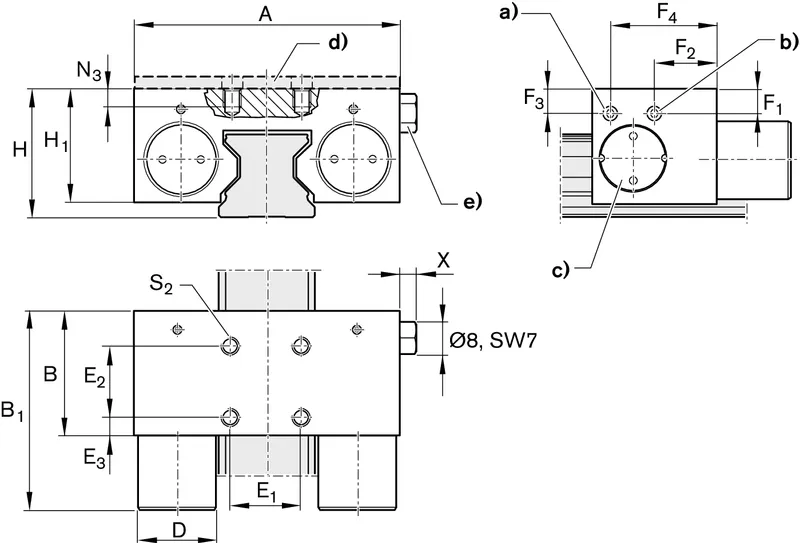

Dimension A (profiled rail systems) [mm]	100
Dimension A1 (profiled rail systems) [mm]	68
Dimension B (profiled rail systems) [mm]	39
Dimension B1 [mm]	67.5
Dimension D [mm]	28
Dimension E1 [mm]	24
Dimension E2 (profiled rail systems) [mm]	24
Dimension E3 (profiled rail systems) [mm]	7.5
Dimension F1 [mm]	12
Dimension F2 [mm]	24.5
Dimension H [mm]	48.0
Dimension H1 (profiled rail systems) [mm]	44
Dimension H2 (profiled rail systems) [mm]	28
Dimension H2 with cover strip (profiled rail systems) [mm]	28
Dimension N3 (profiled rail systems) [mm]	10
Dimension S2 thread diameter (profiled rail systems) [mm]	M8
Dimension X (profiled rail systems) [mm]	5.5
Footnote Dimension H1	For roller runner block .H. (...High...) Spacer plate necessary.
Height of guide rail H2 [mm]	28.0
