Bosch Rexroth R159003530

BEARING LAF-B-A 35 BG

MPN: R159003530
Category: Accessories for ball screw assemblies

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

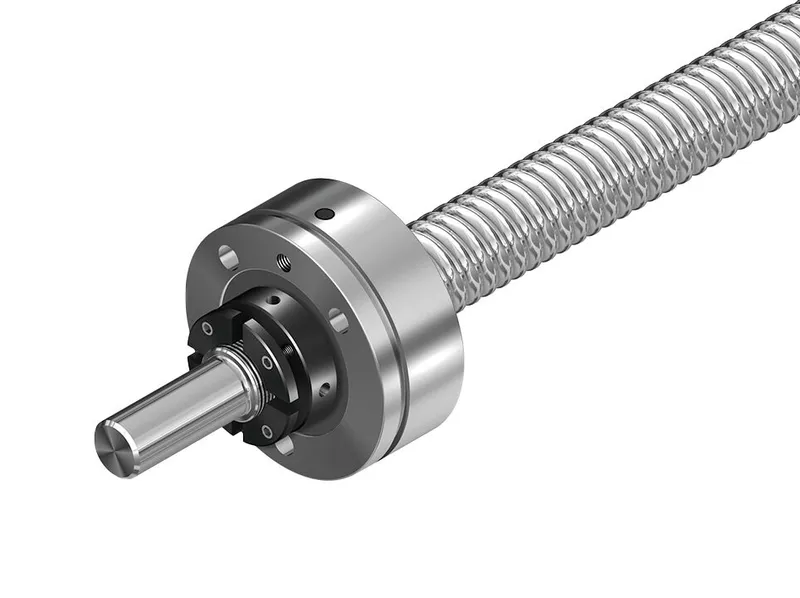

What is the Bosch Rexroth R159003530?

The fixed bearing consists of: Angular-contact thrust ball bearing LGF, slotted nut NMA or NMZ. Suitable for screw end type◡51, 51A, 52, 52A, 81, 81A, 82, 82A, 91, 91A, 92, 92A

The fixed bearing consists of:

Angular-contact thrust ball bearing LGF

Slotted nut NMA or NMZ

Suitable for screw end form 51, 51A, 52, 52A, 81, 81A, 82, 82A, 91, 91A, 92, 92A

Specifications

Nominal size [mm]	50 x 5
Type	Angular-contact thrust ball bearing
Dynamic load capacity C [N]	41000.0
Note: dynamic load capacity C	Load on bearing (see general technical notes and information for bearings, "Project planning notes")
Outer diameter D [mm]	90.0
Weight [kg]	1.3
Limit speed (grease) nmax	2000
Limit speed nmin [min⁻¹]	2000
Static load capacity C0 [N]	89000.0
Note: static load capacity C0	Load on bearing (see general technical notes and information for bearings, "Project planning notes")
Rigidity against tilting Rkl [Nm/mrad]	400
Bearing frictional torque with seal MRb [Nm]	0.6
Rigidity of the bearing (axial) RFB [N/μm]	900
Dimension B (profiled rail systems) [mm]	34
Dimension D [mm]	90
Dimension d [mm]	35
Dimension d tolerance [mm]	-0.01
Dimension J [mm]	75
