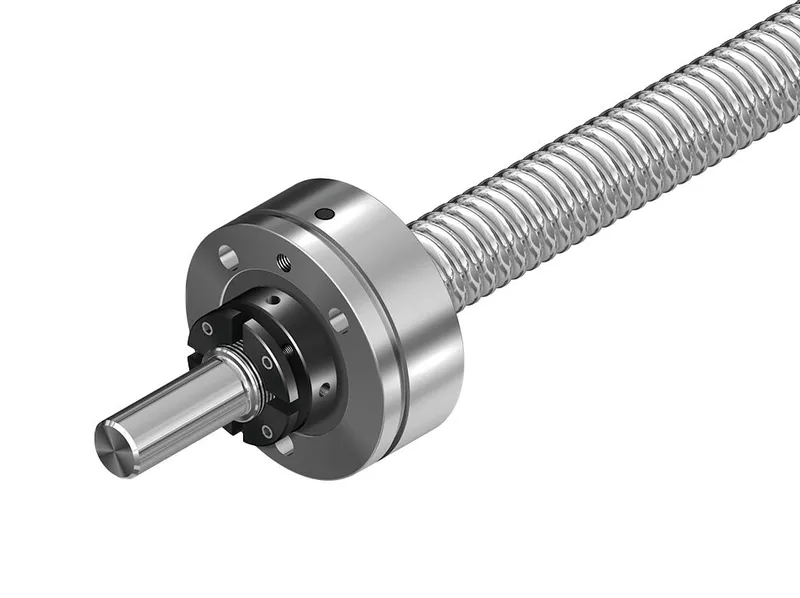

Bosch Rexroth R159003000

BEARING LAF-B-Z 30 BG

MPN: R159003000
Category: Accessories for ball screw assemblies

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R159003000?

The fixed bearing consists of: Angular-contact thrust ball bearing LGF, slotted nut NMA or NMZ. Suitable for screw end type◡51, 51A, 52, 52A, 81, 81A, 82, 82A, 91, 91A, 92, 92A

The fixed bearing consists of:

Angular-contact thrust ball bearing LGF

Slotted nut NMA or NMZ

Suitable for screw end form 51, 51A, 52, 52A, 81, 81A, 82, 82A, 91, 91A, 92, 92A

Specifications

Nominal size [mm]	40 x 5
Type	Angular-contact thrust ball bearing
Dynamic load capacity C [N]	29000.0
Note: dynamic load capacity C	Load on bearing (see general technical notes and information for bearings, "Project planning notes")
Outer diameter D [mm]	80.0
Weight [kg]	0.87
Limit speed (grease) nmax	2200
Limit speed nmin [min⁻¹]	2200
Static load capacity C0 [N]	64000.0
Note: static load capacity C0	Load on bearing (see general technical notes and information for bearings, "Project planning notes")
Footnote mass m	R159003000
Rigidity against tilting Rkl [Nm/mrad]	300
Bearing frictional torque with seal MRb [Nm]	0.5
Rigidity of the bearing (axial) RFB [N/μm]	850
Dimension B (profiled rail systems) [mm]	28
Dimension D [mm]	80
Dimension d [mm]	30
Dimension d tolerance [mm]	-0.01
Dimension J [mm]	63
