Bosch Rexroth R15613B104

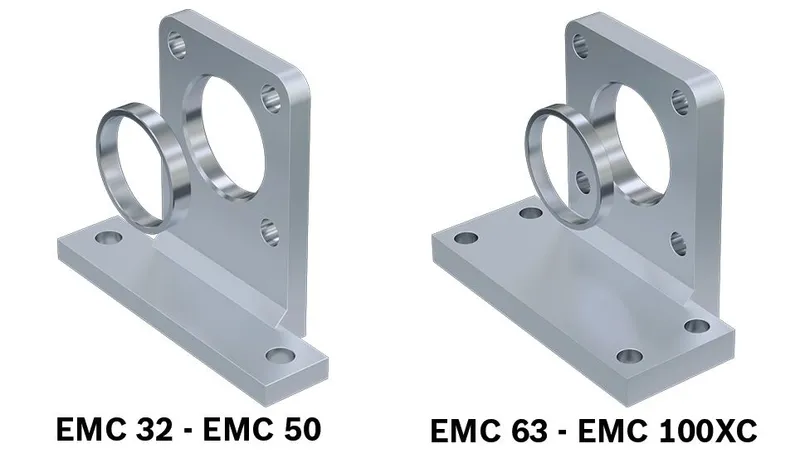

FOOT ANCHORAGE EMC50 BG

MPN: R15613B104
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R15613B104?

Group 5, option 05

Material: Galvanized steel

Specifications

Fastening elements for electromechanical cylinders	Foot mounting
Nominal size [mm]	50
Weight [kg]	0.57
Footnote mass m	including the weight of the centering ring
Material	Galvanized steel
Surface finishing	galvanized
Material of electromechanical cylinders	Steel

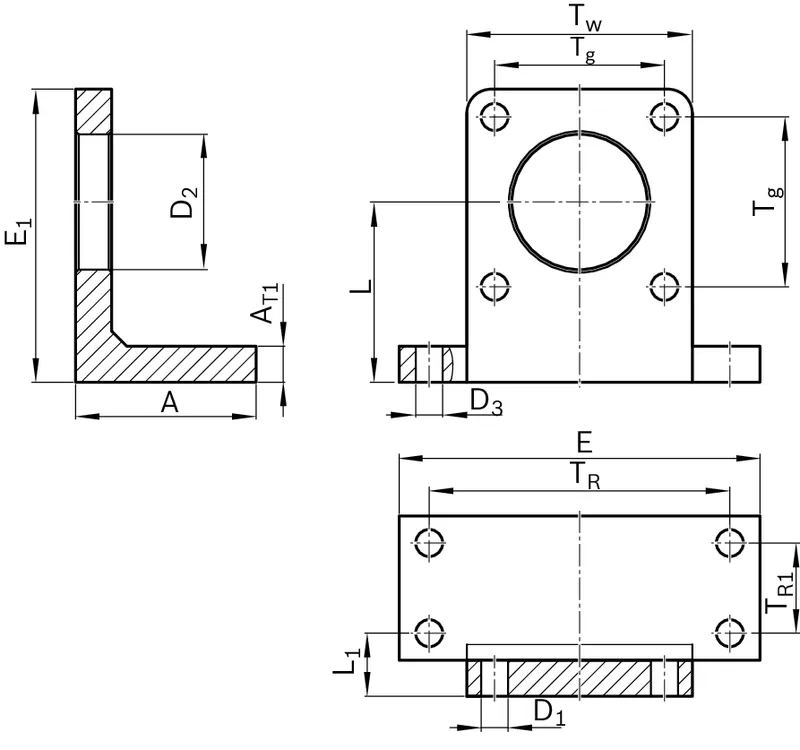

Dimension A (profiled rail systems) [mm]	35
Dimension A tolerance [mm]	±0.5
Dimension AT1 [mm]	8
Dimension AT1 tolerance [mm]	±0.5
Dimension D1 H13 [mm]	9
Dimension D2 H7 [mm]	40
Dimension D3 H13 [mm]	9
Dimension E [mm]	110
Dimension E tolerance [mm]	±0.5
Dimension E1 [mm]	93.5
Dimension E1 tolerance [mm]	±0.5
Dimension L [mm]	60
Dimension L tolerance [mm]	±0.1
Dimension L1 [mm]	21
Dimension Tg [mm]	46.5
Dimension TR [mm]	90
Dimension TW [mm]	65
Dimension TW tolerance [mm]	±0.5
