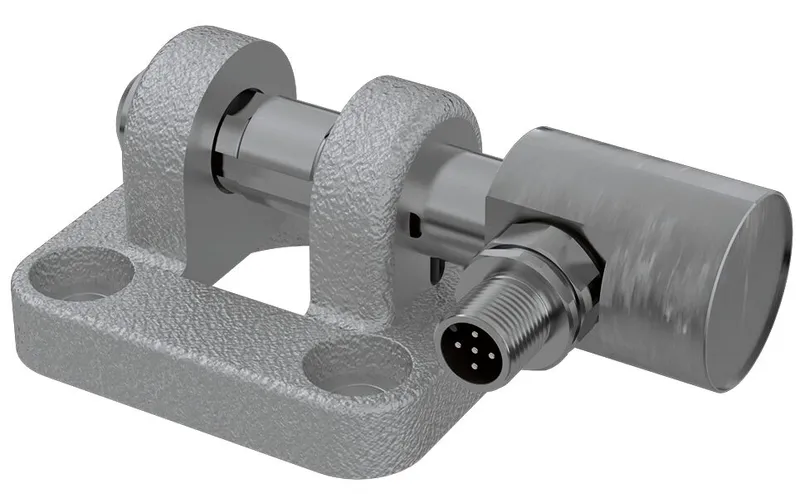

Bosch Rexroth R15613B021

MEASURING ROD EMC50 BG

MPN: R15613B021
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R15613B021?

Group 1, option 02; group 5, option 10

Material: Aluminum/galvanized spheroidal graphite iron

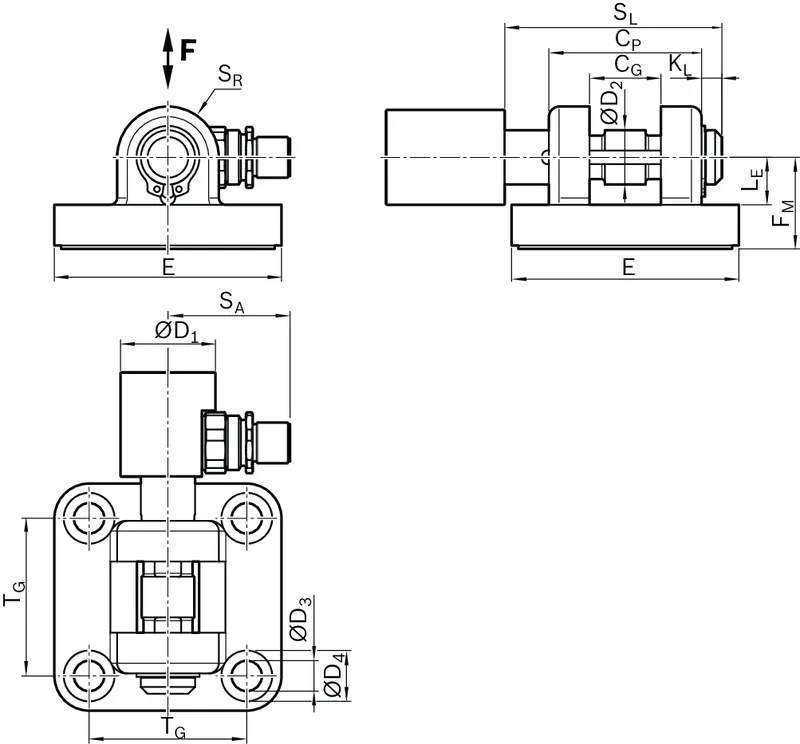

Specifications

Fastening elements for electromechanical cylinders	Clevis mount
Nominal size [mm]	50
Weight [kg]	0.79
Surface finishing	forged
Pitch T guide rail [mm]	4
Material of electromechanical cylinders	Aluminum
Dimension CG D10 [mm]	21
Dimension CP d12 [mm]	45
Dimension D1 [mm]	28
Dimension D2 f8 [mm]	16
Dimension D3 [mm]	9
Dimension D4 [mm]	15
Dimension E [mm]	67
Dimension FM [mm]	27
Dimension FM tolerance [mm]	±0.2
Dimension KL [mm]	6
Dimension LE min. [mm]	14
Dimension SA [mm]	31.5
Dimension SL [mm]	64; 64
Dimension SR [mm]	15
Dimension T [mm]	4
Dimension T tolerance [mm]	±0.2
Dimension Tg [mm]	46.5
Dimension TG [mm]	46.5
Dimension TG tolerance [mm]	±0.2
Dimension hex socket head cap screws DIN 912	M8x20 mm
Dimension hex socket head cap screw DIN 912 thread diameter	M8
Hex socket head cap screw DIN 912 screw Dimension, length [mm]	20
