Bosch Rexroth R15612B025

SPHERICAL PLAIN BEARING EMC40

MPN: R15612B025
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R15612B025?

Group 6, option 05

Material: Aluminum

Counterpart to clevis bracket with load measuring pin

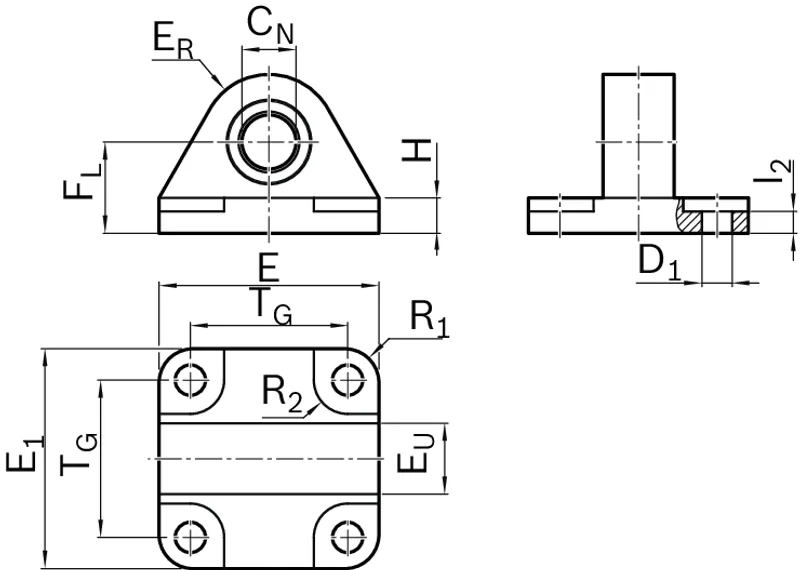

Specifications

Fastening elements for electromechanical cylinders	Swivel mount
Nominal size [mm]	40
Weight [kg]	0.12
Material of electromechanical cylinders	Aluminum
Dimension CN H7 [mm]	12
Dimension D1 H13 [mm]	6.6
Dimension E [mm]	53
Dimension E tolerance [mm]	±0.5
Dimension E1 [mm]	53
Dimension E1 tolerance [mm]	±0.5
Dimension ER [mm]	18
Dimension ER tolerance [mm]	±0.2
Dimension EU [mm]	16
Dimension EU tolerance [mm]	±0.2
Dimension FL [mm]	25
Dimension FL tolerance [mm]	±0.2
Dimension H [mm]	9.0
Tolerance H [mm]	±0.5
Dimension I2 [mm]	5.5
Dimension I2 tolerance [mm]	±0.5
Dimension R1 [mm]	8
Dimension R2 [mm]	8
Dimension Tg [mm]	38
Dimension TG [mm]	38
Dimension hex socket head cap screws DIN 912	M6x18 mm
Dimension hex socket head cap screw DIN 912 thread diameter	M6
Hex socket head cap screw DIN 912 screw Dimension, length [mm]	18
