Bosch Rexroth R15612B013

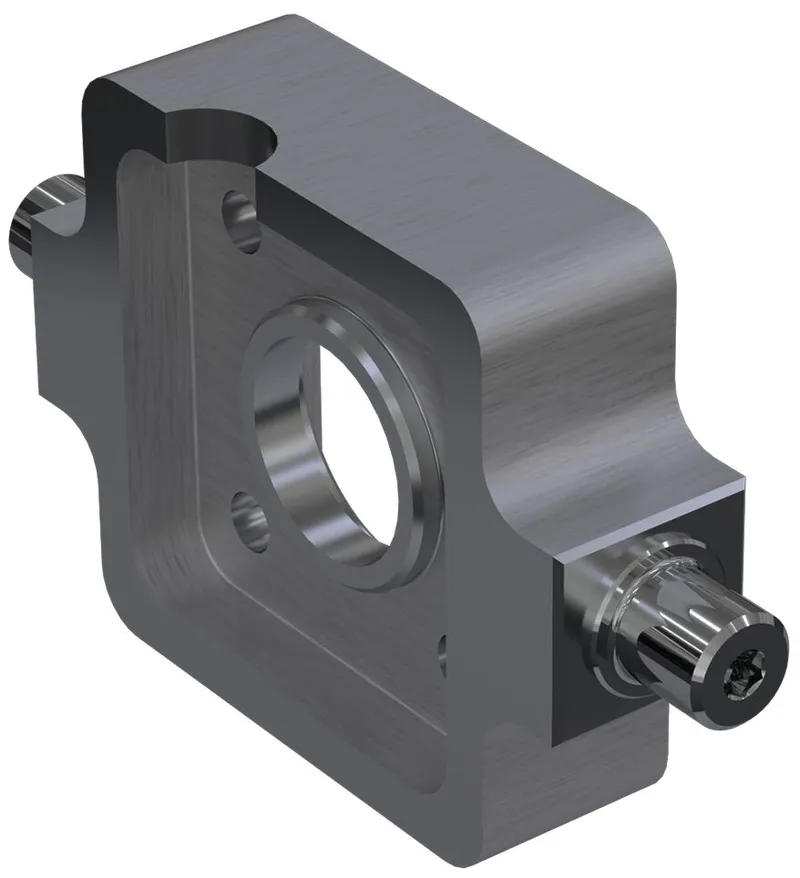

TRUNNION EMC40 BG

MPN: R15612B013
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R15612B013?

Group 5, option 01

included in group 5, option 03

Material: Galvanized steel

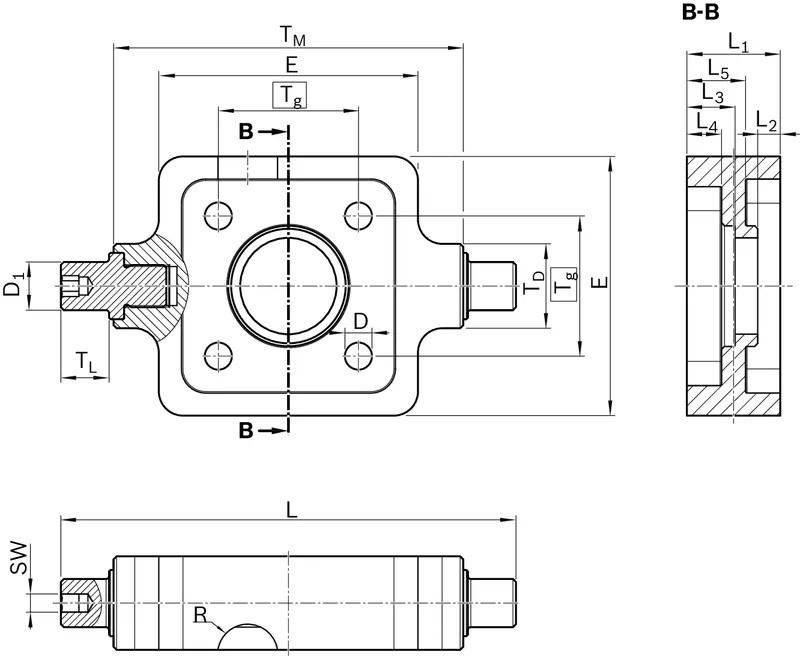

Specifications

Fastening elements for electromechanical cylinders	Trunnion
Nominal size [mm]	40
Weight [kg]	0.7
Surface finishing	galvanized
Material of electromechanical cylinders	Steel
Dimension D H13 [mm]	6.6
Dimension D1 h7 [mm]	16
Dimension E [mm]	65
Dimension E tolerance [mm]	±0.5
Dimension L [mm]	135
Dimension L1 [mm]	28
Dimension L1 tolerance [mm]	±0.5
Dimension L2 [mm]	6.5
Dimension L2 tolerance [mm]	±0.2
Dimension L3 [mm]	15
Dimension L3 tolerance [mm]	±0.2
Dimension L4 [mm]	10.5
Dimension L4 tolerance [mm]	±0.5
Dimension L5 [mm]	17.5
Dimension L5 tolerance [mm]	±0.5
Dimension R [mm]	10
Dimension SW [mm]	6
Dimension TD [mm]	28
Dimension TD tolerance [mm]	±0.5
Dimension Tg [mm]	38
Dimension TL [mm]	16
Dimension TL tolerance [mm]	±0.2
Dimension TM [mm]	100
Dimension TM tolerance [mm]	±0.3
