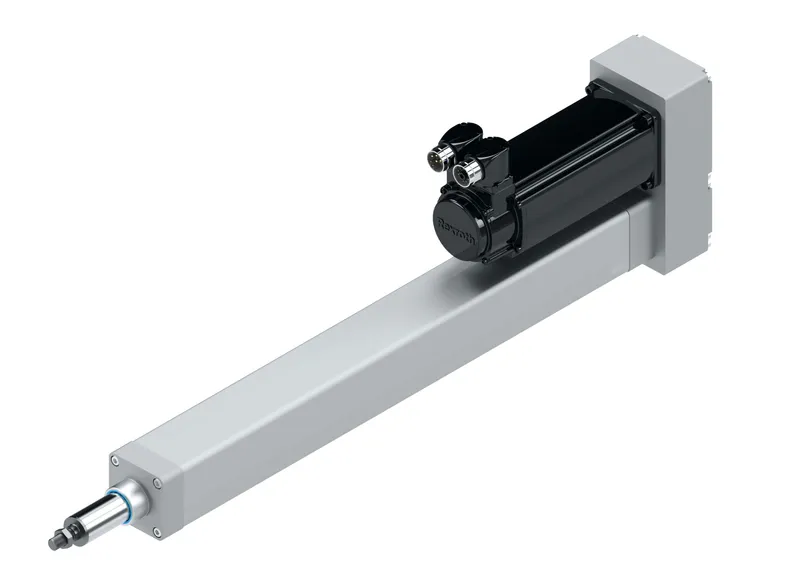

LINEAR ACTUATOR EMC-050-NN-2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Electromechanical cylinders EMC |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R156030010 be shipped?
R156030010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R156030010 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R156030010 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R156030010, subject to availability and destination.
Variable and complete system: hygienic, flexible, energy efficient
Its high variability makes the EMC very interesting for many industries and applications. By using the available configuration options, a cost-effective, simple base cylinder can be adapted to virtually any customer requirement:
chemical resistant, with perfect sealing and a high IP enclosure protection class. All these properties ensure a long service life – even under harsh industrial conditions. The powerful EMC always performs very efficiently.
The resulting energy saving potential makes it an economical alternative to pneumatic systems.
Precise positioning, high dynamics, powerful drive and a long service life thanks to precision Rexroth planetary screw assemblies
High-precision Rexroth ball screw assemblies: for high performance with maximum cost-effectiveness
Hygienic design
A ready to install and turn on system for low structural design and assembly costs
Complete building system with great variability: can be adapted to a wide range of applications
Cylinder optionally in protection class IP65 version for good sealing against dirt and water or protection class IP65 +R (resistant) for additional high chemical resistance
Piston rod made of corrosion-resistant stainless steel
Suitable for pulse-controlled central lubrication systems
Wide range of accessories
Specifications
Specifications
| Nominal size [mm] | 050 |
| Maximum permissible axial force Fmax [N] | 7800 |
| Dynamic load capacity C [N] | 15400.0 |
| Maximum travel range smax [mm] | 900.0 |
| Maximum permissible linear speed vmax [m/s] | 1.27 |
| Note: maximum permissible speed vmax | Force or torque and speed can be limited by the motor. |
| Weight [kg] | 0 |
