Bosch Rexroth R146520010

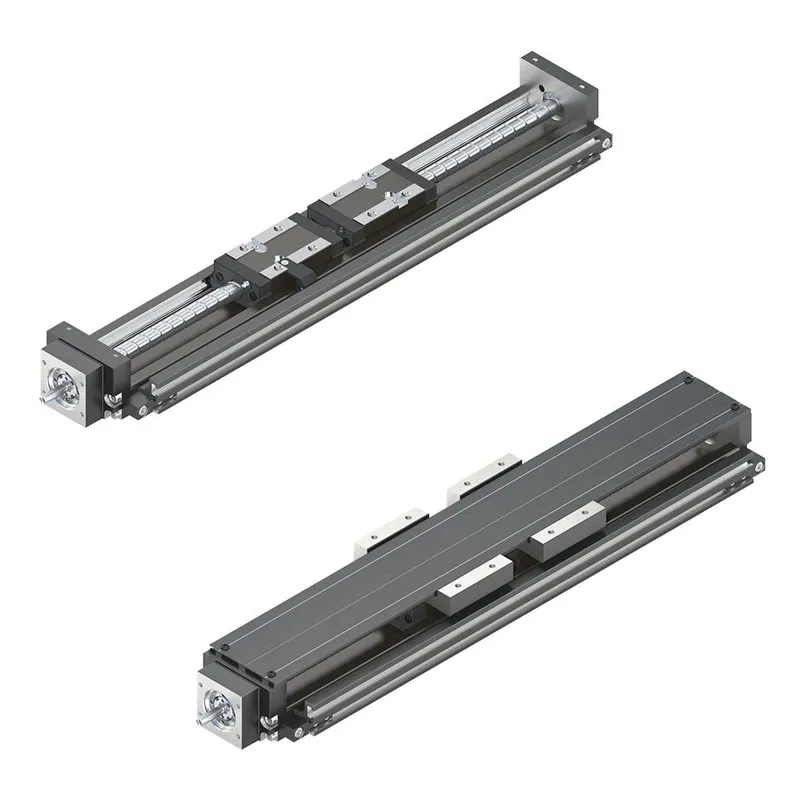

PRECISION MODULE PSK-050-NN-2

MPN
R146520010
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R146520010?

Extremely stiff and highly precise linear motion system with the smallest dimensions

Machined reference edge on the frame facilitates rapid mounting and easy aligning

Flexible application possibilities thanks to two different accuracy classes: N=normal class and P=precision class

Four different lubrication versions: Standard lubrication (LSS), preserved (LPG), prepared for connection to central lubrication systems for liquid grease (LCF), lubrication with internationally available standard grease of clean room quality > 1000 according to fed. std. 209 (LSC)

Ball screw assembly sealed on both sides (low-friction seal)

Three sizes: PSK-050, -060, -090

Smooth, compact and rigid precision steel profile with integrated Rexroth guideways and machined reference edge

Rexroth precision ball screw assembly in tolerance grade T7 with low-friction seal

One or two steel carriages, in standard length or long versions

Carriage with threads

Internal installation elements protected by optional cover plate

Specifications

Specifications

Nominal size [mm]PSK-050
Dynamic load capacity, guideway Cgw50 [N]18600.0
Dynamic load capacity guideway Cgw100 [N]14800.0
Maximum acceleration rate amax [m/s²]50.0
Note: Max. acceleration amaxThe maximum value is dependent on the selected configuration.
Maximum permissible linear speed vmax [m/s]0.53
Note: maximum permissible speed vmaxThe maximum value is dependent on the selected configuration.
Dynamic load capacity, fixed bearing Cfb [N]5300
Dynamic load capacity, ball screw assembly Cbs [N]2380
Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm]74
Maximum permissible dynamic torsional moment about the y-axis My max [Nm]177
Note: Maximum permissible dynamic torsional moment about the y-axis My maxThe maximum value is dependent on the selected configuration.
Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm]103
Note: Maximum permissible dynamic torsional moment about the z-axis Mz maxThe maximum value is dependent on the selected configuration.
Maximum dynamic load in y-direction Fy max [N]2800
Note: Maximum dynamic load in y-direction Fy maxThe maximum value is dependent on the selected configuration.
Maximum dynamic load in z1-direction Fz1 max [N]5900
Maximum dynamic load in z2-direction Fz2 max [N]5900
Planar moment of inertia about the y-axis ly [cm⁴]1.26
Planar moment of inertia about the z-axis lz [cm⁴]13.76
Permissible ambient temperature with Rexroth servo motor (min. ... max.)0 °C ... 40 °C
Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.)loss of performance at 40 °C or higher
Permissible ambient temperature mechanics (min. … max.)-10 °C ... 60 °C
Note: Permissible ambient temperature mechanics (min. … max.)no dropping below dew point
Weight [kg]0
Note: Dynamic load capacity, fixed bearing CfbThe maximum value is dependent on the selected configuration.
Note: Dynamic load capacity, guideway Cgw100The determination of the dynamic load capacities and load moments is based on a 100,000 m travel according to DIN ISO 14728-1. The maximum value is dependent on the selected configuration.
Note: Dynamic load capacity, guideway Cgw50The determination of the dynamic load capacities and load moments is based on a 50,000 m travel according to DIN ISO 14728-1. The maximum value is dependent on the selected configuration.
Note: Dynamic load capacity, ball screw assembly CbsThe maximum value is dependent on the selected configuration.
Dynamic torsional moment load capacity Mt50 [Nm]280.0
Note: Dynamic torsional moment load capacity Mt50The determination of the dynamic load capacities and load moments is based on a 50,000 m travel according to DIN ISO 14728-1. The maximum value is dependent on the selected configuration.
Dynamic torsional moment load capacity Mt100 [Nm]220.0
Note: Dynamic torsional moment load capacity Mt100The determination of the dynamic load capacities and load moments is based on a 100,000 m travel according to DIN ISO 14728-1. The maximum value is dependent on the selected configuration.
Dynamic longitudinal moment load capacity ML50 [Nm]559.0
Note: Dynamic longitudinal moment load capacity ML50The determination of the dynamic load capacities and load moments is based on a 50,000 m travel according to DIN ISO 14728-1. The maximum value is dependent on the selected configuration.
Dynamic longitudinal moment load capacity ML100 [Nm]443.0
Note: Dynamic longitudinal moment load capacity ML100The determination of the dynamic load capacities and load moments is based on a 100,000 m travel according to DIN ISO 14728-1. The maximum value is dependent on the selected configuration.

R146520010: frequently asked questions

When can R146520010 be shipped?

R146520010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R146520010 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R146520010 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R146520010, subject to availability and destination.
