Bosch Rexroth R146220000

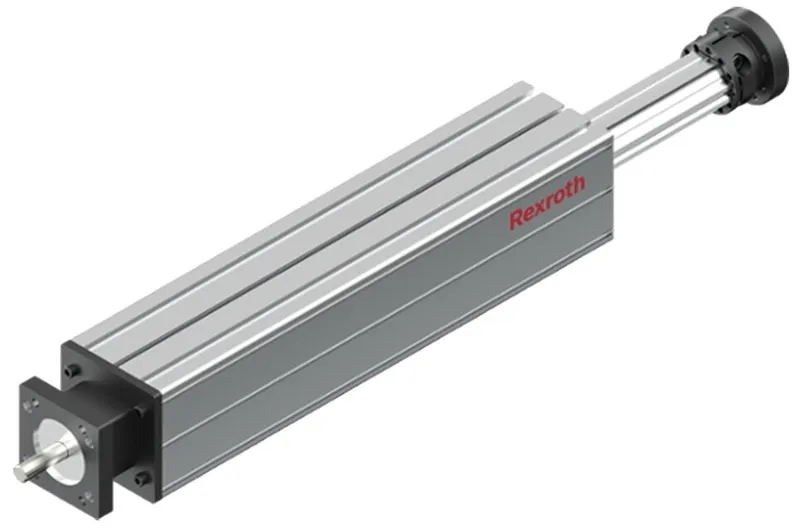

FEED MODULE VKK-050-NN-1

MPN
R146220000
Category
Feed modules
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R146220000?

Extremely compact aluminum profile (frame) with zero-backlash ball rail system

Integrated precision ball screw assembly (KGT) according to tolerance grade 7 with zero-backlash nut system

Specifications

Specifications

Nominal size [mm]VKK-050
Linear axes variantBall screw assembly
Maximum travel range smax [mm]378.0
Note: maximum permissible travel rangeMax. travel range (without bellows) at max. length
Maximum acceleration rate amax [m/s²]27.0
Maximum permissible linear speed vmax [m/s]1.16
Note: maximum permissible speed vmaxFor all lengths
Max. length Lmax [mm]480.0
Dynamic load capacity, guideway Cgw [N]6950
Dynamic load capacity, fixed bearing Cfb [N]4000
Dynamic load capacity, ball screw assembly Cbs [N]3800
Dynamic torsional moment load capacity Mt [Nm]97.0
Dynamic longitudinal moment load capacity ML [Nm]61.0
Maximum permissible torsional moment Mt max [Nm]48
Maximum permissible longitudinal load moment ML max [Nm]30
Permissible ambient temperature with Rexroth servo motor (min. ... max.)0 °C ... 40 °C
Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.)Loss of performance at 40°C or higher
Permissible ambient temperature mechanics (min. … max.)-10 °C ... 60 °C
Note: Permissible ambient temperature mechanics (min. … max.)No dropping below dew point
Weight [kg]0
