Bosch Rexroth R105218000 – SHAFT SUPPORT RAIL WU80-SFRA-600

Name: Bosch Rexroth R105218000 – SHAFT SUPPORT RAIL WU80-SFRA-600
Brand: Bosch Rexroth
SKU: R105218000

MPN: R105218000 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Precision steel shafts with shaft support rails
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R105218000 be shipped?

R105218000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R105218000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R105218000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R105218000, subject to availability and destination.

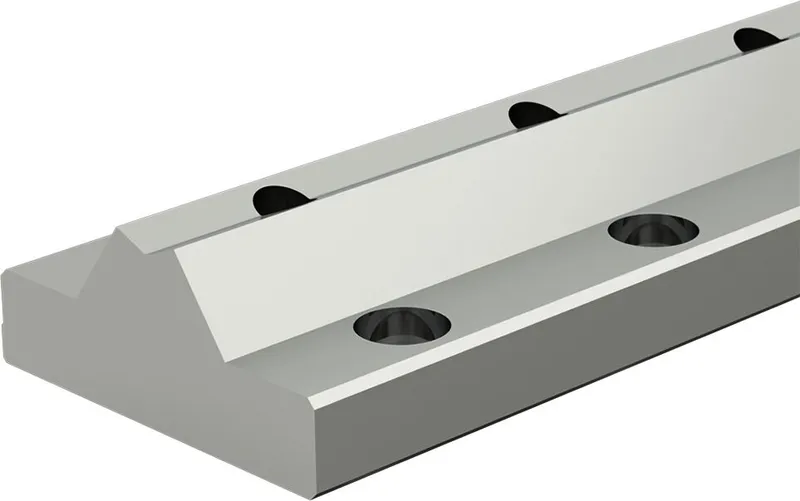

Shaft support rail

Shaft diameter d = 80

Version: Steel, flange, for radial linear bushings

600 = standard length as per table

Shaft support rail material: Steel

For use with open linear bushings

For long guides or high loads where self-supporting shafts cannot be used due to shaft warping

Unlimited length when using interconnecting shafts

Support rails for various requirements

Additional degrees of freedom in circumferential direction compared to profiled guide rails.

For applications where other linear guides tend to warp due to imprecise substructures.

Specifications

Shaft diameter d [mm]	80.0
Material shaft support rails	Steel
Length L [mm]	600.0
Weight [kg]	44.9
Product information	Please ask for delivery time!

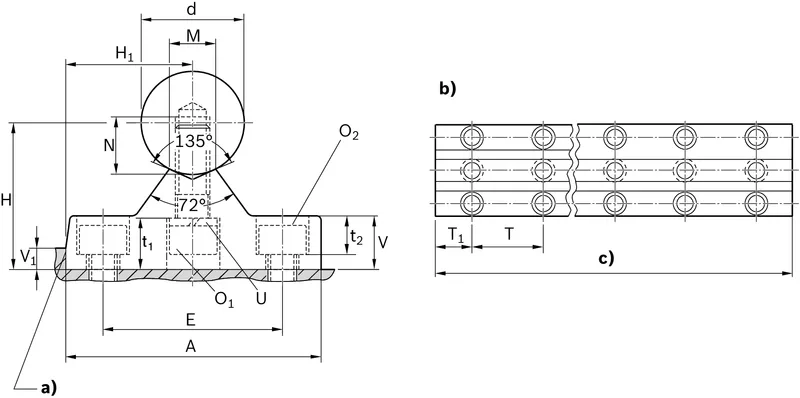

Dimension A (profiled rail systems) [mm]	200
Dimension E [mm]	140
Dimension H js7 [mm]	115
Dimension H1 js7 [mm]	100
Dimension M [mm]	37
Dimension O1 thread x lead [mm]	M24x80
Dimension O2 thread diameter	M24
Dimension t1 [mm]	38.5
Dimension t2 [mm]	30.5
Dimension U [mm]	24
Dimension V [mm]	42
Dimension V1 [mm]	18
