Bosch Rexroth R105213000

SHAFT SUPPORT RAIL WU30-SFRA-600

MPN: R105213000
Category: Precision steel shafts with shaft support rails

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

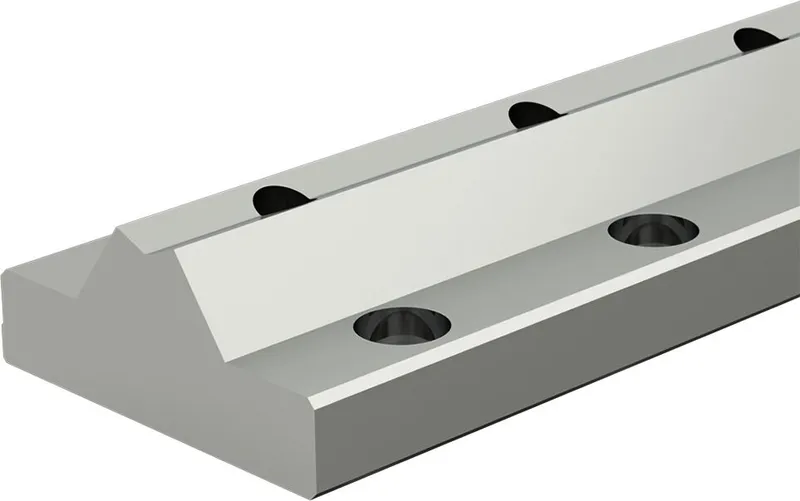

What is the Bosch Rexroth R105213000?

Shaft support rail

Shaft diameter d = 30

Version: Steel, flange, for radial linear bushings

600 = standard length as per table

Shaft support rail material: Steel

For use with open linear bushings

For long guides or high loads where self-supporting shafts cannot be used due to shaft warping

Unlimited length when using interconnecting shafts

Support rails for various requirements

Additional degrees of freedom in circumferential direction compared to profiled guide rails.

For applications where other linear guides tend to warp due to imprecise substructures.

Specifications

Shaft diameter d [mm]	30.0
Material shaft support rails	Steel
Length L [mm]	600.0
Weight [kg]	8.3
Product information	Please ask for delivery time!

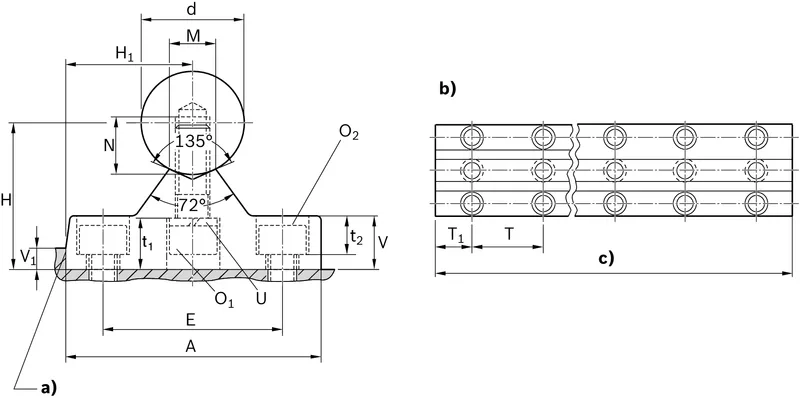

Dimension A (profiled rail systems) [mm]	80
Dimension E [mm]	55
Dimension H js7 [mm]	50
Dimension H1 js7 [mm]	40
Dimension M [mm]	13
Dimension O1 thread x lead [mm]	M10x30
Dimension O2 thread diameter	M10
Dimension t1 [mm]	22
Dimension t2 [mm]	13.5
Dimension U [mm]	10
Dimension V [mm]	19
Dimension V1 [mm]	7
