Bosch Rexroth R039660577

LOCATING RING D=12/7 &

MPN: R039660577
Category: Mechanical accessories for linear axes

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R039660577?

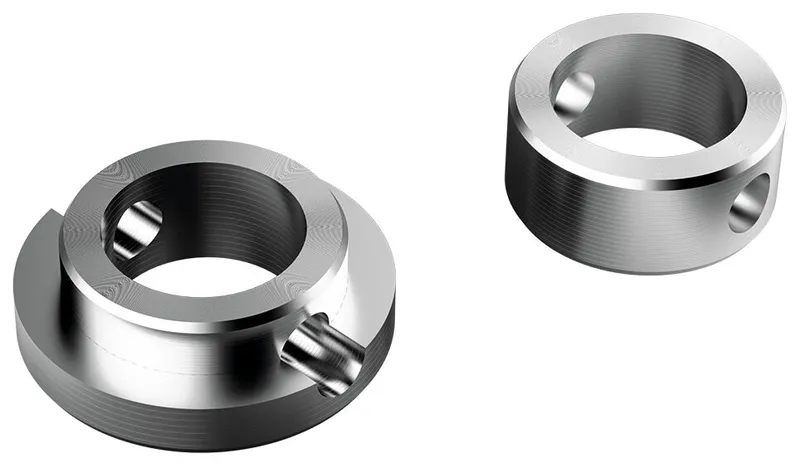

Bosch Rexroth LOCATING RING D=12/7 &, manufacturer part number R039660577. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

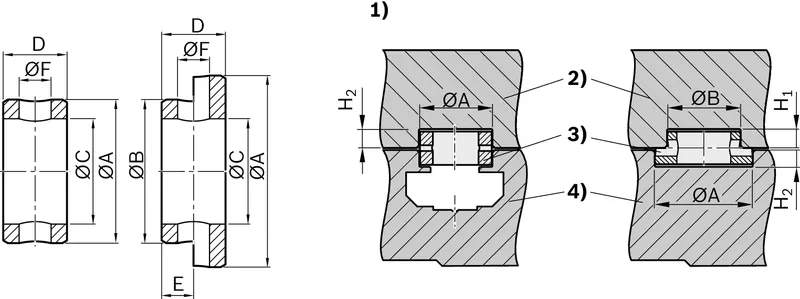

Specifications

Mechanical accessories for linear axes	Centering rings
Nominal size [mm]	12 - 7
Outer diameter D [mm]	3.5
Weight [kg]	0.01
Footnote fastening site	Applies to size OBB-055; end block for size OBB-120
Module	MKK-040/MKR-040; OBB-055/OBB-120
Dimension A H7/k6 [mm]	12
Dimension B H7/k6 [mm]	7
Dimension C [mm]	5.5
Tolerance C	±0.1
Dimension D [mm]	3.5
Tolerance D [mm]	-0.2
Dimension E [mm]	1.5
Dimension E tolerance [mm]	+0.2
Dimension F [mm]	1.6
Dimension H1 (profiled rail systems) [mm]	2.1
Dimension H2 tolerance [mm]	+0.2
