Bosch Rexroth R039660549
LOCATING RING D=9/7 &
- MPN
- R039660549
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

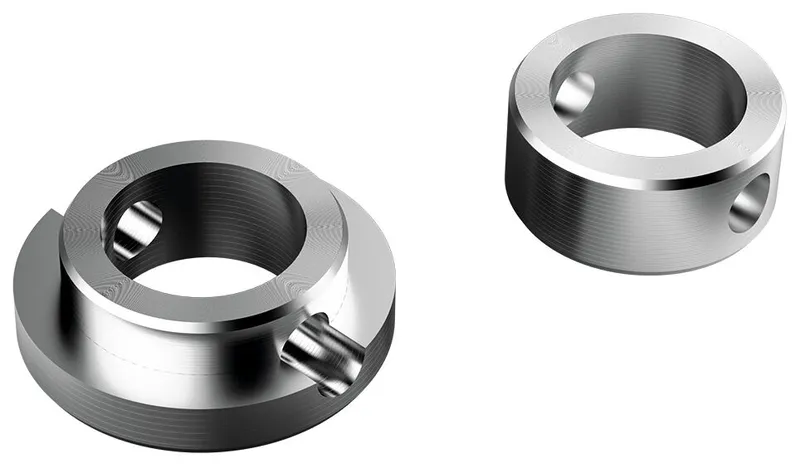

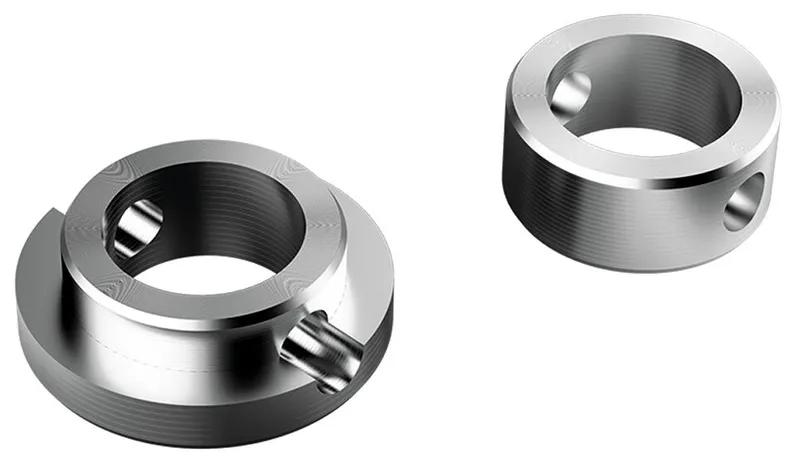

What is the Bosch Rexroth R039660549?
Bosch Rexroth LOCATING RING D=9/7 &, manufacturer part number R039660549. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

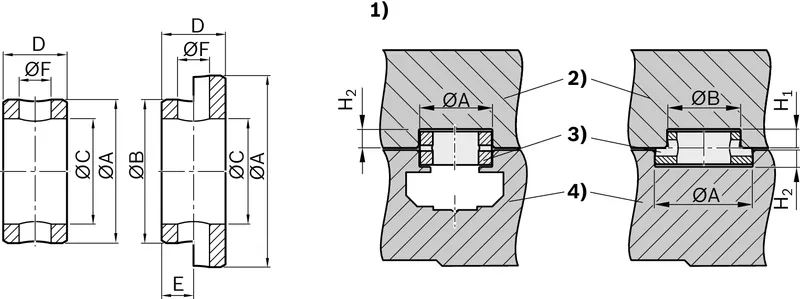

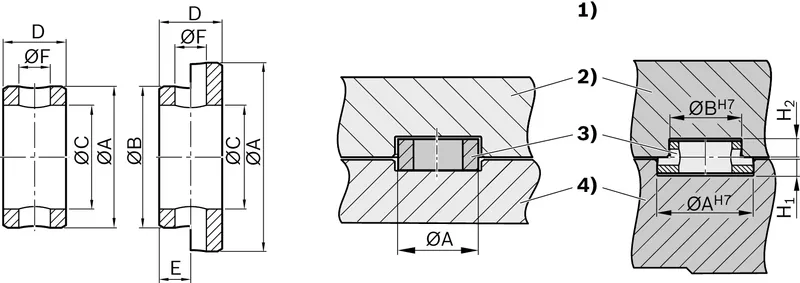

Specifications
Specifications
| Mechanical accessories for linear axes | Centering rings |
| Nominal size [mm] | 9-7 |
| Outer diameter D [mm] | 3.5 |
| Weight [kg] | 0.01 |
| Module | MKK-040/MKR-040; OBB-055/OBB-085 |
| Dimension A H7/k6 [mm] | 9 |
| Dimension B H7/k6 [mm] | 7 |
| Dimension C [mm] | 5.5 |
| Tolerance C | ±0.1 |
| Dimension D [mm] | 3.5 |
| Tolerance D [mm] | -0.2 |
| Dimension E [mm] | 1.5 |
| Dimension E tolerance [mm] | +0.2 |
| Dimension F [mm] | 1.6 |
| Dimension H1 (profiled rail systems) [mm] | 2.1 |
| Dimension H1 tolerance [mm] | +0.2 |
| Dimension H2 (profiled rail systems) [mm] | 1.6 |
| Dimension H2 tolerance [mm] | +0.2 |
No matching specifications
R039660549: frequently asked questions
When can R039660549 be shipped?
R039660549 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R039660549 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R039660549 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R039660549, subject to availability and destination.
