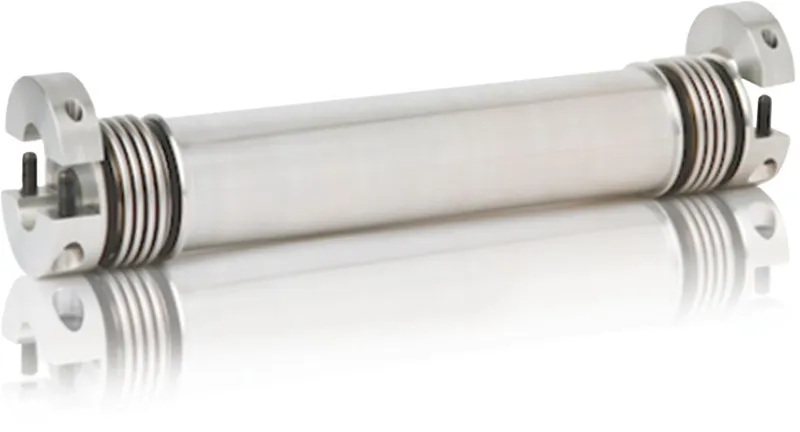

Bosch Rexroth R039151016
CONNECTING SHAFT CKR 12-90
- MPN
- R039151016
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Bosch Rexroth R039151016?
Bridge large distances between axes
Can be mounted radially by split clamping hub
Mounting and removal without shifting the aligned axes
Backlash-free and torsionally stiff
Specifications
Specifications
| Mechanical accessories for linear axes | Connecting shafts |
| Nominal size [mm] | 90 |
| Tightening torque [Nm] | 5 |
| Outer diameter D [mm] | 10.0 |
| Weight [kg] | 0.47 |
| Mass m | 0.0009 · (L<sub>cs</sub> (mm) - 80) + 0.21 |
| Mass moment of inertia | 0.032 · (L<sub>cs</sub> (mm) - 80) + 68.2 |
| Rated torque of connecting shaft Mcs [Nm] | 10 |
| Peak torque of connecting shaft Ms [Nm] | 17 |

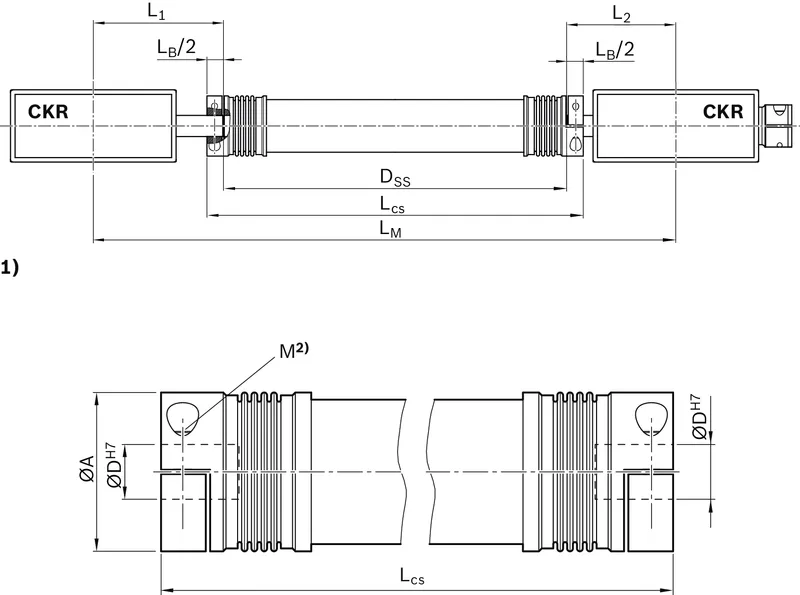

| Dimension A (profiled rail systems) [mm] | 40 |
| Dimension D [mm] | 10 |
| Dimension thread M | M4 |
| Dimension LB [mm] | 22 |
| Dimension Lcs max. [mm] | 3000 |
| Dimension Lcs min. [mm] | 105 |
