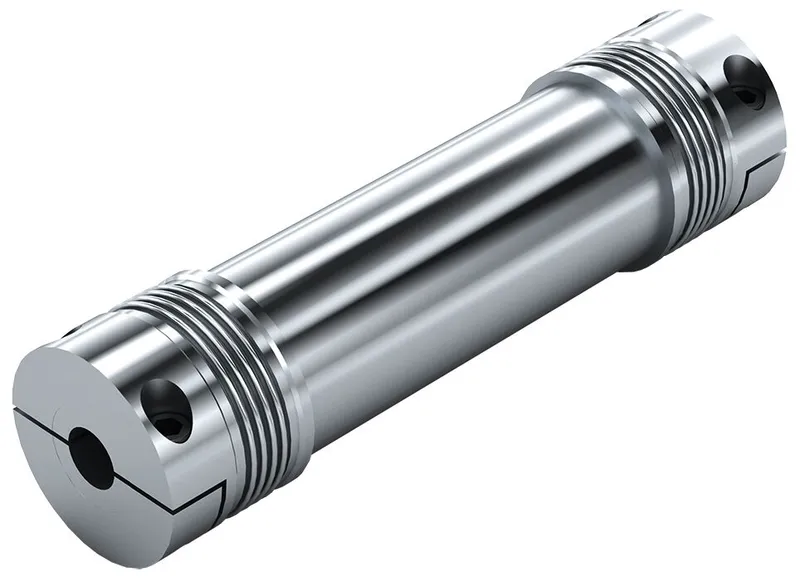

Bosch Rexroth R039151015
CONNECTING SHAFT MKR-065
- MPN
- R039151015
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Bosch Rexroth R039151015?
Compensation of misalignments
Backlash-free and torsionally stiff
Bridge large distances between axes
Clamping hub (mounting and removal without shifting aligned axes)
Dynamically balanced as per VDI 2060
Specifications
Specifications
| Mechanical accessories for linear axes | Connecting shafts |
| Nominal size [mm] | 65 |
| Outer diameter D [mm] | 16.0 |
| Torque [Nm] | 25 |
| Weight [kg] | 1.17 |

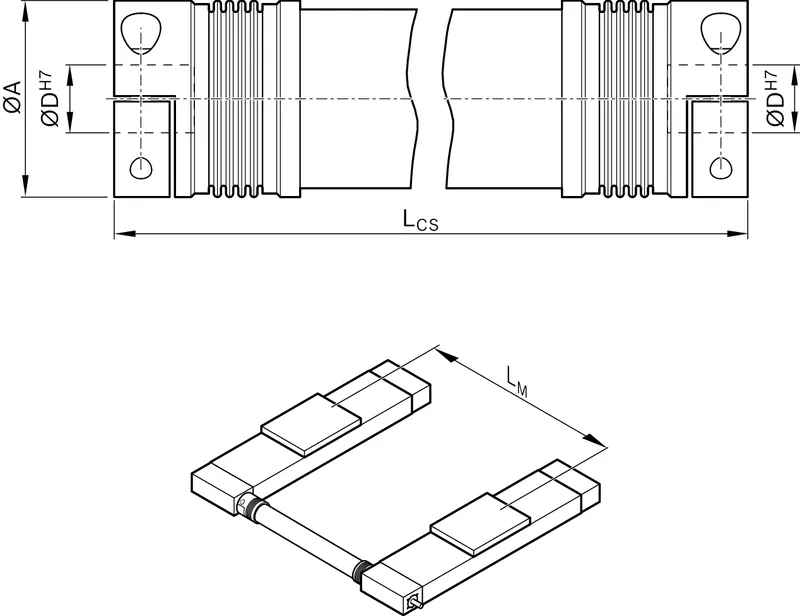

| Overall length of the connecting shaft Lcs | LM – 105 mm |
| Mass m | 0.62 + 0.0012 x (L<sub>cs</sub> – 120) |
| Mass moment of inertia | 245 + 0.663 x (L<sub>cs</sub> – 120) |
| Shaft design for connecting shafts | 5 |
| Dimension A (profiled rail systems) [mm] | 55 |
| Dimension D [mm] | 16 |
| Dimension Lcs max. [mm] | 3000 |
| Dimension Lcs min. [mm] | 148 |
No matching specifications
R039151015: frequently asked questions
When can R039151015 be shipped?
R039151015 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R039151015 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R039151015 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R039151015, subject to availability and destination.
