Bosch Rexroth R037541002
CLAMPING PIECE CKX 15-110
- MPN
- R037541002
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R037541002?
Bosch Rexroth CLAMPING PIECE CKX 15-110, manufacturer part number R037541002. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Mechanical accessories for linear axes | Clamping fixtures |
| Nominal size [mm] | CKK-/CKR-110/145; VKK-070 |
| Type | 3 |
| Number of bores N | 4 |
| Tightening torque of fastening screws [Nm] | 5.5 |
| Outer diameter D [mm] | 11.5 |
| Weight [kg] | 0.05 |
| Tightening torque of fixing screws footnote | at friction factor 0.125, in accordance with strength class 8.8 |

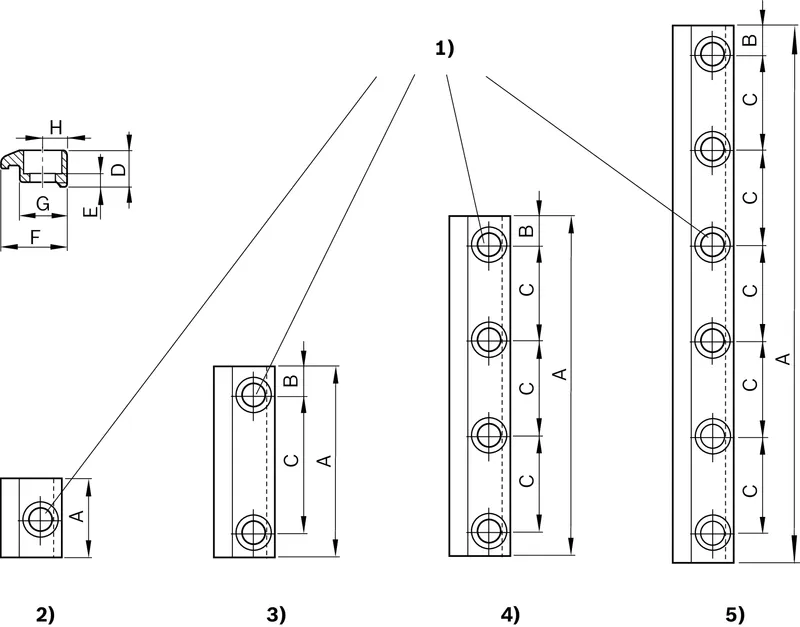

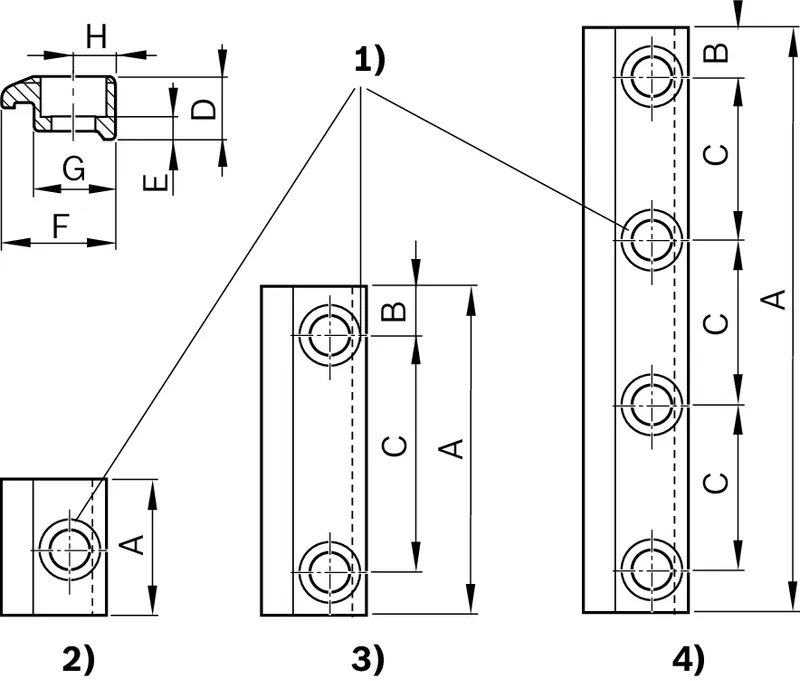

| Dimension A (profiled rail systems) [mm] | 107 |
| Dimension B (profiled rail systems) [mm] | 8.5 |
| Dimension C [mm] | 30 |
| Dimension D [mm] | 11.5 |
| Dimension E [mm] | 4.8 |
| Dimension F [mm] | 19.3 |
| Dimension G [mm] | 14 |
| Thread Dimension | M5 |
| Dimension H [mm] | 7.0 |
| Footnote Dimension for thread | Countersink ISO 4762 |
R037541002: frequently asked questions
When can R037541002 be shipped?
R037541002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R037541002 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R037541002 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R037541002, subject to availability and destination.
