Bosch Rexroth R037540011

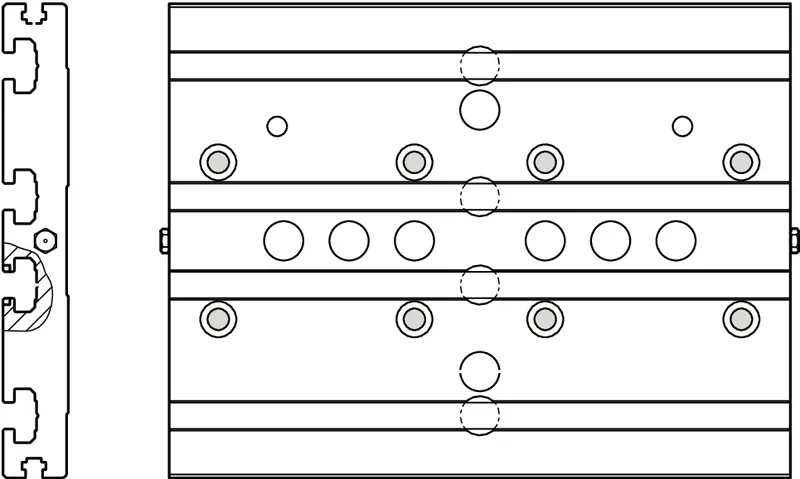

CONNECTING PLATE CKR 15-110 BG

MPN
R037540011
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R037540011?

Fastening of attachments (with sliding blocks)

Lubrication of the ball rail system and the ball screw assembly possible via the connection plate

Specifications

Specifications

Mechanical accessories for linear axesConnection plates
Nominal size [mm]110
Weight [kg]0.57
Length of the carriage Lca [mm]155
Lubrication typeLCF, LCO

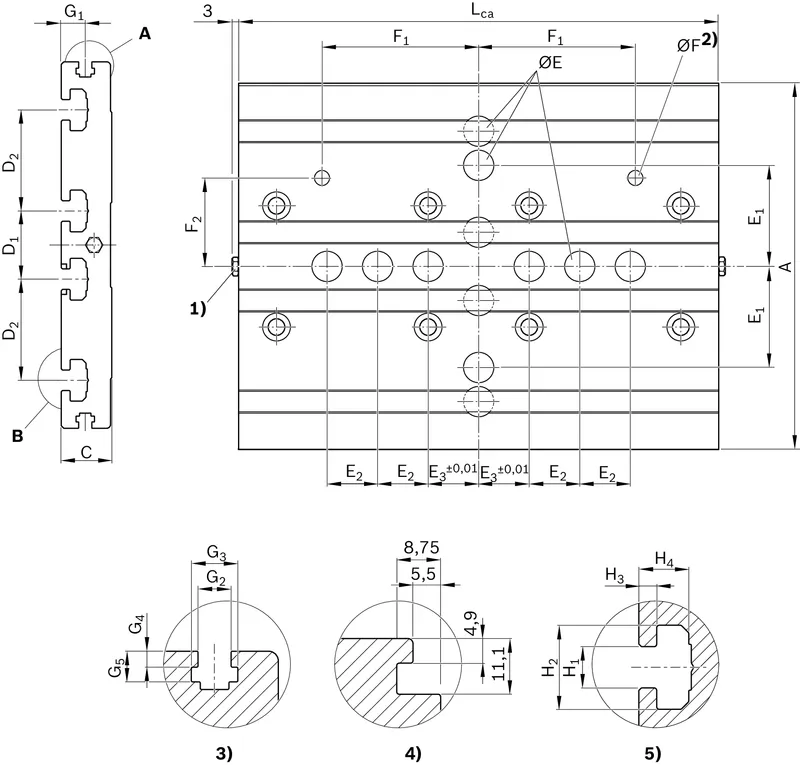

Dimension A (profiled rail systems) [mm]110
Dimension C [mm]16
Dimension D [mm]8.5
Dimension D1 [mm]20
Dimension D2 [mm]20
Dimension E H7 [mm]9
Dimension E H7 thread depth [mm]2.1
Dimension E H7 thread depth (text)deep
Dimension E H7 with thread depth9 mm ‒ 2.1 mm deep
Dimension E2 [mm]10
Dimension E2 tolerance [mm]±0.01
Dimension E3 (profiled rail systems) [mm]20
Dimension E3 tolerance [mm]±0.01
Dimension F H7 [mm]5
Dimension F H7 thread depth [mm]6.5
Dimension F H7 thread depth (text)deep
Dimension F H7 with thread depth5 mm ‒ 6.5 mm deep
Dimension F1 [mm]46
Dimension F1 tolerance [mm]±0.01
Dimension F2 [mm]42
Dimension F2 tolerance [mm]±0.01
Dimension G1 [mm]9.5
Dimension G2 [mm]5.2
Dimension G3 [mm]7.3
Dimension G4 [mm]2.5
Dimension G5 [mm]4.8
Dimension H1 (profiled rail systems) [mm]6
Dimension H2 (profiled rail systems) [mm]12
Dimension H3 [mm]3.5
Dimension H4 [mm]7.7
Dimension H5 [mm]40
Dimension H6 [mm]12.5
Dimension H8 [mm]3
