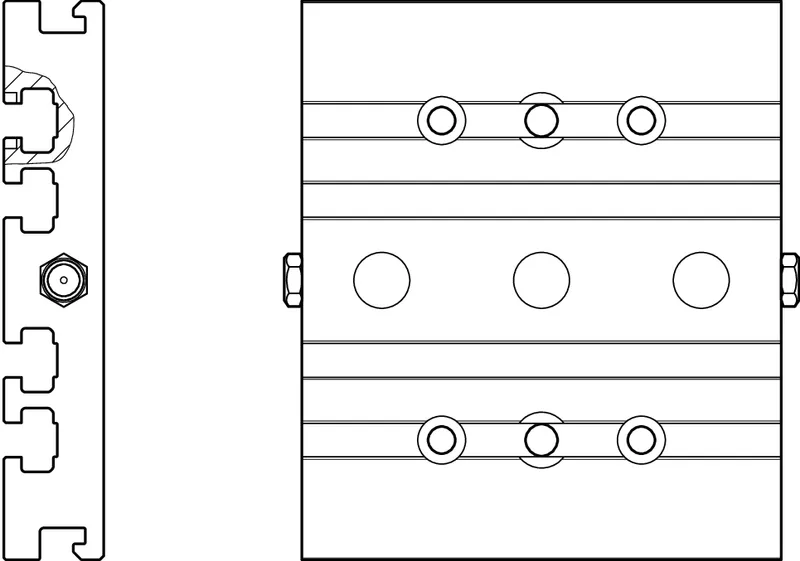

Bosch Rexroth R037520015
CONNECTING PLATE CKK 9-70 BG
- MPN
- R037520015
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Bosch Rexroth R037520015?
Fastening of attachments (with sliding blocks)
Lubrication of the ball rail system and the ball screw assembly possible via the connection plate
For lube version LSS, LPG
Specifications
Specifications

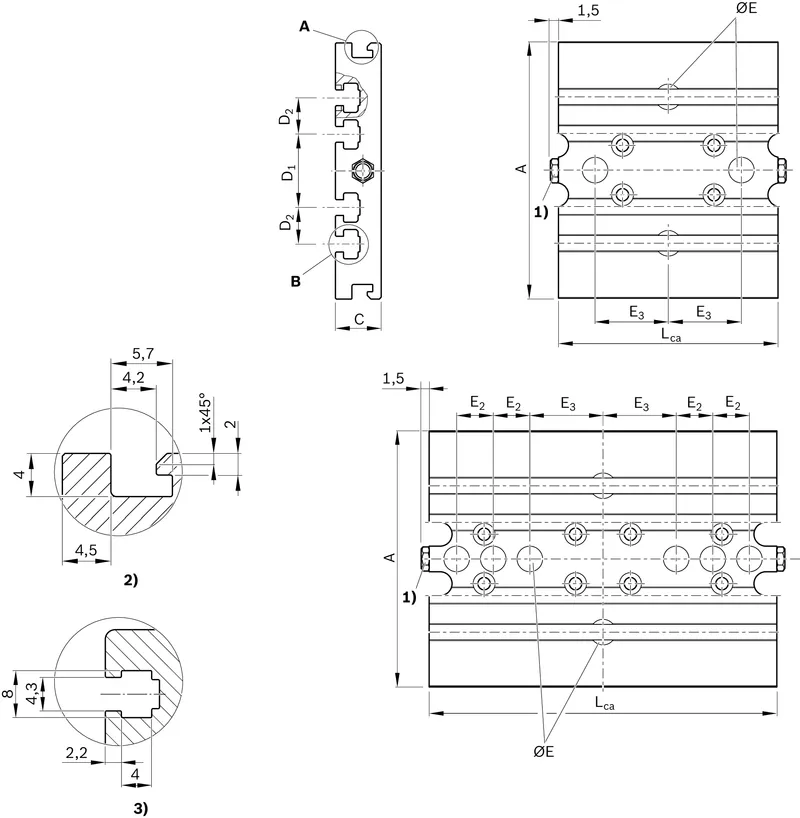

| Mechanical accessories for linear axes | Connection plates |
| Nominal size [mm] | 070 |
| Weight [kg] | 0.12 |
| Length of the carriage Lca [mm] | 60 |
| Dimension A (profiled rail systems) [mm] | 70 |
| Dimension C [mm] | 12.5 |
| Dimension D1 [mm] | 20 |
| Dimension D2 [mm] | 10 |
| Dimension E H7 [mm] | 7 |
| Dimension E H7 thread depth [mm] | 1.6 |
| Dimension E H7 thread depth (text) | deep |
| Dimension E H7 with thread depth | 7 mm ‒ 1.6 mm deep |
| Dimension E2 [mm] | 10 |
| Dimension E2 tolerance [mm] | ±0.01 |
| Dimension E3 (profiled rail systems) [mm] | 20 |
| Dimension E3 tolerance [mm] | ±0.01 |
| Dimension EH7 thread depth tolerance [mm] | +0.2 |
