Bosch Rexroth R037520010

CONNECTING PLATE CKK 9-70 BG

MPN
R037520010
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R037520010?

Fastening of attachments (with sliding blocks)

Lubrication of the ball rail system and the ball screw assembly possible via the connection plate

For lube version LSS, LPG

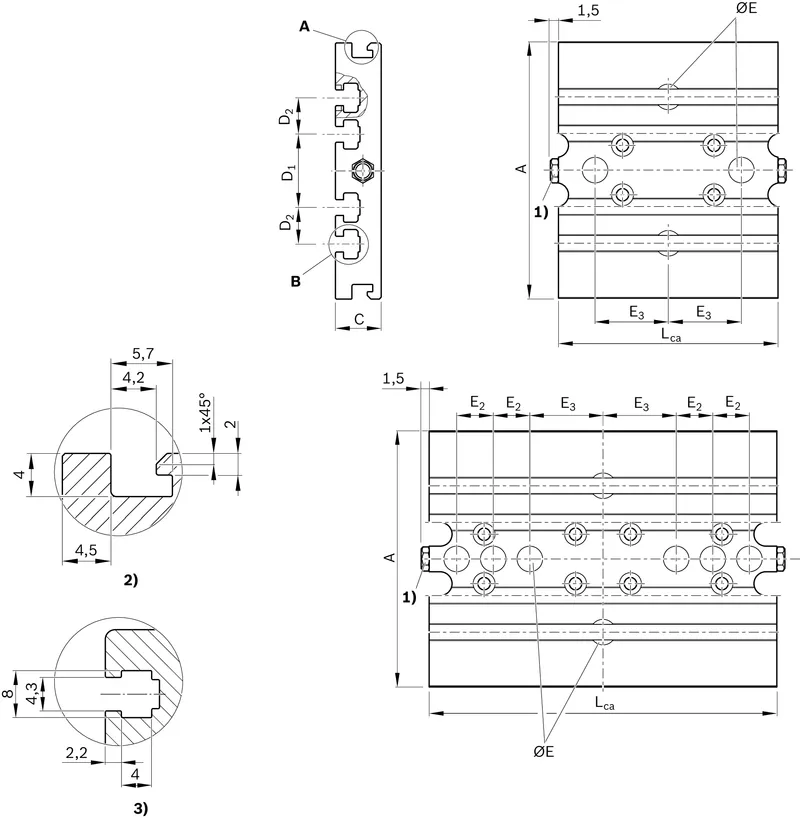

Specifications

Specifications

Mechanical accessories for linear axesConnection plates
Nominal size [mm]070
Weight [kg]0.17
Length of the carriage Lca [mm]95
Dimension A (profiled rail systems) [mm]70
Dimension C [mm]12.5
Dimension D1 [mm]20
Dimension D2 [mm]10
Dimension E H7 [mm]7
Dimension E H7 thread depth [mm]1.6
Dimension E H7 thread depth (text)deep
Dimension E H7 with thread depth7 mm ‒ 1.6 mm deep
Dimension E2 [mm]10
Dimension E2 tolerance [mm]±0.01
Dimension E3 (profiled rail systems) [mm]20
Dimension E3 tolerance [mm]±0.01
Dimension EH7 thread depth tolerance [mm]+0.2

R037520010: frequently asked questions

When can R037520010 be shipped?

R037520010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R037520010 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R037520010 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R037520010, subject to availability and destination.
