STOP GATE VE 5/D-1000

Name: STOP GATE VE 5/D-1000
Brand: Bosch Rexroth
SKU: 3842998805

MPN: 3842998805 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Stop gate TS 5
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842998805 be shipped?

3842998805 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842998805 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842998805 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842998805, subject to availability and destination.

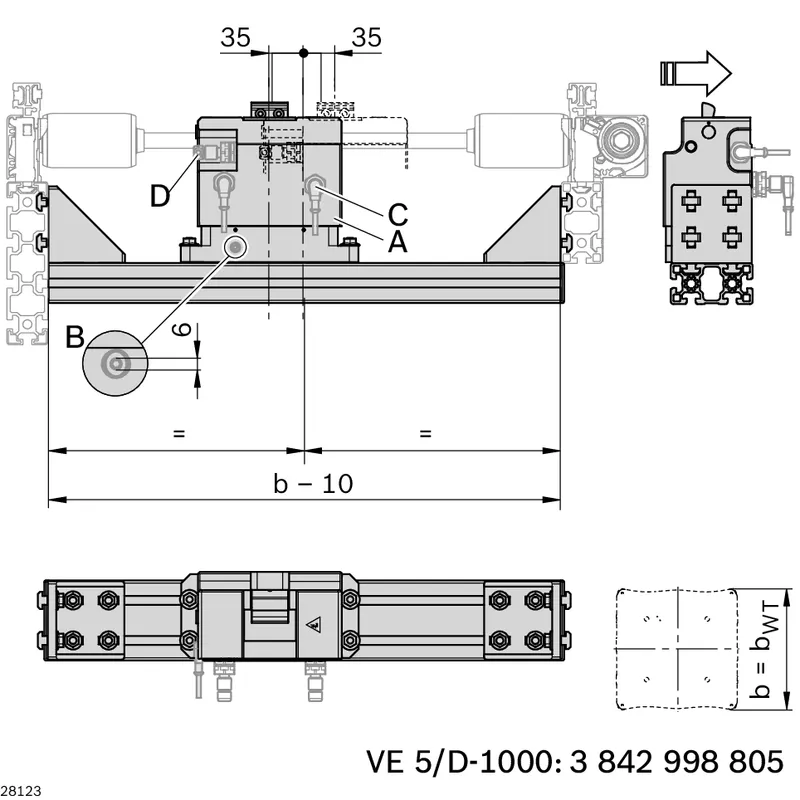

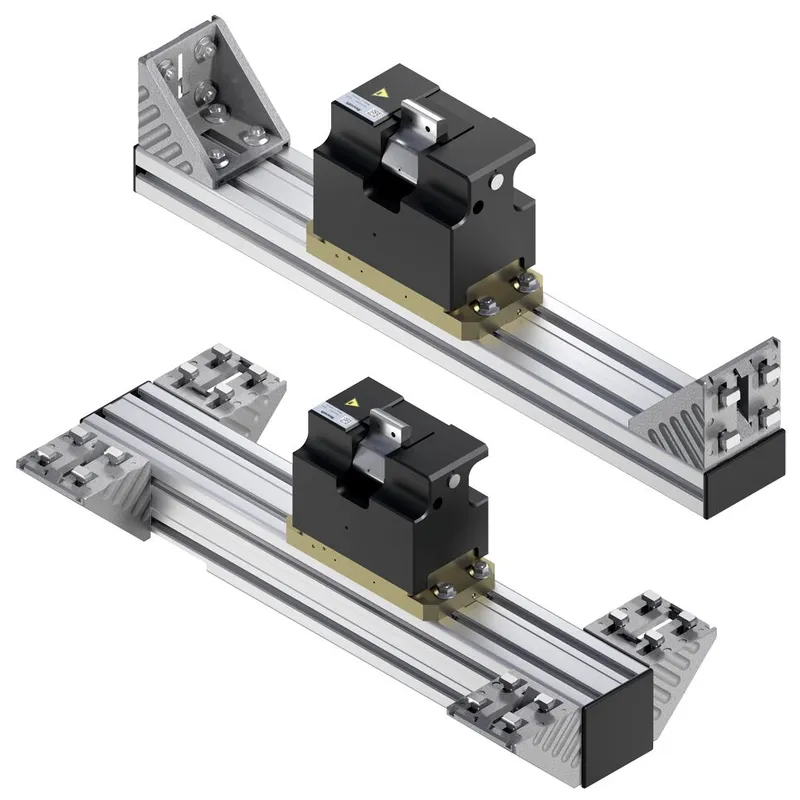

VE 5/D-1000 stop gate Please note that in the limit ranges of the permissible weight/speed combinations, the damping behavior may not be optimal. Oil-damped stopping of one or more accumulating workpiece pallets at the defined workpiece pallet stop surface. Pneumatic stop gate. When the pressure is released the stop gate is closed by a spring and the workpiece pallet is stopped. Compressed air connection: 5 ... 6 bar Pneumatic connection, pushlock Ø 6 mm

Specifications

required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	5
Mass [m] [kg]	50
Nominal speed [vN]	12 m/min; 18 m/min; 9 m/min
Pneumatic straight connection [Ø] [mm]	6
Workpiece pallet total weight [mG] [kg]	1000; 700; 900
Track width [b] [mm]	1040; 455; 650; 845
Scope of delivery	Incl. fastening material for installation on conveyor section; Push in air connection ø 6 mm
Delivery information	Not assembled
Recommended accessories	2x or 3x sensors 3 842 549 811 or 3 842 549 814 for<br/> - Stop gate position inquiry (engaged, top position)<br/> - Stop gate position inquiry (not engaged, bottom position)<br/>- Damper position inquiry (latch retracted: yes/no, only possible if la = 2)<br/>- Clamping holder for sensor<br/>- Trap guard<br/>
Weight [kg]	0
