Bosch Rexroth 3842998796

SLIDE STOP VA 2/D-250

MPN: 3842998796
Category: Slide stops

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998796?

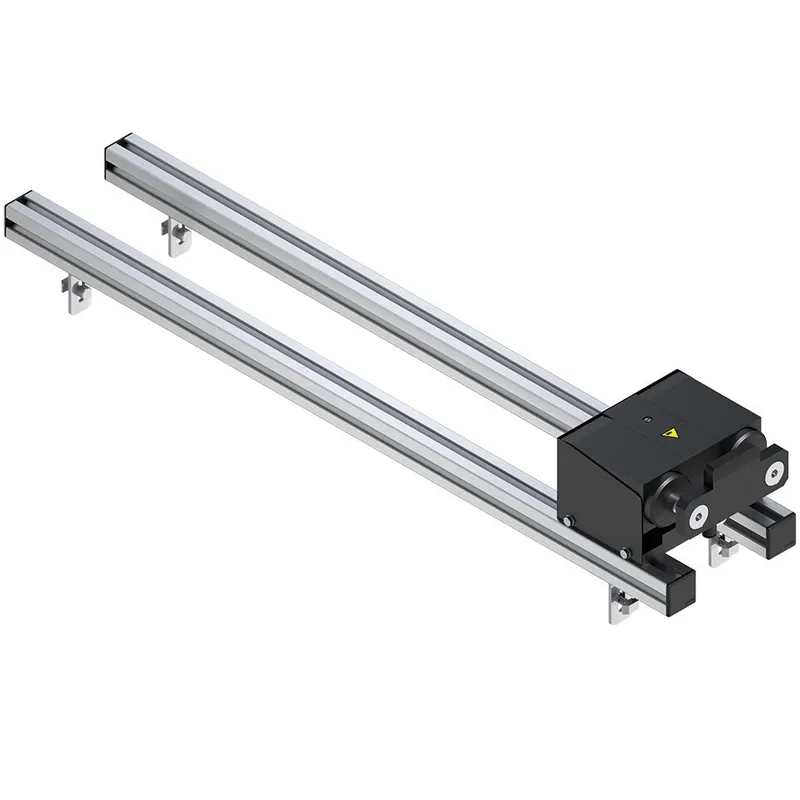

Slide stop, can be lowered pneumatically, damped stop only for use with HQ 2/C-H

Slide stop; can be lowered pneumatically, dampened stop, for use with HQ 2/C-H (minimum transverse width from b Q = 480 mm, minimum width lengthwise from b L = 640 mm)

Stopping on the inside of the WT frame module

Infinitely adjustable damping

When the pressure is released by a spring into the lock position

Can be combined with WT 22/H and WT 2/F-H

Notice: Combination with WT 2/LS not possible

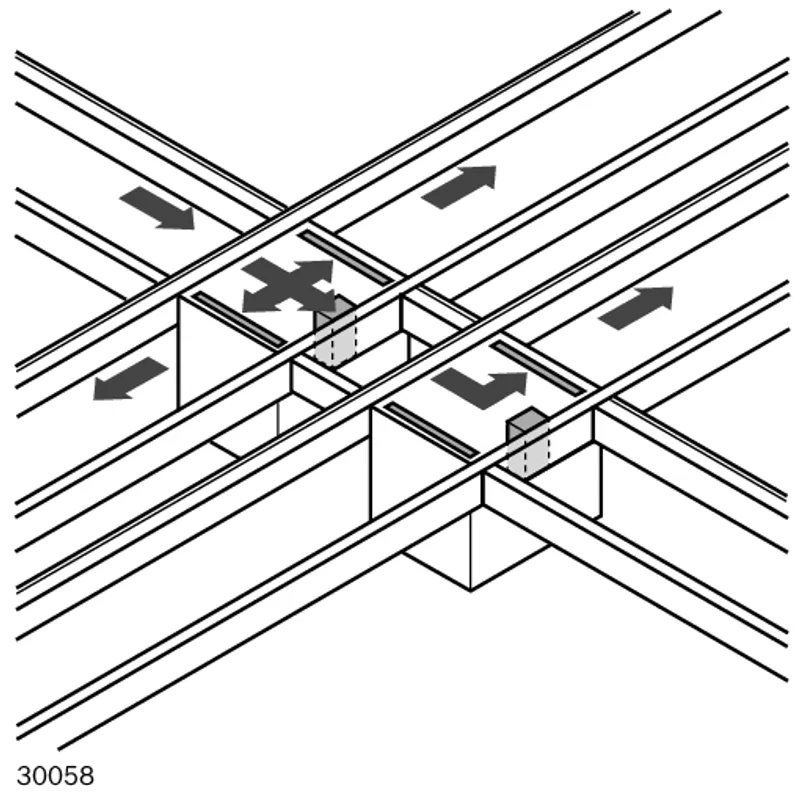

The slide stop is used in a transverse section that connects more than two longitudinal sections and that requires supplementary stops

A lift transverse unit can feed in the workpiece pallet onto the longitudinal section when the slide stop is activated

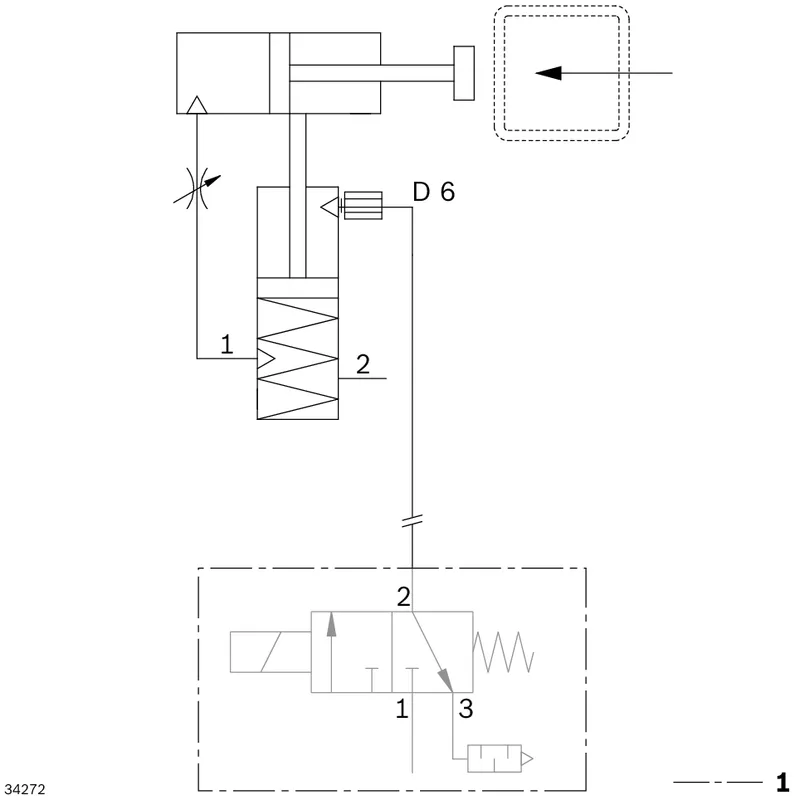

When depressurized, the pneumatically adjustable slide stop is extended to the upper end position

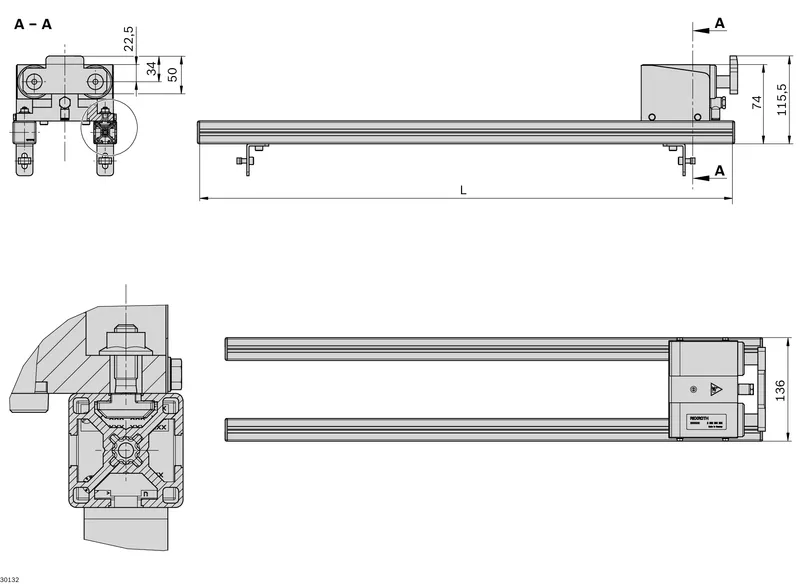

Mounting inside the lift transverse unit HQ 2/C-H

Specifications

Condition on delivery	Not assembled
ESD	Yes
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Operating temperature [T] max	-20 ... +80 °C
Workpiece pallet total weight [mG] [kg]	250
Pneumatic straight connection [Ø] [mm]	6
Workpiece pallet length [lWT] [mm]	400
Track width in the longitudinal conveyor min [bL min] [mm]	480
Track width in the longitudinal conveyor [bL max] [mm]	1200
Scope of delivery	Incl. all fastening material to mount on ST 2/... conveyor section; Right-angle connector for the air connections in Quickfix design
Notice	High-temperature stop gate on request
Preferred values [mm]	1040; 1200; 480; 640; 800
Material information	Housing: Aluminum, hard anodized; Stop: Steel, hardened
Recommended accessories	Sensor M8x1
Weight [kg]	0
