What is the Bosch Rexroth 3842996463?

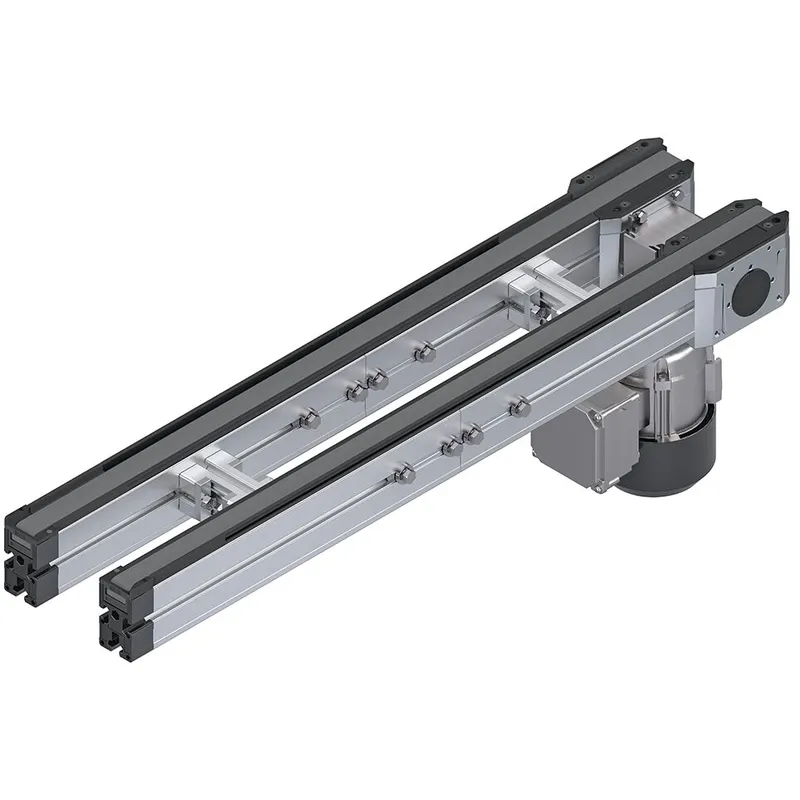

BS 2/S belt section

The belt section is a ready-to-use conveyor section with built-in drive for the transportation of workpiece pallets in the longitudinal direction or for the transverse conveying of the workpiece pallet between parallel conveyor sections in conjunction with two HQ 2 lift transverse units.

Segmented belt section with the possibility of up to 3 additional cuts in the longitudinal profile

Connection with standard profile connectors

This allows flexible individual parts of the belt section to be removed

This also causes simpler handling and more efficient transportation of the belt sections

Accumulation operation possible

Conveyor medium: Toothed belt (suitable for use in an EPA)

Reversible operation possible

Can be combined with WT 2, WT 2/E, WT 2/F, WT 2/LS

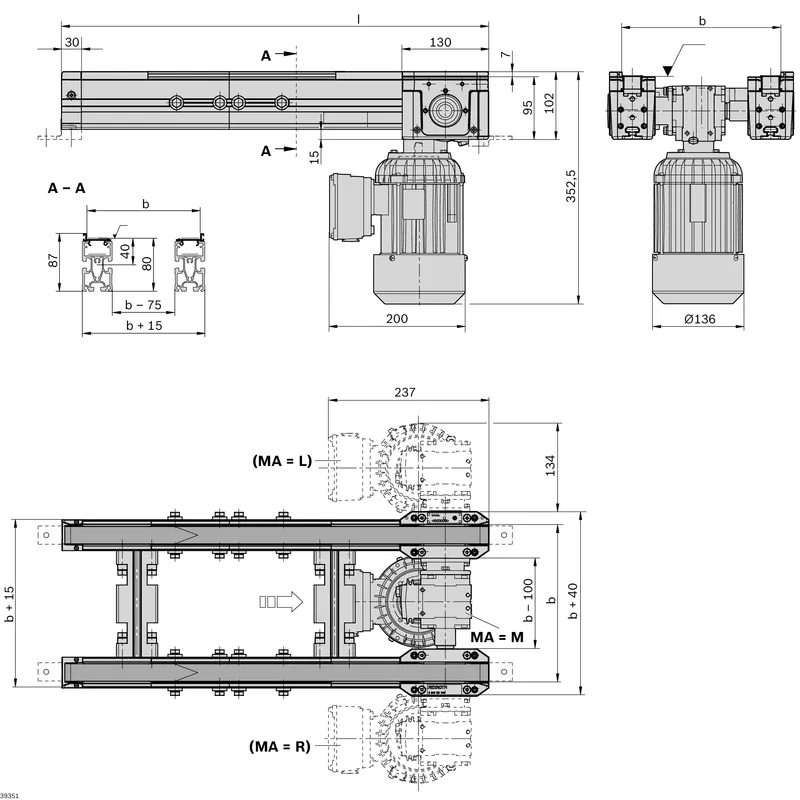

Motor mounting on right, left or centrally (centrally on track widths of 240 mm and above)

Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K)

Special models on request

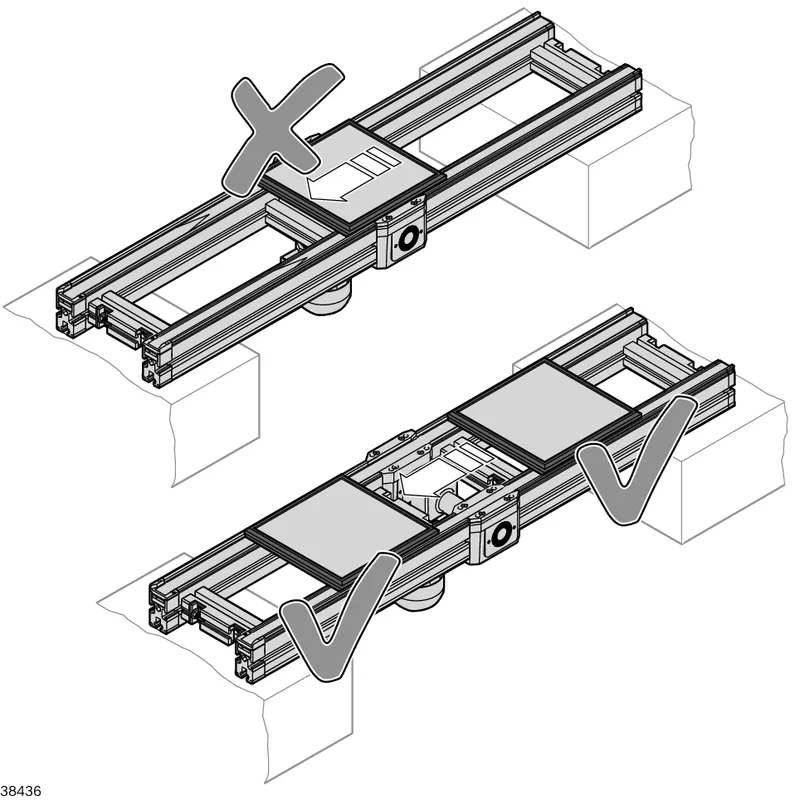

Positioning of WTs in the area of the drive heads/return heads is not permitted.

Specifications

ESD	Yes
Length max [l max] [mm]	900
Length min [L min] [mm]	6000
Track width in direction of transport [b max] [mm]	1200
Track width in direction of transport [b min] [mm]	160
Section load in accumulation operation [kg]	60
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Delivery information	Fully assembled
Notice	Individual width variants can be ordered; When MA = M and b = 160 mm, the max. section load is only 30 kg
Material information	Glide profile: Polyamide; Guide profile: Polyamide; Section profile: Aluminum, natural; anodized

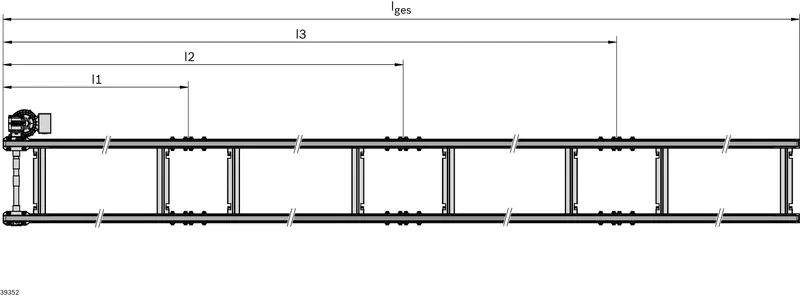

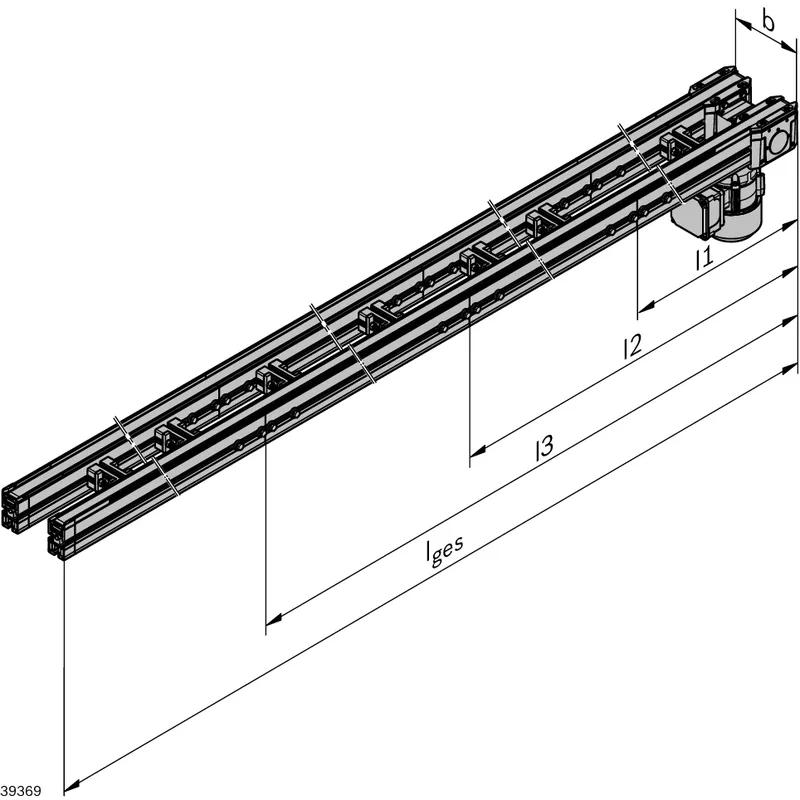

Length min [l1] [mm]	450
Length max [l1] [mm]	5550
Length [l2] [mm]	0; 900 ... 5500
Length [l3] [mm]	0; 1350 ... 5500
Length [lges min] [mm]	900
Length [lges max] [mm]	6000
Conveyor medium	Toothed belt (suitable for use in an EPA)
Recommended accessories	Connection kits for longitudinal conveyors; Leg sets SZ 2/...
Weight [kg]	0
