What is the Bosch Rexroth 3842996370?

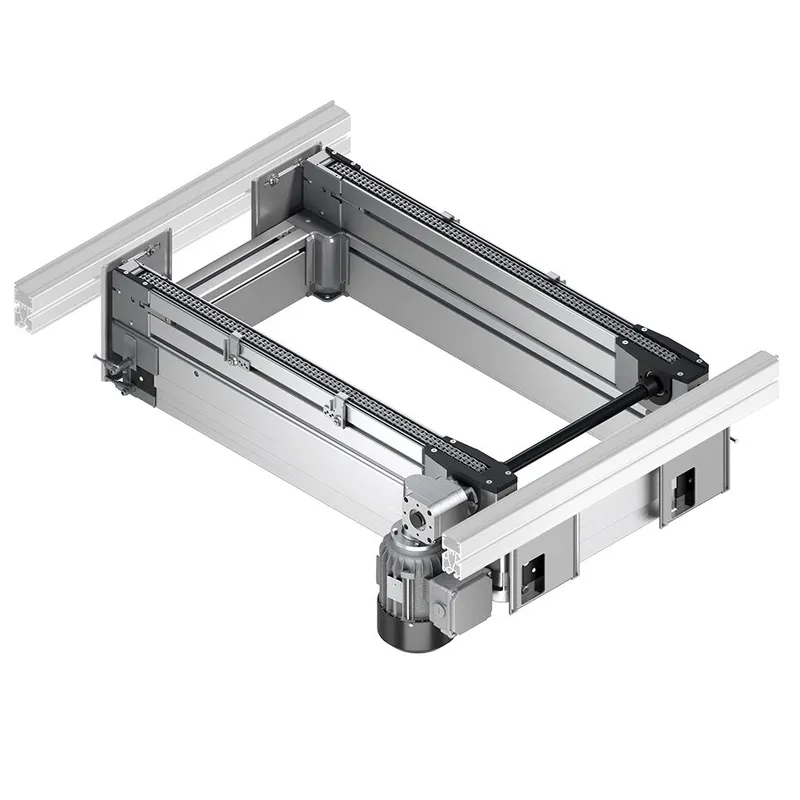

Lift transverse unit HQ 2/G-H

Lift transverse unit for feeding out of a from longitudinal section into a transverse section and vice versa

The particularly compact design permits system layouts on several levels when space is limited

Use for high total weights up to 2 kg/cm on the smallest side of the workpiece pallet and up to 240 kg

Synchronized lifting movement of the four block cylinders for uniform and parallel lifting movement

Integrated chain tensioner; to be adjusted manually

Conveyor medium: Duplex chain (suitable for use in an EPA)

Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm

Depending on the installation, height-adjustable lateral guides can be used as a fixed stop for exporting or as a lateral guide when changing workpiece pallets

Fixed stops in the form of adjustable/movable lateral guides made of strip steel

Can be combined with WT 2, WT 2/E and WT 2/F

Accumulation operation not permitted

Reversible operation possible

Only workpiece pallets with PE wear pad are permitted

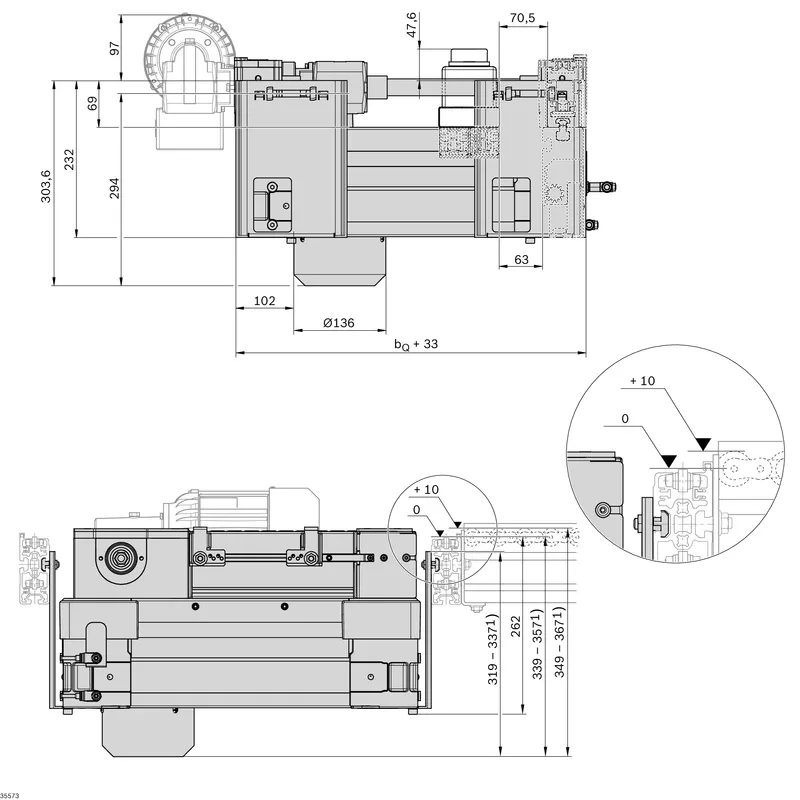

Specifications

ESD	Yes
Dry room [%rF]	<1
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Combination options bQ x bL	480 ... 1200 x 640 ... 1200
Nominal speed [vN]	0 m/min; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	240
Pneumatic straight connection [Ø] [mm]	8
Track width in the transverse conveyor min [bQ min] [mm]	480
Track width in the transverse conveyor max [bQ max] [mm]	1200
Track width in the longitudinal conveyor min [bL min] [mm]	640
Track width in the longitudinal conveyor [bL max] [mm]	1200
Scope of delivery	Assembly kit for electrical position inquiry; Incl. fastening material; Lateral guide kit for b<sub>l</sub> ≤ 640 mm or for b<sub>l </sub>> 640 mm; Switch holder for 12 mm sensor for position inquiry
Delivery information	Fully assembled; Kits for lateral guides included
Notice	Chain suitable for use in an EPA; Individual width variants available for track width in longitudinal conveyor; Individual width variants available for track width in transverse conveyor
Preferred values [mm]	1040; 1200; 480; 640; 800
Clean room classification	ISO class 7
Conveyor medium	Duplex chain (suitable for use in an EPA)
Required accessories	Dampers for outfeeding and infeeding workpiece pallets; M12x1 sensor for position inquiry
Recommended accessories	A fixed stop (included in the scope of delivery) or the DA 2/100-C damper can be used for infeeding the WT 2 and WT 2/F workpiece pallet. This is also possible in combination with rocker WI 2, WI 2/X, WI 2/D, WI 2/M.; Dampers DA 2/100-E, DA 2/150-E or a fixed stop (included in the scope of delivery) can be used for outfeeding the WT 2, WT 2/F, WT 2/H and 2/F-H workpiece pallets. Damper DA 2/100-C can be used at the belt end for outfeeding a WT 2 or WT 2/F workpiece pallet.; Dampers DA 2/100-H or DA 2/250-H for outfeeding of the workpiece pallets WT 2/H and WT 2/F-H; The DA 2/100-H and DA 2/250-H dampers can be used for infeeding the WT 2/H and WT 2/F-H workpiece pallets.
Weight [kg]	0
