Bosch Rexroth 3842994248

PROTECTION FRAME H VARIABLE HF

MPN: 3842994248
Category: EcoSafe protective frame

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842994248?

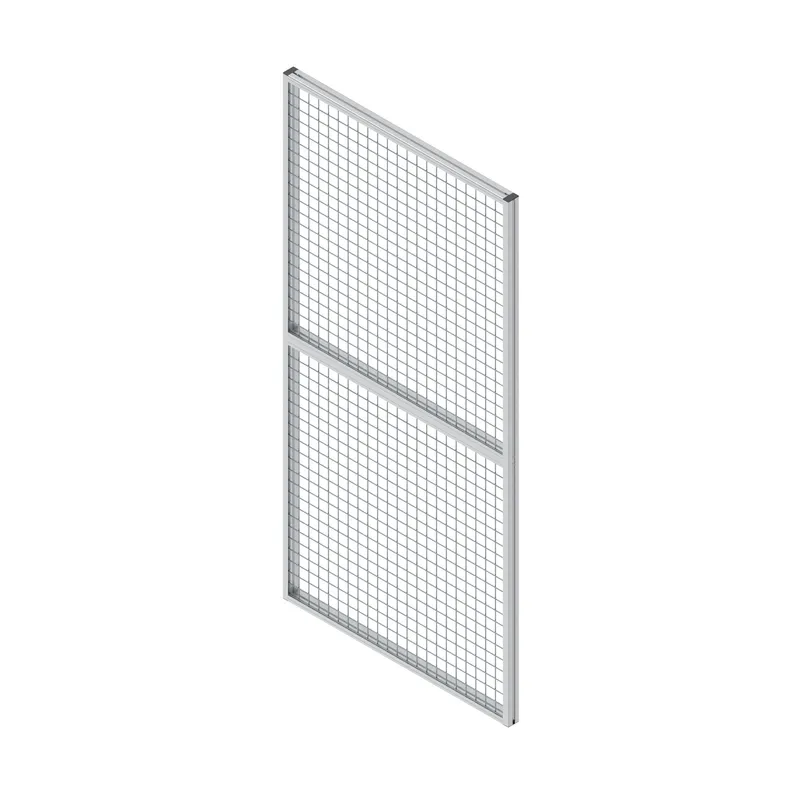

Suspension field, horizontal sections configurable

Protective frame made of frame profile 22.5x45 with spot-weld wire grille 40x40x3.8 for suspension fields

Suitable kits enable the construction of doors (system doors, sliding doors, double doors)

Protective frame completely mounted

Simple mounting on the supports using the suspension brackets. Single fitter is sufficient

Individual dimensions and colors (galvanized, yellow, black) configurable

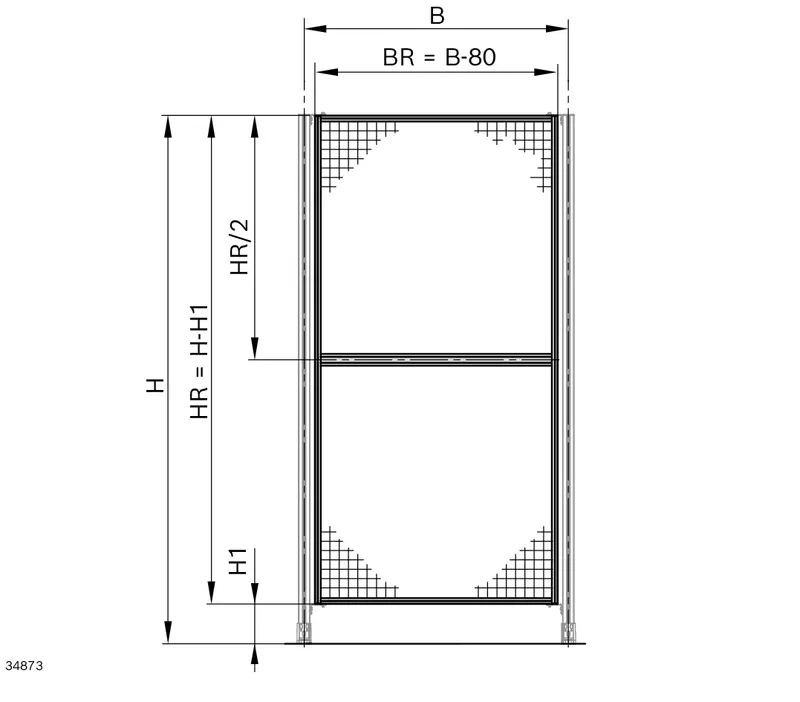

Horizontally divided protective frames provide additional stability for large surfaces

Color-coated grilles improve visual contrast in the protected area and facilitate recognition of access routes and emergency exit routes

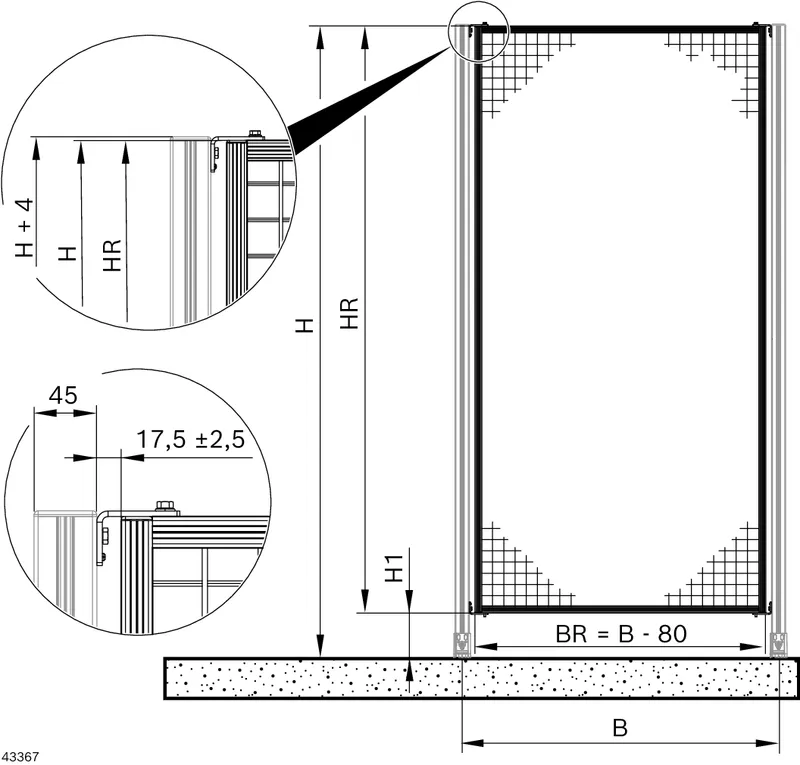

Modular dimension "B" relates to leg sets 45x45 (center of leg set)

Specifications

ESD	No
Protective frame height max [HR max] [mm]	2500
Protective frame height min [HR min] [mm]	500
Protective frame width max [B max] [mm]	2500
Protective frame width min [B min] [mm]	500
Scope of delivery	Protective frame
Delivery information	Fully assembled
Material information	Fastening material: Steel, galvanized; grille: Steel, galvanized or powder-coated; Frame: Aluminum, anodized
Grille color [FA]	hot-galvanized, black, yellow
Type	Suspension field
Type - frame profile	22.5x45; 45x45
Weight [kg]	0
