PROTECTION FRAME VARIABLE HF
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EcoSafe protective frame |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842994247 be shipped?
3842994247 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842994247 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842994247 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842994247, subject to availability and destination.

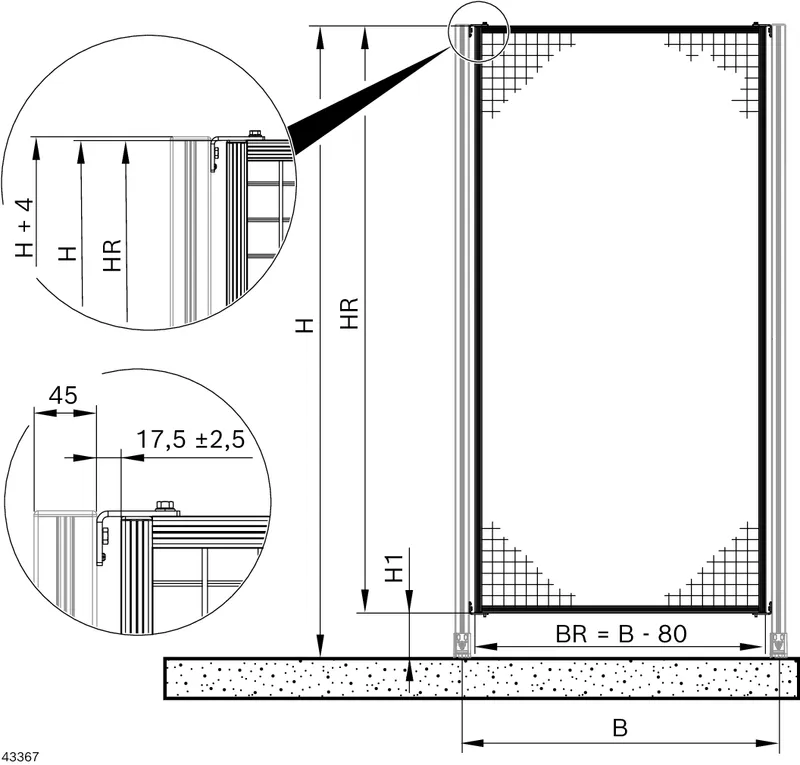

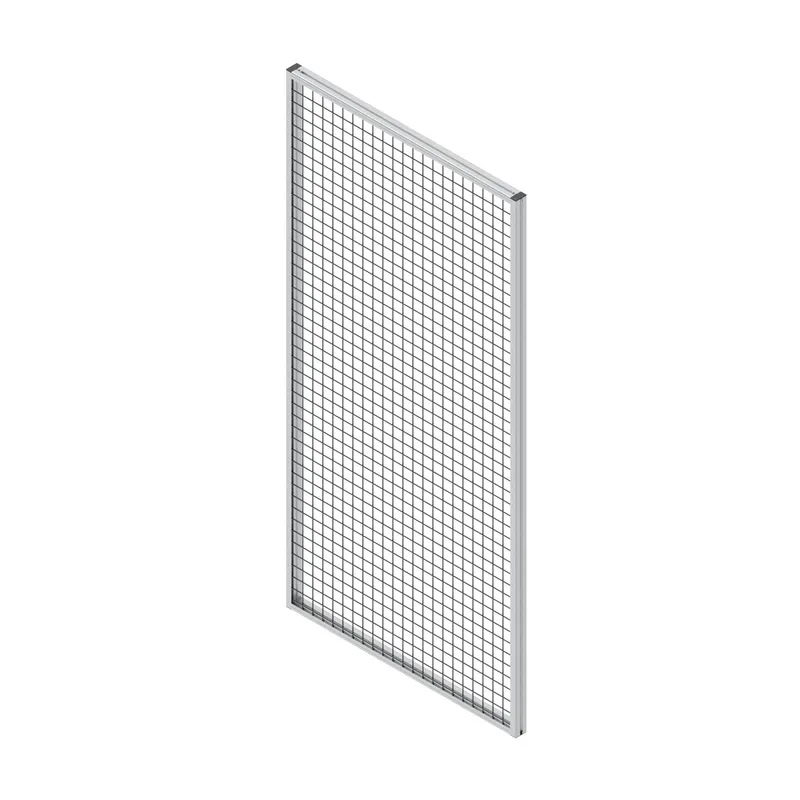

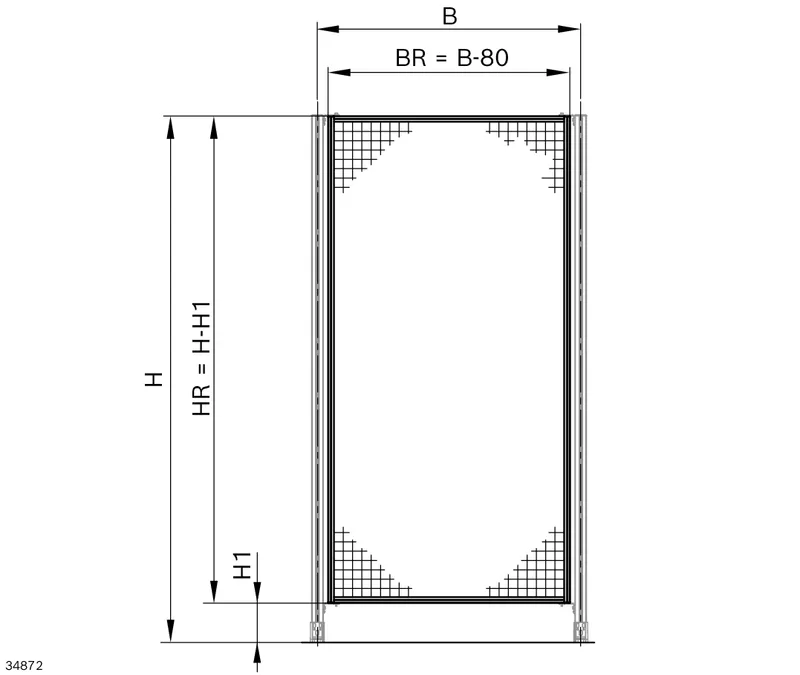

Suspension field configurable Protective frame made of frame profile 22.5x45 with spot-weld wire grille 40x40x3.8 for suspension fields Suitable kits enable the construction of doors (system doors, sliding doors, double doors) Without pitch Protective frame completely mounted Simple mounting on the supports using the suspension brackets. Single fitter is sufficient Individual dimensions and colors (galvanized, yellow, black) configurable Color-coated grilles improve visual contrast in the protected area and facilitate recognition of access routes and emergency exit routes Modular dimension "B" relates to leg sets 45x45 (center of leg set)
Specifications
Specifications
| ESD | No |
| Protective frame height max [HR max] [mm] | 2500 |
| Protective frame height min [HR min] [mm] | 400 |
| Protective frame width max [B max] [mm] | 1500 |
| Protective frame width min [B min] [mm] | 250 |
| Scope of delivery | Protective frame |
| Delivery information | Fully assembled |
| Material information | Fastening material: Steel galvanized. Grille: Steel, galvanized or powder-coated; Frame: Aluminum, anodized |
| Grille color [FA] | hot-galvanized, black, yellow |
| Type | Suspension field |
| Type - frame profile | 22.5x45 |
| Weight [kg] | 0 |
