Bosch Rexroth 3842993764

STRUT PROFILE 45X90X90L 4N Q&E

MPN: 3842993764
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842993764?

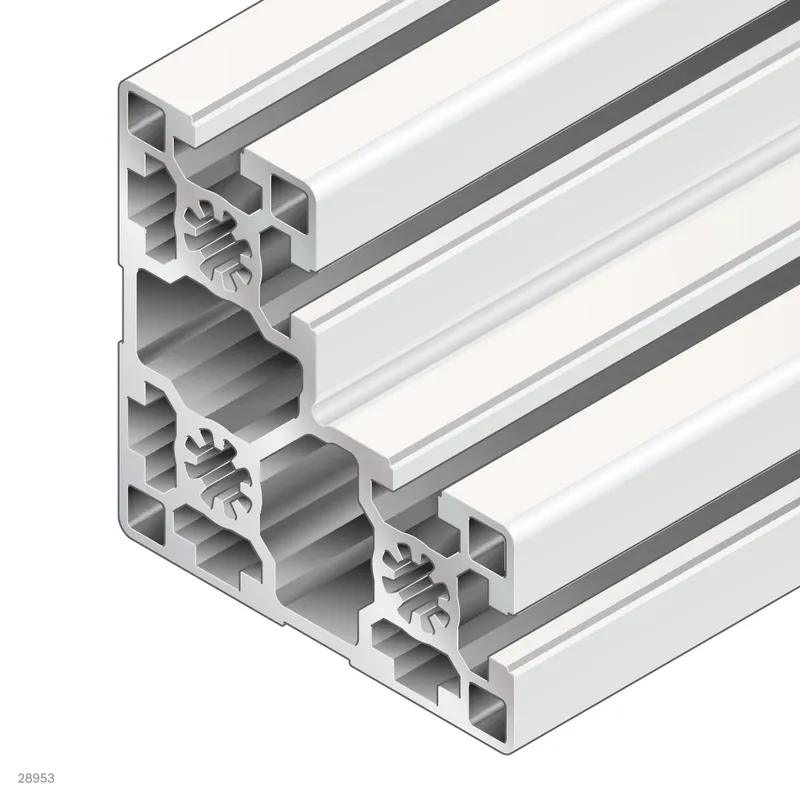

Strut profile 45x90x90L 4N Q&E

Minimum profile lengths for profile finishing: see table

Specifications

Condition on delivery	Profile finishing
Cross-section	45x90x90L 4N
Modular dimension [mm]	45
Profile slot	10
Dimensions	45x90x90
Open slots	4.0
Profile type	4N
Color	Natural
Length max [L max] [mm]	6070
Length min [L min] [mm]	50
Packaging unit	1
Customized profile finishing	DI / DIS / MT / MTS / MI / MIS / DG
Standard profile finishing	M12 / D9,8 / D17 / DB17(A,B,C,F,G,H)
Standard profile finishing minimum length	Observe minimum length
Mass [m] [kg]	6
Area moment of inertia in x-direction [lx] [cm⁴]	160.8
Area moment of inertia in y-direction [ly] [cm⁴]	160.8
Profile surface [A] [cm²]	22.1
Moment of resistance in the x-direction [Wx] [cm³]	30.6
Moment of resistance in the y-direction [Wy] [cm³]	30.6
Torsional moment of inertia [It] [cm⁴]	65.3
Moment of torsion resistance [Wt] [cm³]	17.2
Notice	DGmax = 45°, Lmin1 / Lmin2 = 456/612mm; Standard profile finishing at specified slots
Material	Aluminum, anodized
Individual profile finishing [L max i] [mm]	5400
Standard profile finishing [L max] [mm]	6000
Recommended accessories	Cover cap 45x90x90, black; Cover cap 45x90x90, signal gray; Cover cap with hole 45x90x90, black; Cover cap with hole 45x90x90, signal gray
Weight [kg]	0
