Bosch Rexroth 3842993259

SECTION PROFILE SP 2/B-100

MPN: 3842993259
Category: Components of belt and toothed belt conveyor units

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842993259?

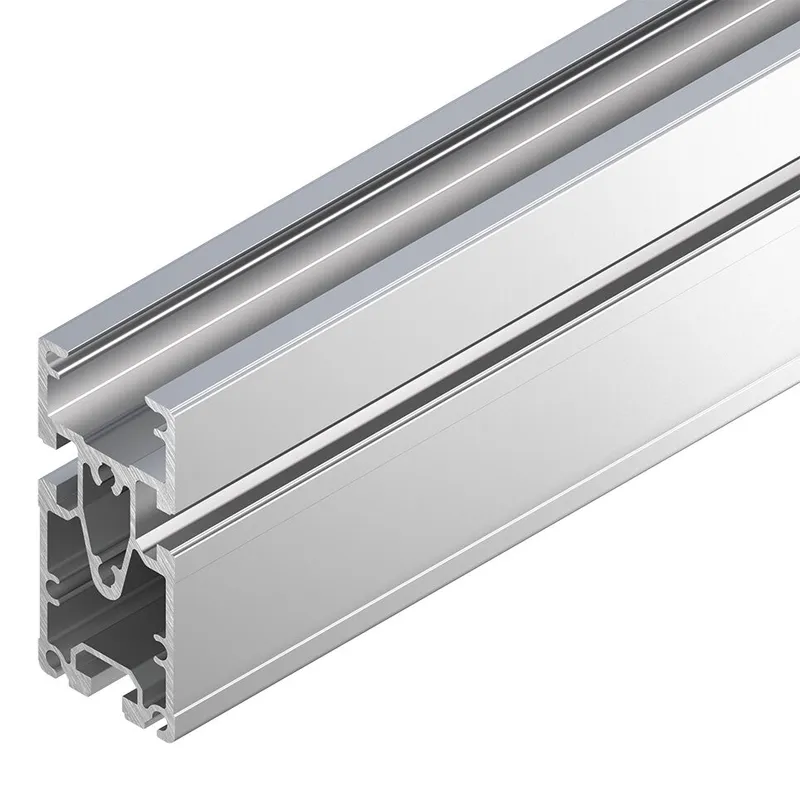

Section Profile SP 2/B-100

Used for self-construction of conveyor units with a height of 100 mm and the belt conveyor medium

For use in conjunction with all AS 2/B-... drive modules, UM 2/B return units and FP 2/B guide profiles

Longitudinal grooves for easy mounting

For use in assembly systems with mixed conveyor media, e.g. belts and flat top chains

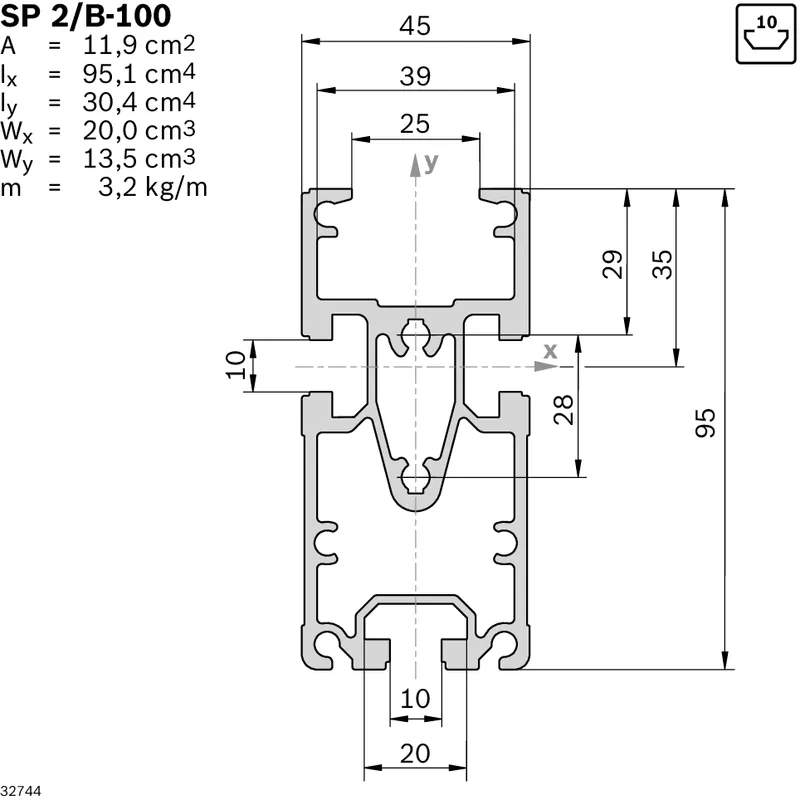

Specifications

Condition on delivery	Variable length
Profile slot	10
Color	Natural
Length max [L max] [mm]	6000
Length min [L min] [mm]	60
Mass [m] [kg]	3.2
Area moment of inertia in x-direction [lx] [cm⁴]	95.1
Area moment of inertia in y-direction [ly] [cm⁴]	30.4
Profile surface [A] [cm²]	11.9
Moment of resistance in the x-direction [Wx] [cm³]	20
Moment of resistance in the y-direction [Wy] [cm³]	13.5
Material	Aluminum, anodized
Recommended accessories	Cross Connector QV 2; Roller elements
Weight [kg]	0
