Bosch Rexroth 3842993228
STRUT PROFILE 50X150L D17V/D17V
- MPN
- 3842993228
- Category
- Strut profile
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842993228?

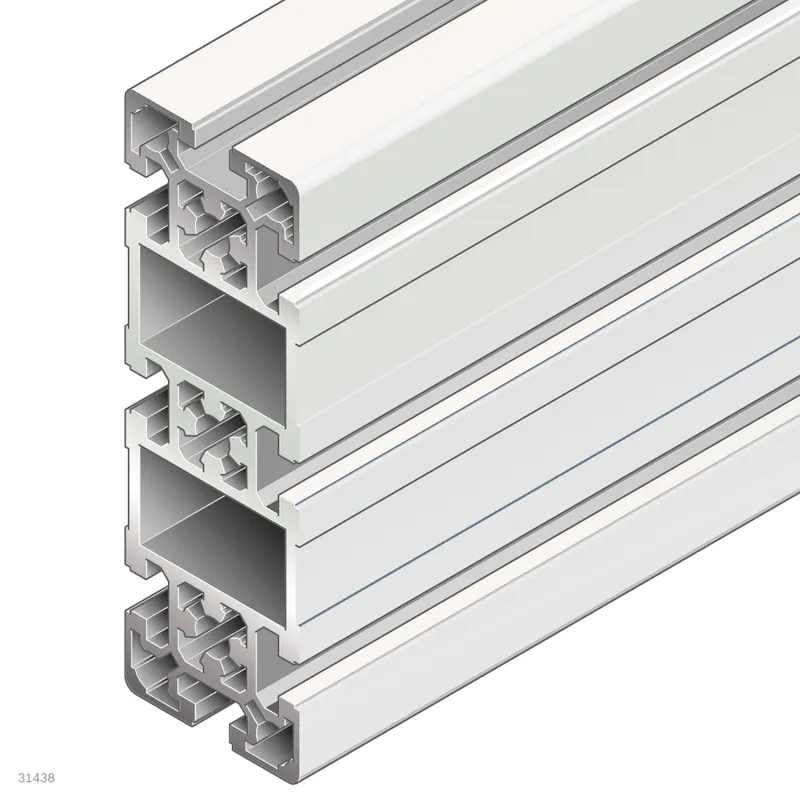

Strut profile 50x150L D17V/D17V

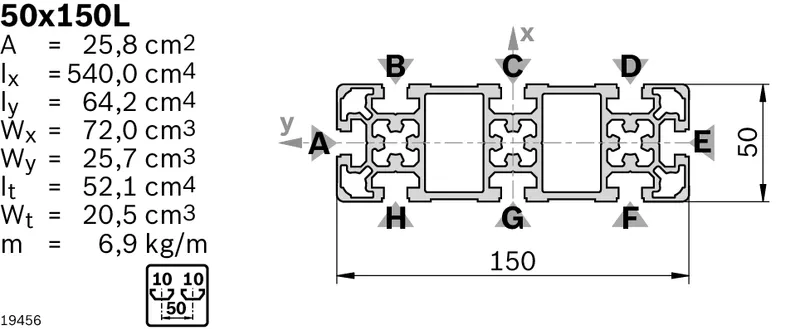

Specifications
Specifications
| Condition on delivery | Profile finishing |
| Cross-section | 50x150L |
| Modular dimension [mm] | 50 |
| Profile slot | 10 |
| Dimensions | 50x150 |
| Open slots | 8.0 |
| Profile type | Standard |
| Color | Natural |
| Length max [L max] [mm] | 6000 |
| Length min [L min] [mm] | 90 |
| Packaging unit | 1 |
| Mass [m] [kg] | 6.9 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 540 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 64.2 |
| Profile surface [A] [cm²] | 25.8 |
| Moment of resistance in the x-direction [Wx] [cm³] | 72 |
| Moment of resistance in the y-direction [Wy] [cm³] | 25.7 |
| Torsional moment of inertia [It] [cm⁴] | 52.1 |
| Moment of torsion resistance [Wt] [cm³] | 20.5 |
| Material | Aluminum, anodized |
| Recommended accessories | Cover cap 50x150, signal gray; Mounting hole plug 50x150, black |
| Weight [kg] | 0 |
3842993228: frequently asked questions
When can 3842993228 be shipped?
3842993228 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842993228 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842993228 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842993228, subject to availability and destination.
