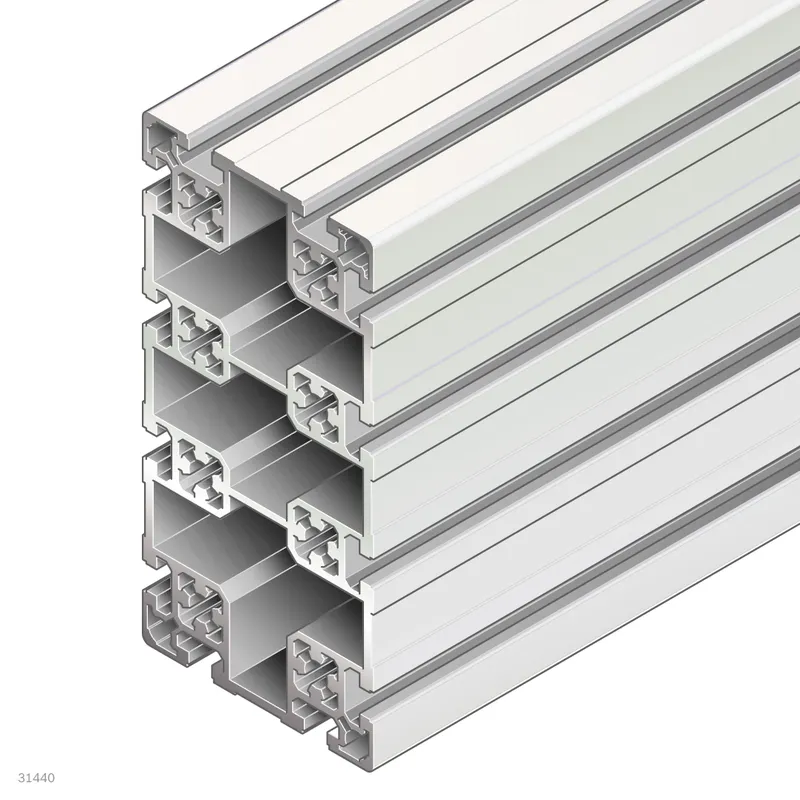

Bosch Rexroth 3842993227
STRUT PROFILE 100X200L D17V/D17V
- MPN
- 3842993227
- Category
- Strut profile
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842993227?
Strut profile 100x200L D17V/D17V
Specifications
Specifications
| Condition on delivery | Profile finishing |

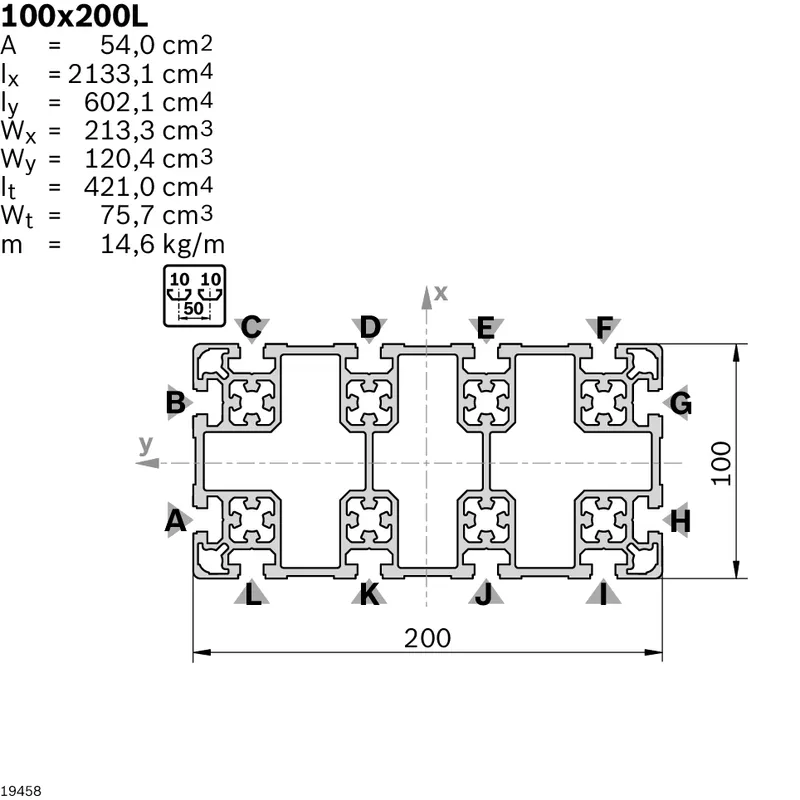

| Cross-section | 100x200L |
| Modular dimension [mm] | 50 |
| Profile slot | 10 |
| Dimensions | 100x200 |
| Open slots | 12.0 |
| Profile type | Standard |
| Color | Natural |
| Length max [L max] [mm] | 6000 |
| Length min [L min] [mm] | 90 |
| Packaging unit | 1 |
| Mass [m] [kg] | 14.6 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 2133.1 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 602.1 |
| Profile surface [A] [cm²] | 54 |
| Moment of resistance in the x-direction [Wx] [cm³] | 213.3 |
| Moment of resistance in the y-direction [Wy] [cm³] | 120.4 |
| Torsional moment of inertia [It] [cm⁴] | 421.0 |
| Moment of torsion resistance [Wt] [cm³] | 75.7 |
| Material | Aluminum, anodized |
| Recommended accessories | Cover cap 100x100, black; Cover cap 100x100, signal gray |
| Weight [kg] | 0 |
